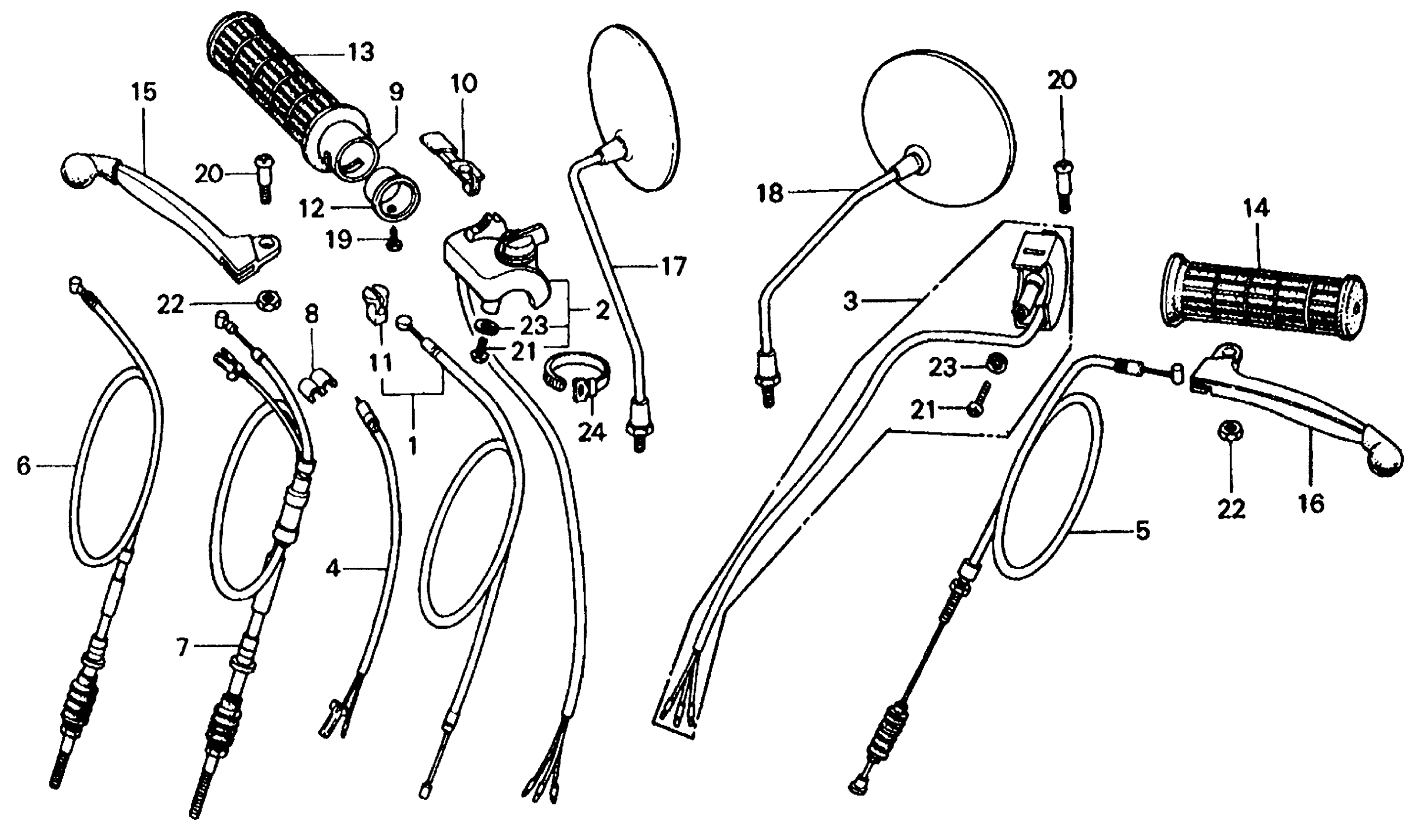

Honda CT70K3A MOTORCYCLE, JPN, VIN# CT70-2300001 TO CT70-2332907 HANDLE LEVER + SWITCH + CABLE K3 Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-098-970

Unavailable

2

SWITCH ASSY., DIMMER STOP (NOT AVAILABLE)

35250-098-951

Unavailable

3

SWITCH ASSY., TURN SIGNAL & HORN (NOT AVAILABLE)

35300-098-951

Unavailable

4

SWITCH, FR. STOP (TOYO) (NOT AVAILABLE) | Use from Frame SN 2320002

35340-098-952

Unavailable

5

CABLE, RR. BRAKE | Use up to Frame SN 2320001

43460-098-970

Unavailable

6

CABLE, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 2320002

45450-098-950

Unavailable

7

CABLE, FR. BRAKE | Use up to Frame SN 2320001

45450-098-970

Unavailable

8

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

9

PIPE, THROTTLE GRIP

53141-098-000

$17.71

10

HINGE, THROTTLE CABLE (NOT AVAILABLE)

53161-098-000

Unavailable

11

HOLDER, THROTTLE CABLE (OUTER)

53162-098-010

$6.30

12

STOPPER, THROTTLE GRIP (NOT AVAILABLE)

53163-098-000

Unavailable

13

GRIP, R. HANDLEBAR

53165-120-000

$16.86

14

GRIP, L. HANDLEBAR

53166-120-000

$16.86

15

LEVER, R. HANDLEBAR This part replaces 53175-098-770.

53175-147-010

Unavailable

15

LEVER, R. HANDLEBAR

53175-147-010

Unavailable

16

LEVER, L. HANDLEBAR (COO) | Use up to Frame SN 2320001 This part replaces 53178-GF0-000.

53178-GGL-305

$14.62

16

LEVER, L. HANDLEBAR (COO) | Use up to Frame SN 2320001 This part replaces 53178-GR2-000.

53178-GGL-305

$14.62

16

LEVER, L. HANDLEBAR (COO) | Use up to Frame SN 2320001 This part replaces 53178-098-770.

53178-GGL-305

$14.62

16

LEVER, L. HANDLEBAR (COO) | Use up to Frame SN 2320001 This part replaces 53178-147-000.

53178-GGL-305

$14.62

16

LEVER, L. HANDLEBAR (COO) | Use up to Frame SN 2320001 This part replaces 53178-147-010.

53178-GGL-305

$14.62

16

LEVER, L. HANDLEBAR (COO) | Use up to Frame SN 2320001 This part replaces 53178-155-000.

53178-GGL-305

$14.62

16

LEVER, L. HANDLEBAR (COO) | Use up to Frame SN 2320001 This part replaces 53178-187-000.

53178-GGL-305

$14.62

17

MIRROR ASSY., R. BACK This part replaces 88110-126-750.

88110-088-950

Unavailable

17

MIRROR ASSY., R. BACK This part replaces 88110-126-751.

88110-088-950

Unavailable

17

MIRROR ASSY., R. BACK This part replaces 88110-178-000.

88110-088-950

Unavailable

18

MIRROR ASSY., L. BACK

88120-088-950

Unavailable

18

MIRROR ASSY., L. BACK This part replaces 88120-126-750.

88120-088-950

Unavailable

18

MIRROR ASSY., L. BACK This part replaces 88120-126-751.

88120-088-950

Unavailable

18

MIRROR ASSY., L. BACK This part replaces 88120-147-671.

88120-088-950

Unavailable

18

MIRROR ASSY., L. BACK This part replaces 88120-178-000.

88120-088-950

Unavailable

19

SCREW, THROTTLE GRIP MOUNT This part replaces 90101-063-000.

90101-063-505

$5.04

20

SCREW, L. HANDLEBAR LEVER PIVOT | Use up to Frame SN 2320001 This part replaces 90114-063-000.

90116-GF8-000

$3.58

20

SCREW, L. HANDLEBAR LEVER PIVOT | Use from Frame SN 2320002 This part replaces 90114-063-000.

90116-GF8-000

$3.58

20

SCREW, L. HANDLEBAR LEVER PIVOT | Use up to Frame SN 2320001

90116-GF8-000

$3.58

21

SCREW, PAN (3X12)

93500-03012-0A

$1.49

22

NUT, HEX. (5MM) | Use up to Frame SN 2320001

94001-05000-0S

$2.74

22

NUT, HEX. (5MM) | Use from Frame SN 2320002

94001-05000-0S

$2.74

23

WASHER, SPRING (3MM)

94111-03000

$1.49

24

BAND B1, CABLE

95014-62100

$1.64
