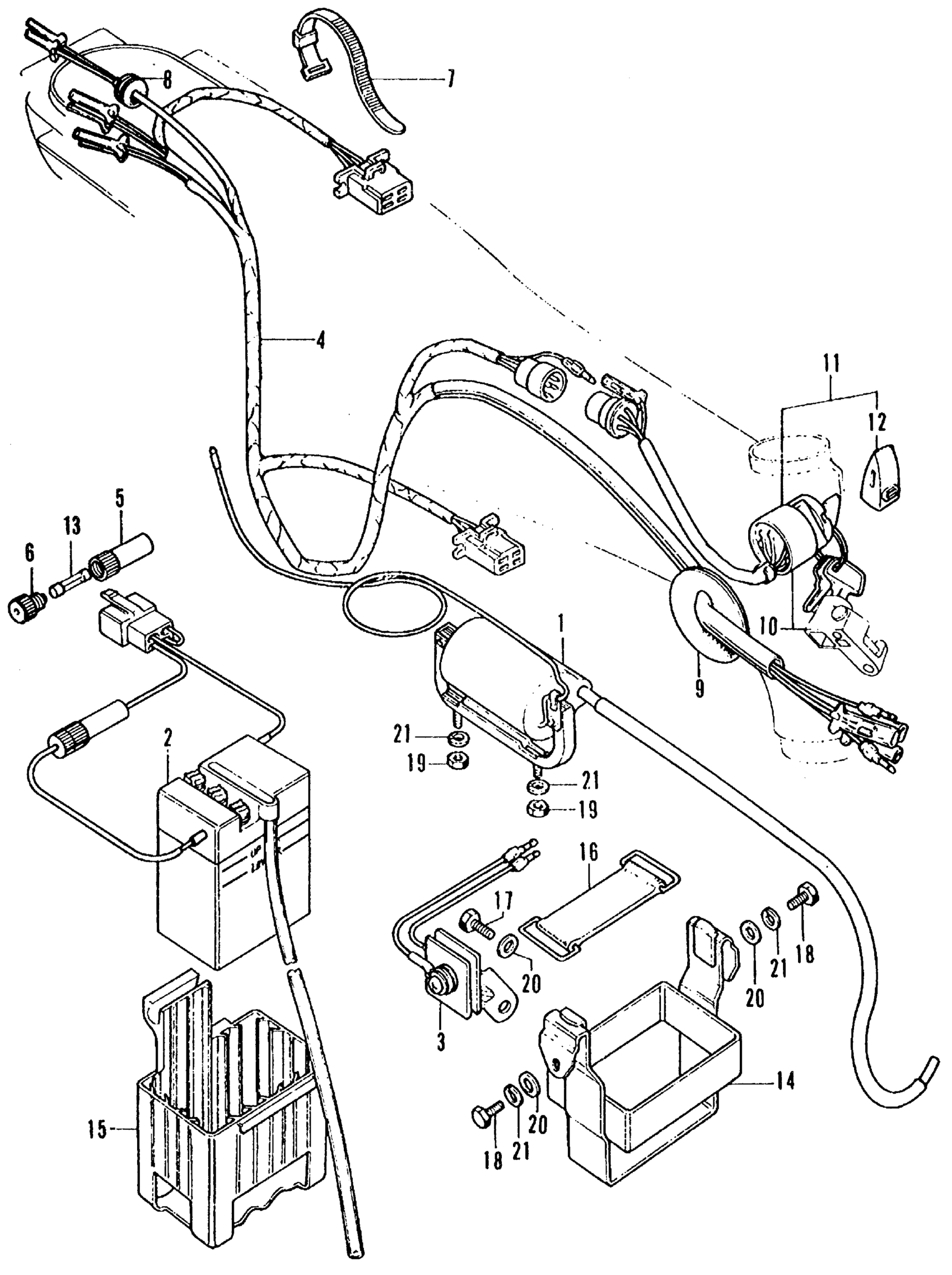

Honda CT70K1A MOTORCYCLE, JPN, VIN# CT70-2000001 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

COIL, IGNITION This part replaces 30500-098-671.

30530-126-921

Unavailable

1

COIL, IGNITION

30530-126-921

Unavailable

2

BATTERY (6N2) This part replaces 31500-098-971.

31500-147-505AH

Unavailable

2

BATTERY (6N2) This part replaces 31500-147-671.

31500-147-505AH

Unavailable

2

BATTERY (6N2) This part replaces 31500-147-672.

31500-147-505AH

Unavailable

3

RECTIFIER ASSY. This part replaces 31700-098-016.

31700-098-305

Unavailable

3

RECTIFIER ASSY.

31700-098-305

Unavailable

3

RECTIFIER ASSY. This part replaces 31700-098-921.

31700-098-305

Unavailable

3

RECTIFIER ASSY. This part replaces 31700-118-771.

31700-098-305

Unavailable

4

WIRE HARNESS (NOT AVAILABLE)

32100-098-950

Unavailable

5

CONNECTOR A, FUSE (YUASA) This part replaces 32106-041-000.

32106-437-300

Unavailable

5

CONNECTOR A, FUSE (YUASA) This part replaces 32106-041-008.

32106-437-300

Unavailable

5

CONNECTOR A, FUSE (YUASA)

32106-437-300

Unavailable

6

CONNECTOR B, FUSE (YUASA) This part replaces 32112-041-000.

32112-041-008

Unavailable

6

CONNECTOR B, FUSE (YUASA)

32112-041-008

Unavailable

7

BAND B2, CABLE HARNESS This part replaces 32161-286-000.

95014-62200

$2.11

7

BAND B2, CABLE HARNESS

95014-62200

$2.11

8

GROMMET, WIRE HARNESS

32983-011-000

$3.31

9

GROMMET, WIRE HARNESS

32984-098-000

$5.73

10

LOCK SET (NOT AVAILABLE)

35010-098-950

Unavailable

10

LOCK SET (NOT AVAILABLE) This part replaces 35012-098-971.

35010-098-950

Unavailable

11

SWITCH ASSY., COMBINATION

35100-098-951

$88.70

11

SWITCH ASSY., COMBINATION This part replaces 35100-098-971.

35100-098-951

$88.70

12

CAP, KEY

35112-098-670

Unavailable

13

FUSE A (7A) This part replaces 38201-001-000.

98200-10700

$1.49

13

FUSE A (7A)

98200-10700

$1.49

14

BOX, BATTERY (NOT AVAILABLE)

50325-098-010

Unavailable

15

RUBBER, BATTERY

50326-098-000

Unavailable

16

BAND, BATTERY

50382-098-000

Unavailable

17

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

17

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

17

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

18

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

18

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

19

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

WASHER, SPRING (6MM)

94111-06000

$1.49
