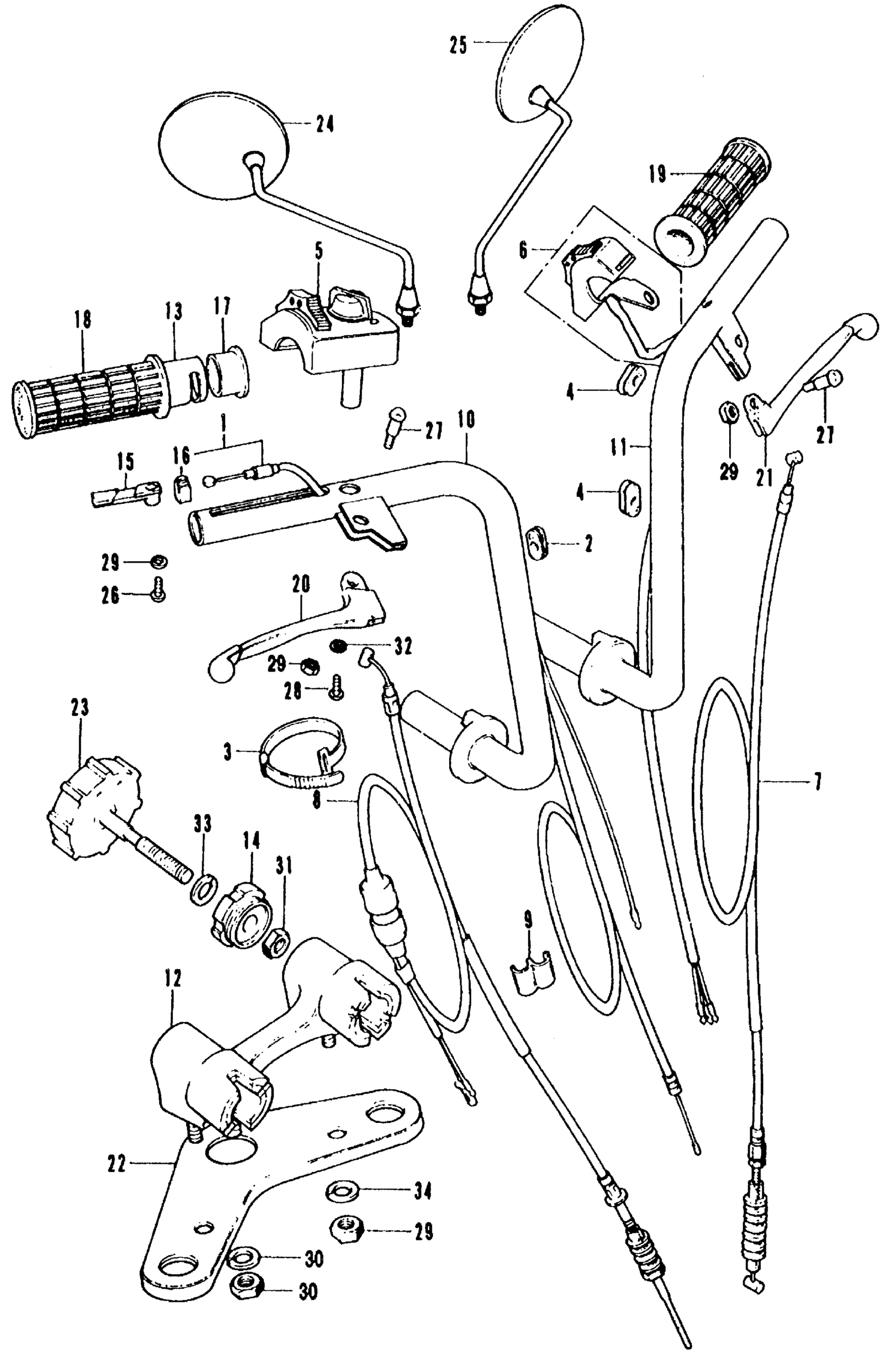

Honda CT70K1A MOTORCYCLE, JPN, VIN# CT70-2000001 HANDLEBAR Diagram

CABLE, THROTTLE

17910-098-970

Unavailable

GROMMET, THROTTLE CABLE

17911-023-000

$4.12

BAND B1, CABLE This part replaces 32161-098-000.

95014-62100

$1.64

BAND B1, CABLE

95014-62100

$1.64

GROMMET, THROTTLE CABLE

17911-023-000

$4.12

GROMMET, THROTTLE CABLE This part replaces 32983-126-000.

17911-023-000

$4.12

SWITCH ASSY., DIMMER STOP (NOT AVAILABLE)

35250-098-951

Unavailable

SWITCH ASSY., TURN SIGNAL & HORN (NOT AVAILABLE)

35300-098-951

Unavailable

CABLE, RR. BRAKE

43460-098-970

Unavailable

CABLE, FR. BRAKE

45450-098-970

Unavailable

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

HANDLEBAR, R. (NOT AVAILABLE) | Use up to Frame SN 2105000 This part replaces 53110-098-951.

53110-098-953

Unavailable

HANDLEBAR, R. (NOT AVAILABLE) | Use from Frame SN 2105001 This part replaces 53110-098-952.

53110-098-953

Unavailable

HANDLEBAR, R. (NOT AVAILABLE) | Use from Frame SN 2105001

53110-098-953

Unavailable

HANDLEBAR, L. (NOT AVAILABLE) | Use up to Frame SN 2105000 This part replaces 53120-098-951.

53120-098-952

Unavailable

HANDLEBAR, L. (NOT AVAILABLE) | Use from Frame SN 2105001

53120-098-952

Unavailable

HOLDER, HANDLEBAR (NOT AVAILABLE)

53131-098-970

Unavailable

PIPE, THROTTLE GRIP

53141-098-000

$17.71

NUT, HANDLE HOLDER

53143-045-000

Unavailable

HINGE, THROTTLE CABLE

53161-044-000

$8.88

HOLDER, THROTTLE CABLE (OUTER)

53162-098-010

$6.30

STOPPER, THROTTLE GRIP

53163-044-000

$4.95

GRIP, R. HANDLEBAR

53165-120-000

$16.86

GRIP, L. HANDLEBAR

53166-120-000

$16.86

LEVER, R. HANDLEBAR This part replaces 53175-098-770.

53175-147-010

Unavailable

LEVER, R. HANDLEBAR

53175-147-010

Unavailable

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GF0-000.

53178-GGL-305

$14.62

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GR2-000.

53178-GGL-305

$14.62

LEVER, L. HANDLEBAR (COO) This part replaces 53178-098-770.

53178-GGL-305

$14.62

LEVER, L. HANDLEBAR (COO) This part replaces 53178-147-000.

53178-GGL-305

$14.62

LEVER, L. HANDLEBAR (COO) This part replaces 53178-147-010.

53178-GGL-305

$14.62

LEVER, L. HANDLEBAR (COO) This part replaces 53178-155-000.

53178-GGL-305

$14.62

LEVER, L. HANDLEBAR (COO) This part replaces 53178-187-000.

53178-GGL-305

$14.62

PLATE, FORK TOP BRIDGE *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

53231-098-970XW

Unavailable

KNOB, HANDLE HOLDER

53740-098-970

Unavailable

MIRROR ASSY., R. BACK | Use from Frame SN 2105001 This part replaces 88110-126-750.

88110-088-950

Unavailable

MIRROR ASSY., R. BACK | Use from Frame SN 2105001 This part replaces 88110-126-751.

88110-088-950

Unavailable

MIRROR ASSY., R. BACK | Use from Frame SN 2105001 This part replaces 88110-178-000.

88110-088-950

Unavailable

MIRROR ASSY., L. BACK | Use from Frame SN 2105001

88120-088-950

Unavailable

MIRROR ASSY., L. BACK | Use from Frame SN 2105001 This part replaces 88120-126-750.

88120-088-950

Unavailable

MIRROR ASSY., L. BACK | Use from Frame SN 2105001 This part replaces 88120-126-751.

88120-088-950

Unavailable

MIRROR ASSY., L. BACK | Use from Frame SN 2105001 This part replaces 88120-147-671.

88120-088-950

Unavailable

MIRROR ASSY., L. BACK | Use from Frame SN 2105001 This part replaces 88120-178-000.

88120-088-950

Unavailable

SCREW, THROTTLE GRIP MOUNT This part replaces 90101-063-000.

90101-063-505

$5.04

SCREW, L. HANDLEBAR LEVER PIVOT This part replaces 90114-063-000.

90116-GF8-000

$3.58

SCREW, L. HANDLEBAR LEVER PIVOT

90116-GF8-000

$3.58

SCREW, PAN (3X12)

93500-03012-0A

$1.49

NUT, HEX. (5MM)

94001-05000-0S

$2.74

NUT, HEX. (10MM)

94001-10000-0S

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

WASHER, SPRING (3MM)

94111-03000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49
