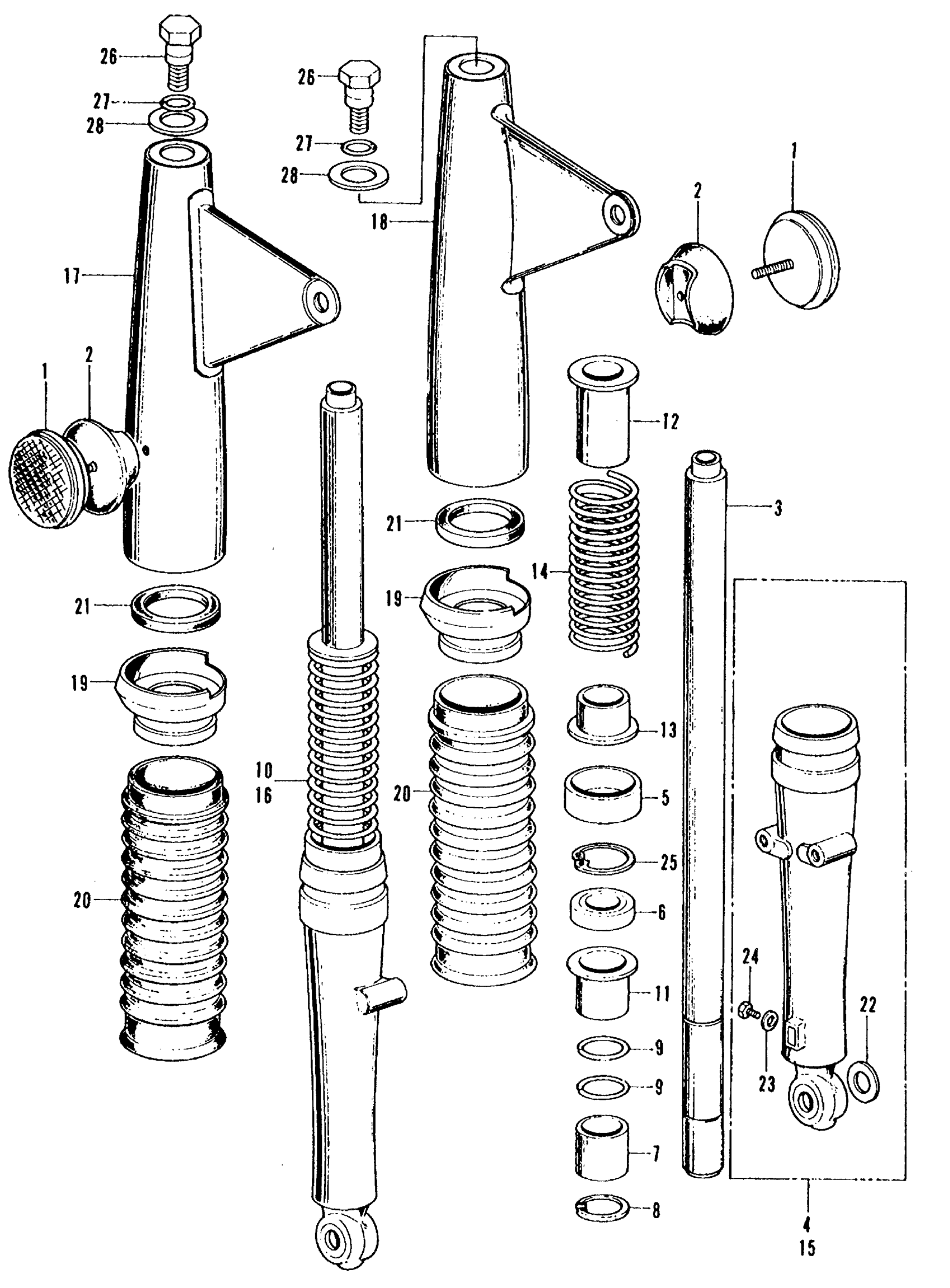

Honda CT70K1A MOTORCYCLE, JPN, VIN# CT70-2000001 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

2

BASE, FR. REFLECTOR

33744-098-970

Unavailable

3

PIPE, FR. FORK (NOT AVAILABLE) This part replaces 51410-098-970.

51410-098-972

Unavailable

3

PIPE, FR. FORK (NOT AVAILABLE)

51410-098-972

Unavailable

4

CASE, R. FR. FORK (LOWER) *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

51420-098-950ZB

Unavailable

5

SEAT, SPRING (LOWER) This part replaces 51424-061-000.

51424-061-505

Unavailable

6

OIL SEAL, FR. FORK

51432-051-000

$13.38

7

PISTON, FR. FORK

51442-051-010

Unavailable

8

RING B, SNAP (25MM) (NOT AVAILABLE) This part replaces 51444-031-000.

94580-25000

Unavailable

8

RING B, SNAP (25MM) (NOT AVAILABLE) This part replaces 51527-031-000.

94580-25000

Unavailable

9

RING, FR. FORK PISTON STOPPER (NOT AVAILABLE)

51446-031-000

Unavailable

10

FORK ASSY., R. FR. *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE) This part replaces 51450-098-950ZB.

51400-098-952ZA

Unavailable

11

GUIDE, FORK (25MM) This part replaces 51451-031-000.

94602-25001

Unavailable

11

GUIDE, FORK (25MM) This part replaces 51476-031-000.

94602-25001

Unavailable

12

GUIDE, FR. FORK SPRING (NOT AVAILABLE)

51475-061-010

Unavailable

13

GUIDE A, FR. FORK SPRING (NOT AVAILABLE)

51476-061-000

Unavailable

14

SPRING, FR. FORK (NOT AVAILABLE)

51501-098-970

Unavailable

15

CASE, L. FR. FORK (LOWER) *NH35M* (CLOUD SILVER METALLIC)

51520-098-950ZB

Unavailable

16

FORK ASSY., L. FR. *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE) This part replaces 51550-098-950ZB.

51500-098-952ZA

Unavailable

17

COVER, R. FR. FORK (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

51602-098-950XW

Unavailable

18

COVER, L. FR. FORK (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

51606-098-950XW

Unavailable

19

RIB, FR. FORK (NOT AVAILABLE)

51608-098-950

Unavailable

20

BOOT, FR. FORK

51611-098-950

$26.35

21

GASKET, FR. FORK RIB (NOT AVAILABLE)

51624-242-000

Unavailable

22

WASHER (12.5MM)

90528-229-000

$2.02

23

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

24

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

24

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

24

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

25

CIRCLIP (INNER) (35MM) (NOT AVAILABLE)

94536-35120

Unavailable

26

BOLT, FORK A

94605-10101

$5.21

27

WASHER, FORK BOLT (13MM) This part replaces 94606-13000.

94606-13001

$1.49

27

WASHER, FORK BOLT (13MM)

94606-13001

$1.49

28

O-RING (8.4X2.4)

94608-10000

$1.49
