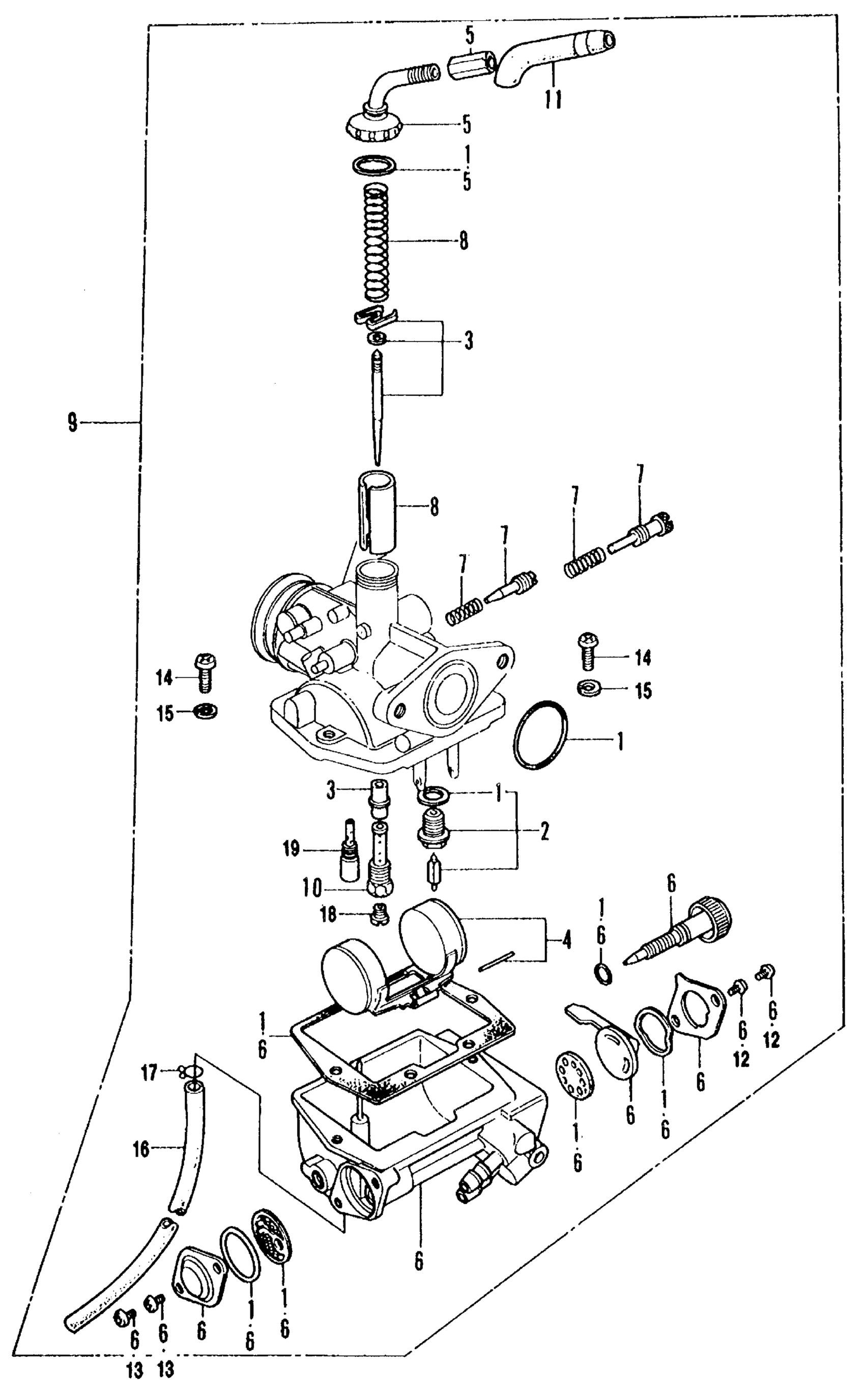

Honda CT70K1A MOTORCYCLE, JPN, VIN# CT70-2000001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-098-004.

16010-102-305

$29.10

1

GASKET SET

16010-102-305

$29.10

2

VALVE SET, FLOAT

16011-051-004

$14.73

2

VALVE SET, FLOAT This part replaces 16011-098-004.

16011-051-004

$14.73

2

VALVE SET, FLOAT This part replaces 16011-134-004.

16011-051-004

$14.73

3

NEEDLE SET, JET

16012-098-014

Unavailable

4

FLOAT SET This part replaces 16013-046-004.

16013-116-700

$25.68

4

FLOAT SET

16013-116-700

$25.68

4

FLOAT SET This part replaces 16013-116-704.

16013-116-700

$25.68

5

TOP SET (NOT AVAILABLE)

16014-918-004

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE) This part replaces 16015-098-004.

16015-098-730

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-098-730

Unavailable

7

SCREW SET A

16016-046-004

Unavailable

8

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-098-670

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-098-730.

16100-098-731

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE)

16100-098-731

Unavailable

10

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-098-730

Unavailable

11

CAP, RUBBER (NOT AVAILABLE)

16194-045-741

Unavailable

12

SCREW, PAN (3X5)

93500-03005-0A

$0.75

13

SCREW, PAN (3X6)

93500-03006-0A

$0.83

14

SCREW, PAN (4X12)

93500-04012-0A

$0.75

15

WASHER, SPRING (4MM)

94111-04000

$0.97

16

BULK HOSE, FUEL (3.5X3000) (3.5X240)

95001-35003-60M

$18.72

17

CLIP, TUBE (B7)

95002-02070

$1.59

18

JET, MAIN (#58)

99114-076-0580

Unavailable

19

JET, SLOW (#35) This part replaces 99124-098-0350.

99124-217-0351

Unavailable

19

JET, SLOW (#35)

99124-217-0351

Unavailable
