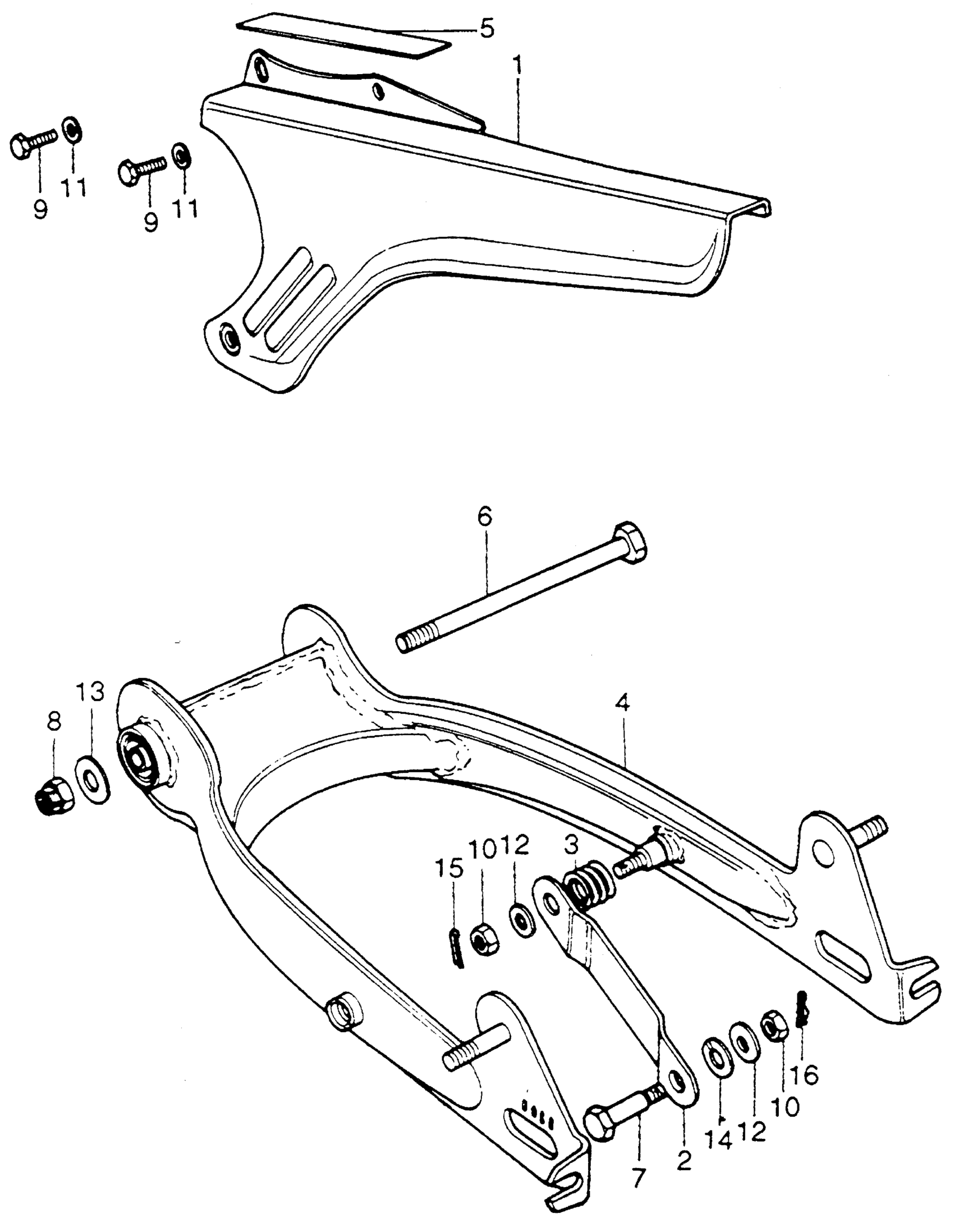

Honda CT70HK1A MOTORCYCLE, JPN, VIN# CT70H-2000001 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *NH1* (BLACK) This part replaces 40510-098-000Z.

40510-098-000ZC

Unavailable

1

CASE, DRIVE CHAIN *NH1* (BLACK)

40510-098-000ZC

Unavailable

2

ARM, RR. BRAKE STOPPER This part replaces 43431-098-000.

43431-124-740

Unavailable

2

ARM, RR. BRAKE STOPPER

43431-124-740

Unavailable

3

SPRING, STOPPER ARM

43434-250-000

$2.00

4

SWINGARM *R4C* This part replaces 52100-098-020CM.

52100-098-020ZD

Unavailable

4

SWINGARM *Y1CS* (CANDY YELLOW SPECIAL) (NOT AVAILABLE)

52100-098-020LS

Unavailable

5

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-098-970

Unavailable

6

BOLT, SWINGARM PIVOT

90121-098-970

Unavailable

7

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

7

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

8

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

9

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

9

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

10

NUT, HEX. (8MM)

94001-08000-0S

$1.49

11

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

11

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

11

WASHER, PLAIN (6MM)

94101-06800

$1.49

12

WASHER, PLAIN (8MM)

94101-08000

$1.49

13

WASHER, PLAIN (10MM)

94101-10000

$1.49

14

WASHER, SPRING (8MM)

94111-10000

$1.49

15

PIN, COTTER (2.0X15)

94201-20150

$1.49

16

PIN, LOCK (8MM)

94251-08000

$1.49
