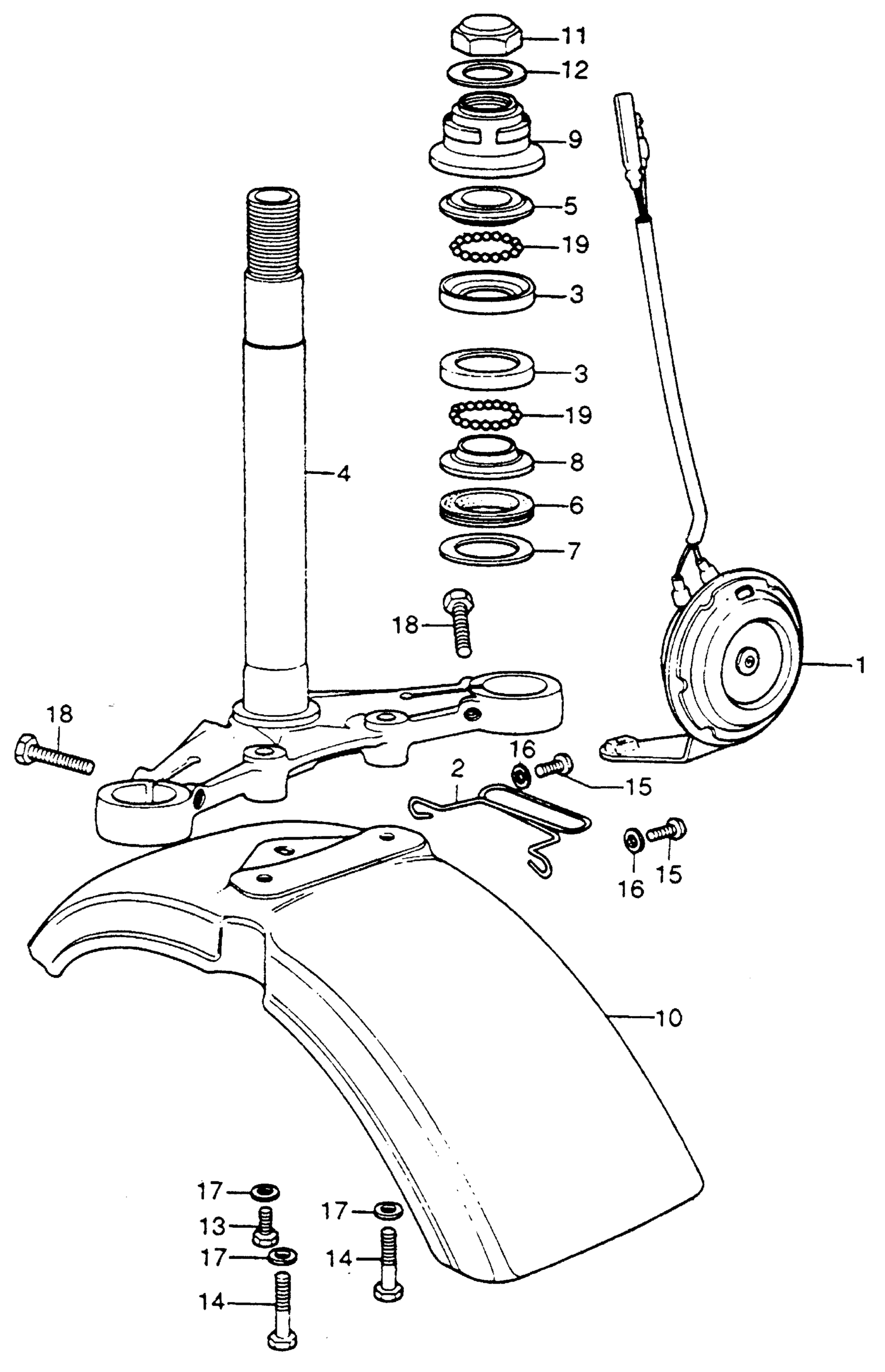

Honda CT70HK1A MOTORCYCLE, JPN, VIN# CT70H-2000001 STEERING STEM + FRONT FENDER + HORN Diagram

#

Description
Price

1

HORN ASSY. This part replaces 38100-098-671.

38100-124-721

Unavailable

1

HORN ASSY.

38100-124-721

Unavailable

2

CLIP, FR. BRAKE CABLE

45465-098-670

$4.61

3

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$11.13

3

RACE, STEERING TOP BALL

50301-041-010

$11.13

3

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$11.13

4

STEM, STEERING *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

53200-098-970CM

Unavailable

4

STEM, STEERING

53200-098-970Z

Unavailable

5

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$9.96

5

RACE, STEERING CONE (UPPER)

53211-028-010

$9.96

5

RACE, STEERING TOP CONE This part replaces 53211-028-305.

53211-028-010

$9.96

6

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.36

7

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$2.74

8

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$9.63

8

RACE, STEERING CONE (LOWER)

53212-030-010

$9.63

8

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$9.63

8

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$9.63

9

THREAD, STEERING HEAD TOP

53220-098-670

$15.11

10

FENDER, FR. *MRCR2* (CHROME PLATING)

61100-098-970XW

Unavailable

11

NUT, STEERING STEM This part replaces 90304-011-000.

90304-159-000

$6.54

11

NUT, STEERING STEM

90304-159-000

$6.54

11

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$6.54

12

WASHER, STEERING STEM This part replaces 90503-011-000.

90503-051-870

$2.58

12

WASHER, STEERING STEM

90503-051-870

$2.58

13

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.25

13

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.25

13

BOLT, HEX. (6X8)

92101-06008-0A

$1.25

14

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.57

14

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.57

14

BOLT, HEX. (6X32)

92101-06032-0A

$1.57

15

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

16

WASHER, PLAIN (5MM)

94101-05000

$0.90

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

17

WASHER, PLAIN (6MM)

94101-06800

Unavailable

18

BOLT, HEX. (8X28) (SOURCE: VINTAGE PARTS INC.) This part replaces 95100-08028.

95100-08028-00

Unavailable

18

BOLT, HEX. (8X28) (SOURCE: VINTAGE PARTS INC.)

95100-08028-00

Unavailable

19

BALL, STEEL (#6) (3/16)

96211-06000

$0.46
