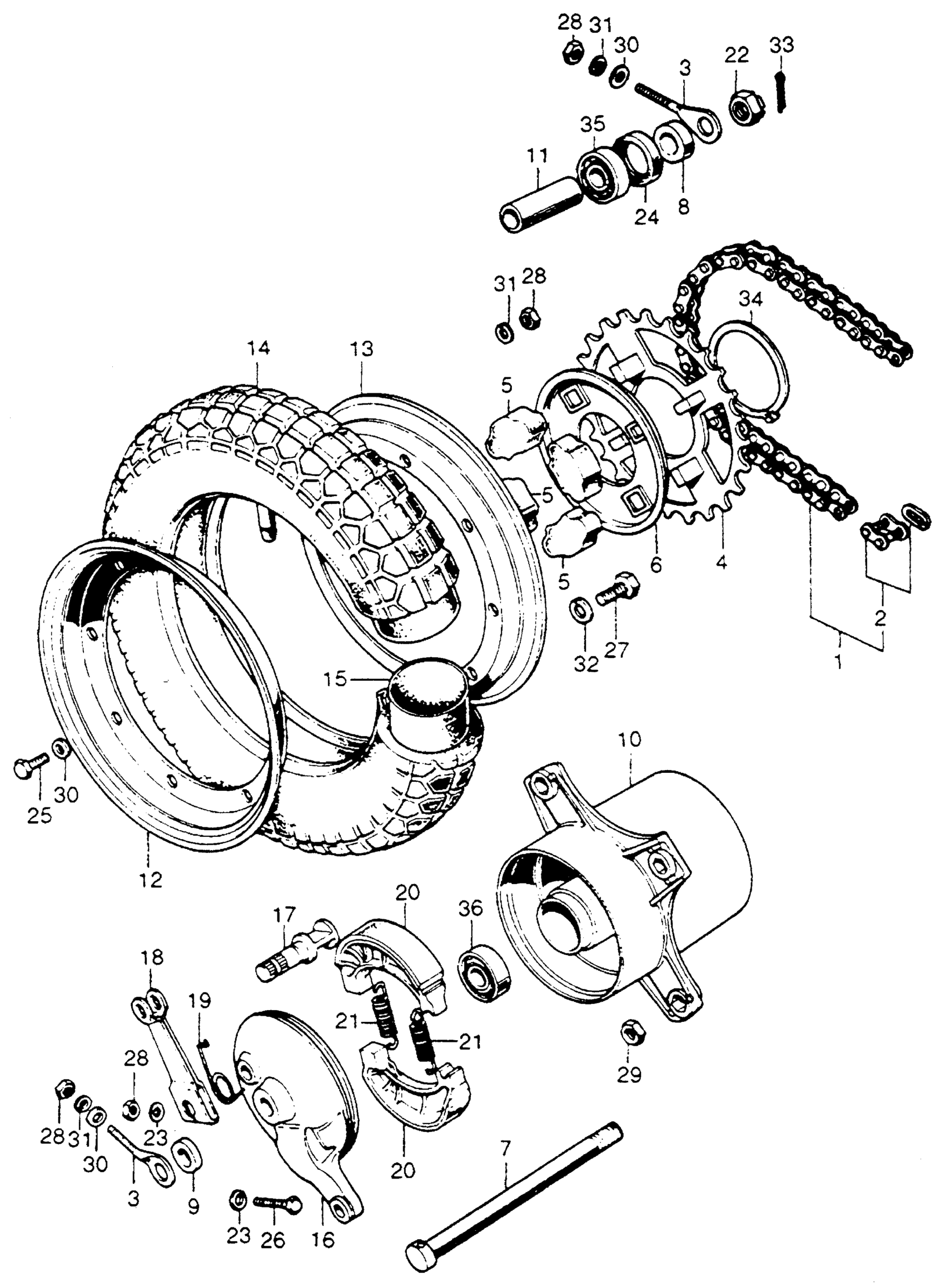

Honda CT70HK1A MOTORCYCLE, JPN, VIN# CT70H-2000001 REAR WHEEL Diagram

#

Description
Price

1

CHAIN, DRIVE (92L)

405W3-179-505

Unavailable

1

CHAIN, DRIVE (92L) This part replaces 40530-098-771.

405W3-179-505

Unavailable

1

CHAIN, DRIVE (92L) This part replaces 40530-098-772.

405W3-179-505

Unavailable

2

MASTER LINK (DAIDO) This part replaces 40531-035-005.

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-045-671.

40531-098-003

$3.74

2

MASTER LINK (DAIDO)

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-098-005.

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-120-003.

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-153-003.

40531-098-003

$3.74

3

ADJUSTER S, R. CHAIN This part replaces 40543-063-000.

95014-10010

$4.53

3

ADJUSTER S, R. CHAIN

95014-10010

$4.53

4

SPROCKET, FINAL DRIVEN (45T) (NOT AVAILABLE) This part replaces 41201-061-840.

41201-126-930

Unavailable

4

SPROCKET, FINAL DRIVEN (45T) (NOT AVAILABLE)

41201-126-930

Unavailable

5

DAMPER, RR. WHEEL

41241-051-000

$7.31

6

COVER, RR. WHEEL DAMPER

41245-051-000

$4.79

7

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-098-000

Unavailable

8

COLLAR, RR. WHEEL SIDE

42304-098-000

$6.14

9

COLLAR, RR. BRAKE PANEL SIDE

42313-098-000

$6.39

10

HUB, RR. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42601-098-010AU.

42601-098-010ZB

Unavailable

10

HUB, RR. WHEEL *NH35M* (CLOUD SILVER METALLIC)

42601-098-010ZB

Unavailable

11

COLLAR, RR. AXLE DISTANCE

42620-098-000

Unavailable

12

RIM, R. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC) This part replaces 42701-098-000AU.

42701-098-853ZA

Unavailable

12

RIM, R. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC) This part replaces 42701-098-851ZA.

42701-098-853ZA

Unavailable

12

RIM, R. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC)

42701-098-853ZA

Unavailable

12

RIM, R. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC) This part replaces 42701-098-854ZA.

42701-098-853ZA

Unavailable

13

RIM, L. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC) This part replaces 42702-098-000AU.

42702-098-853ZA

Unavailable

13

RIM, L. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC) This part replaces 42702-098-851ZA.

42702-098-853ZA

Unavailable

13

RIM, L. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC)

42702-098-853ZA

Unavailable

14

TIRE (4.00-10) (BS) (NOT AVAILABLE)

42711-098-671

Unavailable

14

TIRE (4.00-10) (NITTO) This part replaces 42711-098-672.

42711-098-673

$89.11

14

TIRE (4.00-10) (NITTO)

42711-098-673

$89.11

15

TUBE, TIRE (3.50-10) (INOUE) This part replaces 42712-GC8-003.

42712-GC8-005

Unavailable

15

TUBE, TIRE (3.50-10) (INOUE) This part replaces 42712-GC8-004.

42712-GC8-005

Unavailable

15

TUBE, TIRE (3.50-10) (INOUE)

42712-GC8-005

Unavailable

15

TUBE, TIRE (3.50-10) (INOUE) This part replaces 42712-GV4-904.

42712-GC8-005

Unavailable

15

TUBE, WHEEL (3.50-10) (BS) This part replaces 42712-098-000.

42712-098-691

Unavailable

15

TUBE, WHEEL (3.50-10) (BS) This part replaces 42712-098-003.

42712-098-691

Unavailable

15

TUBE, WHEEL (3.50-10) (BS)

42712-098-691

Unavailable

16

PANEL, RR. BRAKE This part replaces 43100-028-020.

43100-098-950

Unavailable

16

PANEL, RR. BRAKE

43100-098-950

Unavailable

17

CAM, RR. BRAKE

43141-098-000

Unavailable

18

ARM, RR. BRAKE

43410-098-000

Unavailable

19

SPRING, RR. BRAKE ARM RETURN (NOT AVAILABLE)

43413-098-670

Unavailable

20

SHOE, BRAKE (N/A: USE P/N 451A0-001-670)

45120-001-010

Unavailable

21

SPRING, BRAKE SHOE

45133-028-000

$2.03

22

NUT, FR. AXLE

90305-439-930

$5.90

22

NUT, FR. AXLE This part replaces 90306-098-000.

90305-439-930

$5.90

23

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

24

OIL SEAL (26X37X6) This part replaces 90753-051-000.

90753-051-003

$7.66

24

OIL SEAL (26X37X6)

90753-051-003

$7.66

24

OIL SEAL (26X37X6) This part replaces 90753-051-005.

90753-051-003

$7.66

25

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

26

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

26

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

26

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

27

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

27

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

28

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM)

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (8MM)

94001-08000-0S

$1.49

30

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

30

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

30

WASHER, PLAIN (6MM)

94101-06800

$1.49

31

WASHER, SPRING (6MM)

94111-06000

$1.49

32

WASHER, SPRING (8MM)

94111-08000

$1.49

33

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

33

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

33

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

33

PIN, COTTER (3.0X45)

94201-30450

$1.49

34

CIRCLIP (OUTER) (50MM) (NOT AVAILABLE)

94510-50000

Unavailable

35

BEARING, RADIAL BALL (6301U) This part replaces 96100-63010.

96140-63010-10

$14.84

35

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

35

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

36

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

36

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84
