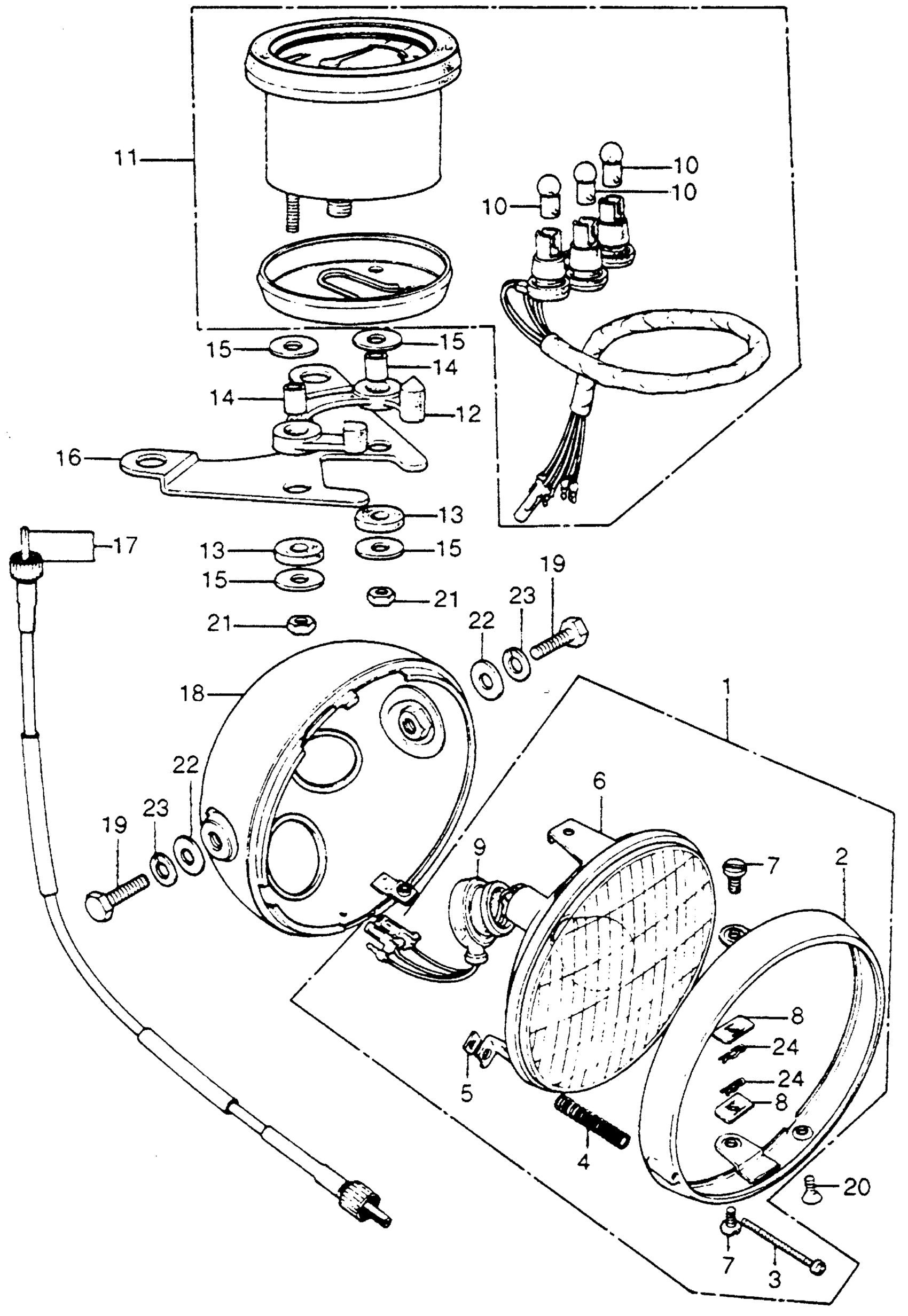

Honda CT70HK1A MOTORCYCLE, JPN, VIN# CT70H-2000001 HEADLIGHT + SPEEDOMETER Diagram

HEADLIGHT ASSY. (6V15/15W)

33100-111-671

Unavailable

RIM, HEADLIGHT (NOT AVAILABLE)

33101-111-671

Unavailable

SCREW, HEADLIGHT BEAM ADJ. (STANLEY)

33102-041-003

$2.25

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) This part replaces 33102-041-670.

33102-041-003

$2.25

SPRING, HEADLIGHT SETTING

33107-030-003

$2.54

NUT, BEAM ADJ.

33117-041-003

$1.95

HEADLIGHT UNIT

33120-111-671

Unavailable

SCREW, UNIT HOLDER

33125-292-670

Unavailable

NUT, UNIT HOLDER

33128-292-670

$2.94

COVER, RUBBER

33130-111-671

Unavailable

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

SPEEDOMETER ASSY. (MPH) (HONDALOCK) (NOT AVAILABLE) This part replaces 37200-098-985.

37200-137-671

Unavailable

SPEEDOMETER ASSY. (MPH) (HONDALOCK) (NOT AVAILABLE) This part replaces 37200-098-986.

37200-137-671

Unavailable

RUBBER, METER CUSHION (NOT AVAILABLE)

37310-098-970

$3.62

RUBBER B, SPEEDOMETER CUSHION (NOT AVAILABLE)

37311-061-810

Unavailable

COLLAR, SPEEDOMETER RUBBER (NOT AVAILABLE)

37312-061-810

Unavailable

WASHER, PLAIN (5.5MM)

37314-061-810

Unavailable

STAY, SPEEDOMETER *NH1* (BLACK) (NOT AVAILABLE)

37315-098-972B

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44830-098-970.

44830-126-930

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44830-126-920.

44830-126-930

Unavailable

CABLE ASSY., SPEEDOMETER

44830-126-930

Unavailable

CASE, HEADLIGHT *NH83L* (OFF BLACK) (NOT AVAILABLE)

61301-111-670CT

Unavailable

BOLT,HEX(8X20) This part replaces 92000-08020-0B.

92101-08020-0B

$1.66

SCREW, OVAL (5X12)

93700-05012-0B

$1.49

NUT, HEX. (5MM)

94001-05000-0S

$2.74

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

PIN, LOCK (5MM)

94251-05000

$1.49
