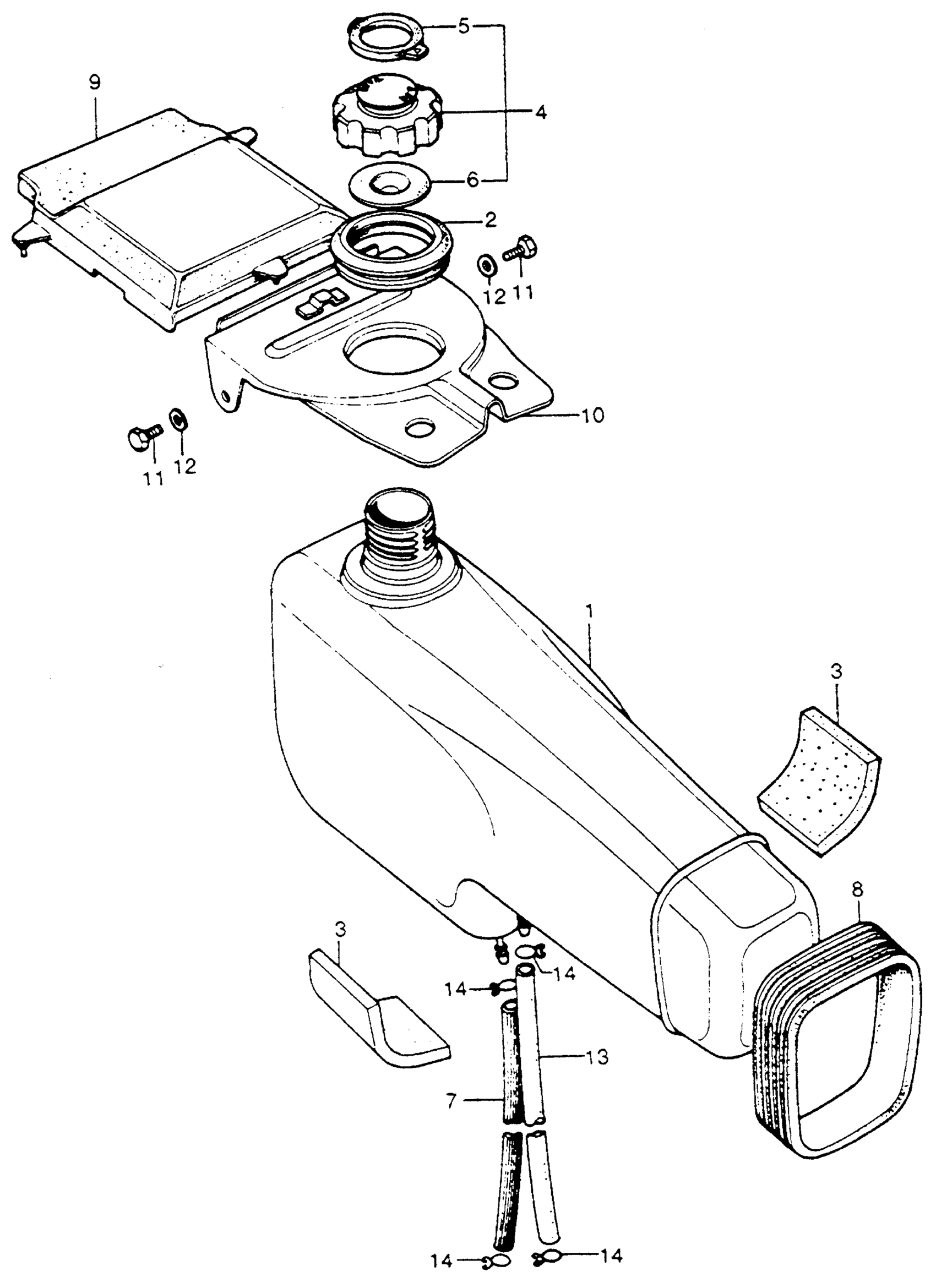

Honda CT70HK1A MOTORCYCLE, JPN, VIN# CT70H-2000001 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL (NOT AVAILABLE) | Use up to Frame SN 2017000 This part replaces 17500-098-010B.

17500-098-305

Unavailable

1

TANK, FUEL | Use from Frame SN 2017001 This part replaces 17500-098-020B.

17500-098-030

Unavailable

1

TANK, FUEL | Use from Frame SN 2017001

17500-098-030

Unavailable

1

TANK, FUEL (NOT AVAILABLE) | Use up to Frame SN 2017000

17500-098-305

Unavailable

2

GASKET, FUEL FILLER NECK | Use from Frame SN 2017001

17512-086-010

$7.05

2

GASKET, FILLER NECK (NOT AVAILABLE) | Use up to Frame SN 2017000

17512-098-000

Unavailable

3

RUBBER, FUEL TANK (NOT AVAILABLE) | Use up to Frame SN 2017000

17611-098-300

Unavailable

3

PAD, FUEL TANK | Use from Frame SN 2017001

17611-098-310

$6.36

4

CAP ASSY., FUEL | Use up to Frame SN 2017000

17620-098-010

$19.49

4

CAP, FUEL FILLER | Use from Frame SN 2017001 This part replaces 17620-098-690.

17620-165-643

$42.47

4

CAP, FUEL FILLER | Use from Frame SN 2017001 This part replaces 17620-098-691.

17620-165-643

$42.47

4

CAP, FUEL FILLER | Use from Frame SN 2017001 This part replaces 17620-147-972.

17620-165-643

$42.47

4

CAP, FUEL FILLER | Use from Frame SN 2017001 This part replaces 17620-165-642.

17620-165-643

$42.47

5

RUBBER, AIR BREATHER (NOT AVAILABLE) | Use up to Frame SN 2017000

17623-098-010

Unavailable

6

GASKET, FUEL CAP | Use up to Frame SN 2017000 This part replaces 17624-098-010.

17624-896-750

Unavailable

6

GASKET, FUEL CAP | Use up to Frame SN 2017000 This part replaces 17624-355-000.

17624-896-750

Unavailable

6

GASKET, FUEL CAP | Use up to Frame SN 2017000 This part replaces 17624-355-010.

17624-896-750

Unavailable

6

GASKET, FUEL CAP | Use up to Frame SN 2017000

17624-896-750

Unavailable

6

GASKET | Use from Frame SN 2017001 This part replaces 17631-001-000.

17631-096-702

$2.47

6

GASKET | Use from Frame SN 2017001 This part replaces 17631-096-701.

17631-096-702

$2.47

7

TUBE, FUEL RESERVE

17681-098-010

Unavailable

8

BAND, FUEL TANK (NOT AVAILABLE)

17670-098-000

Unavailable

9

LID, FRAME *NH1* (BLACK) This part replaces 50661-098-010B.

50661-098-010ZA

$25.93

9

LID, FRAME *NH1* (BLACK)

50661-098-010ZA

$25.93

10

LID, FUEL TANK *A26* (POLISHING) (NOT AVAILABLE) | Use up to Frame SN 2017000

50665-098-020B

Unavailable

10

LID, FUEL TANK | Use from Frame SN 2017001

50665-098-030

Unavailable

10

LID, FUEL TANK | Use from Frame SN 2017001 This part replaces 50665-098-030B.

50665-098-030

Unavailable

10

LID, FUEL TANK | Use from Frame SN 2017001 This part replaces 50665-098-030ZA.

50665-098-030

Unavailable

11

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

11

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

12

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

12

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

12

WASHER, PLAIN (6MM)

94101-06800

$1.49

13

BULK HOSE, FUEL (5.5X3000) (5.5X330) | Use from Frame SN 2017001

95001-55003-60M

$47.32

13

BULK HOSE, FUEL (5.5X3000) (5.5X350) | Use up to Frame SN 2017000

95001-55003-60M

$47.32

14

CLIP, TUBE (B10)

95002-02100

$1.90
