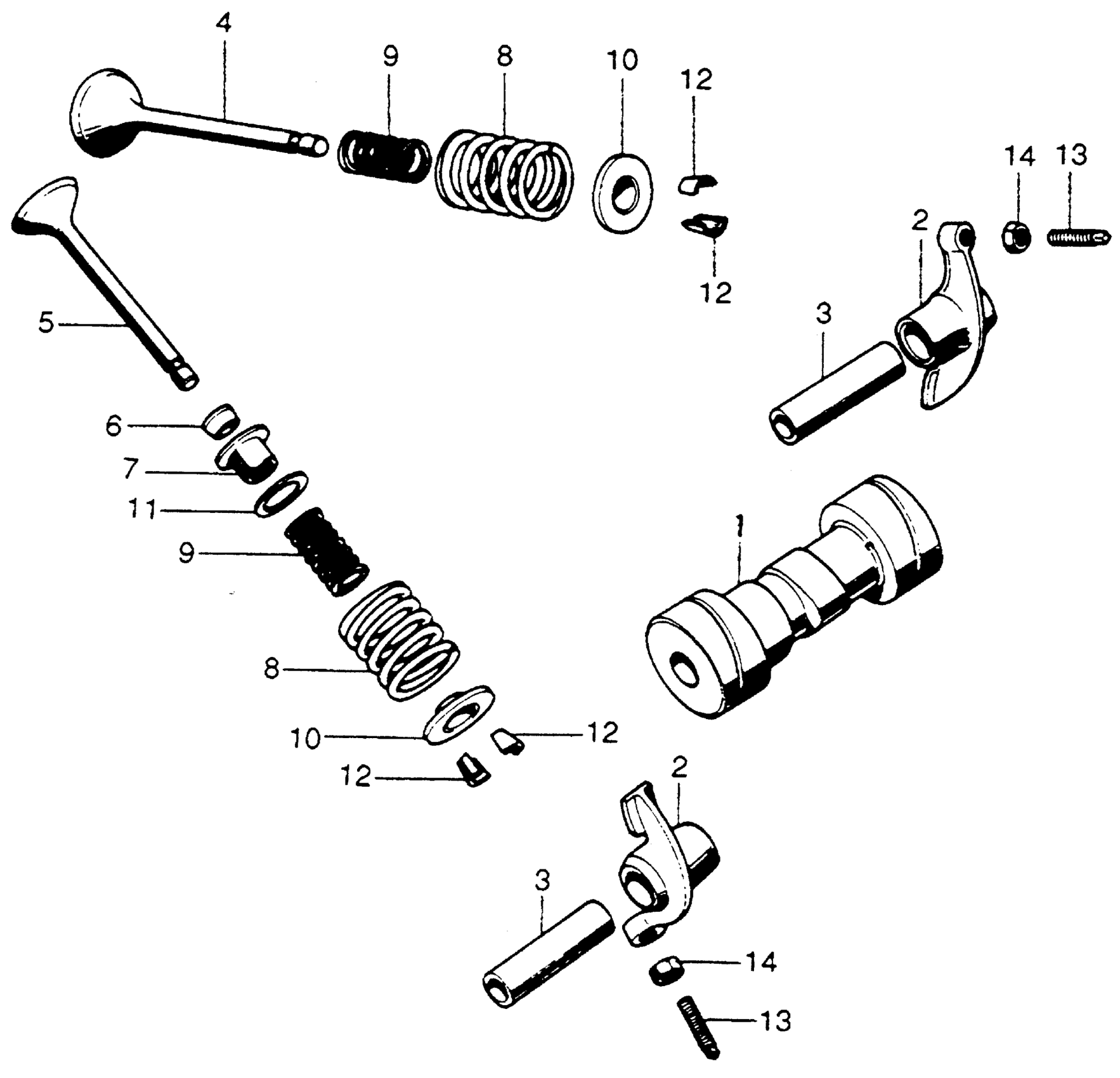

Honda CT70HK1A MOTORCYCLE, JPN, VIN# CT70H-2000001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

CAMSHAFT This part replaces 14101-041-020.

14101-041-030

Unavailable

1

CAMSHAFT

14101-041-030

Unavailable

2

ARM, VALVE ROCKER This part replaces 14431-035-000.

14431-035-020

$38.09

2

ARM, VALVE ROCKER This part replaces 14431-035-010.

14431-035-020

$38.09

2

ARM, VALVE ROCKER

14431-035-020

$38.09

3

SHAFT, VALVE ROCKER ARM

14451-035-000

$8.80

4

VALVE, IN.

14711-087-000

Unavailable

5

VALVE, EX. This part replaces 14721-087-000.

14721-089-000

Unavailable

5

VALVE, EX.

14721-089-000

Unavailable

6

SEAL, VALVE STEM

14730-028-013

$9.71

7

CAP, VALVE STEM SEAL

14731-028-000

$4.35

8

SPRING, VALVE (OUTER)

14751-035-600

$4.85

9

SPRING, VALVE (INNER)

14761-035-000

$3.12

10

RETAINER, VALVE SPRING

14771-035-600

Unavailable

11

SEAT, VALVE SPRING (INNER)

14776-028-000

$4.37

12

COTTER, VALVE

14781-001-004

$4.95

12

COTTER, VALVE

14781-001-010

$5.66

13

SCREW, TAPPET ADJ. This part replaces 90012-200-000.

90012-333-000

$2.75

13

SCREW, TAPPET ADJ.

90012-333-000

$2.75

14

NUT, TAPPET ADJ.

90206-001-000

$1.66
