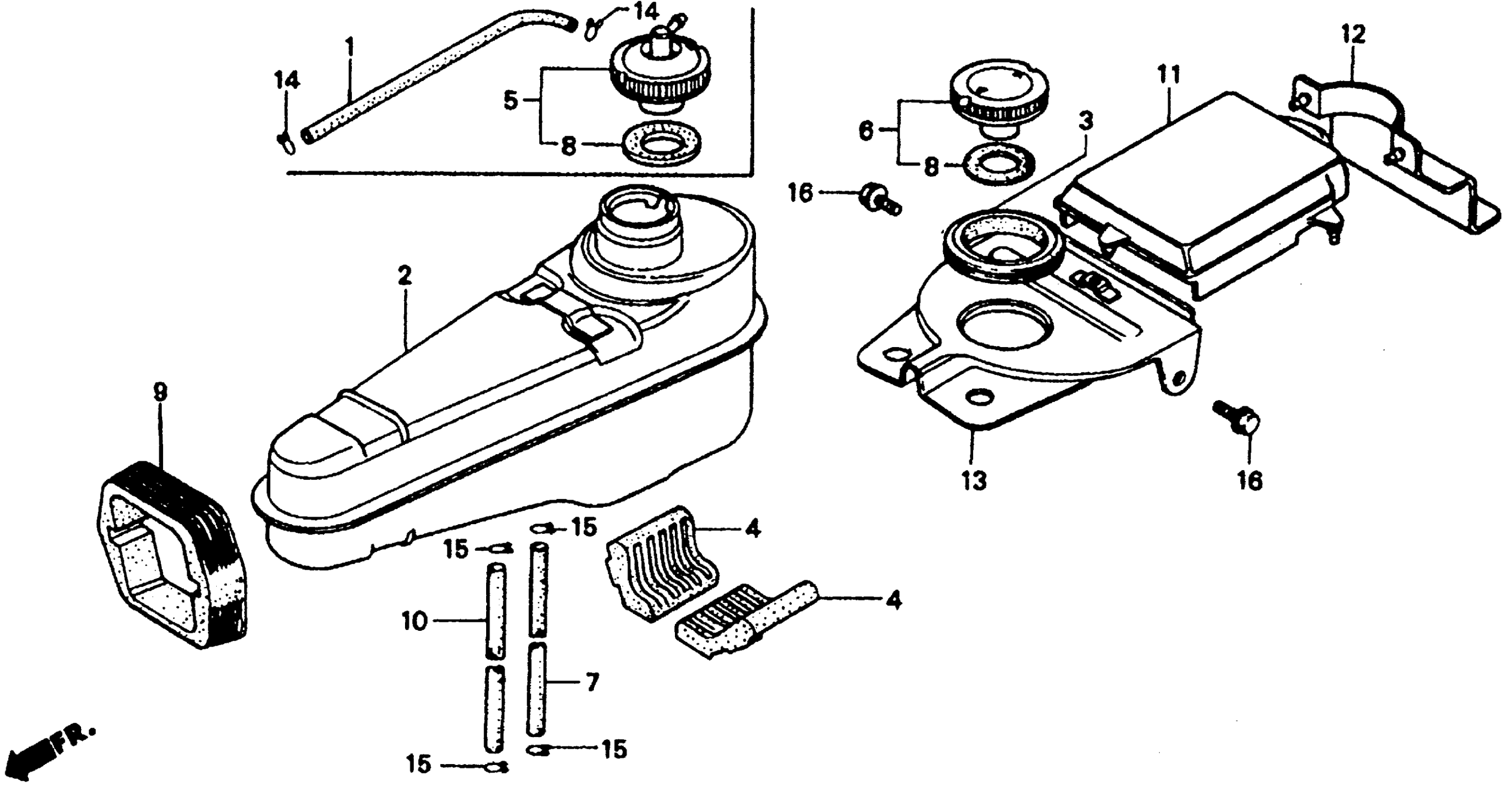

Honda CT70AC (94) MOTORCYCLE, JPN, VIN# JH2DB011-RK300001 FUEL TANK Diagram

#

Description
Price

1

TUBE C

17307-GAN-730

Unavailable

2

TANK, FUEL

17500-GAN-730

Unavailable

3

GASKET, FUEL FILLER NECK

17512-086-010

$7.05

4

PAD, FUEL TANK

17611-098-310

$6.36

5

CAP, FUEL FILLER

17620-GAN-730

Unavailable

7

TUBE, FUEL (5.3X270)

17630-126-900

Unavailable

8

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

9

BAND, FUEL TANK SETTING

17670-098-010

Unavailable

10

TUBE, FUEL (5.3X260)

17681-126-900

Unavailable

11

LID A, FRAME

50661-GAN-730

Unavailable

12

LID B, FRAME

50662-126-900

Unavailable

13

LID, FUEL TANK

50665-098-030

Unavailable

14

CLIP, TUBE (B8)

95002-02080

$1.80

15

CLIP, TUBE (B10)

95002-02100

$1.90

16

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
