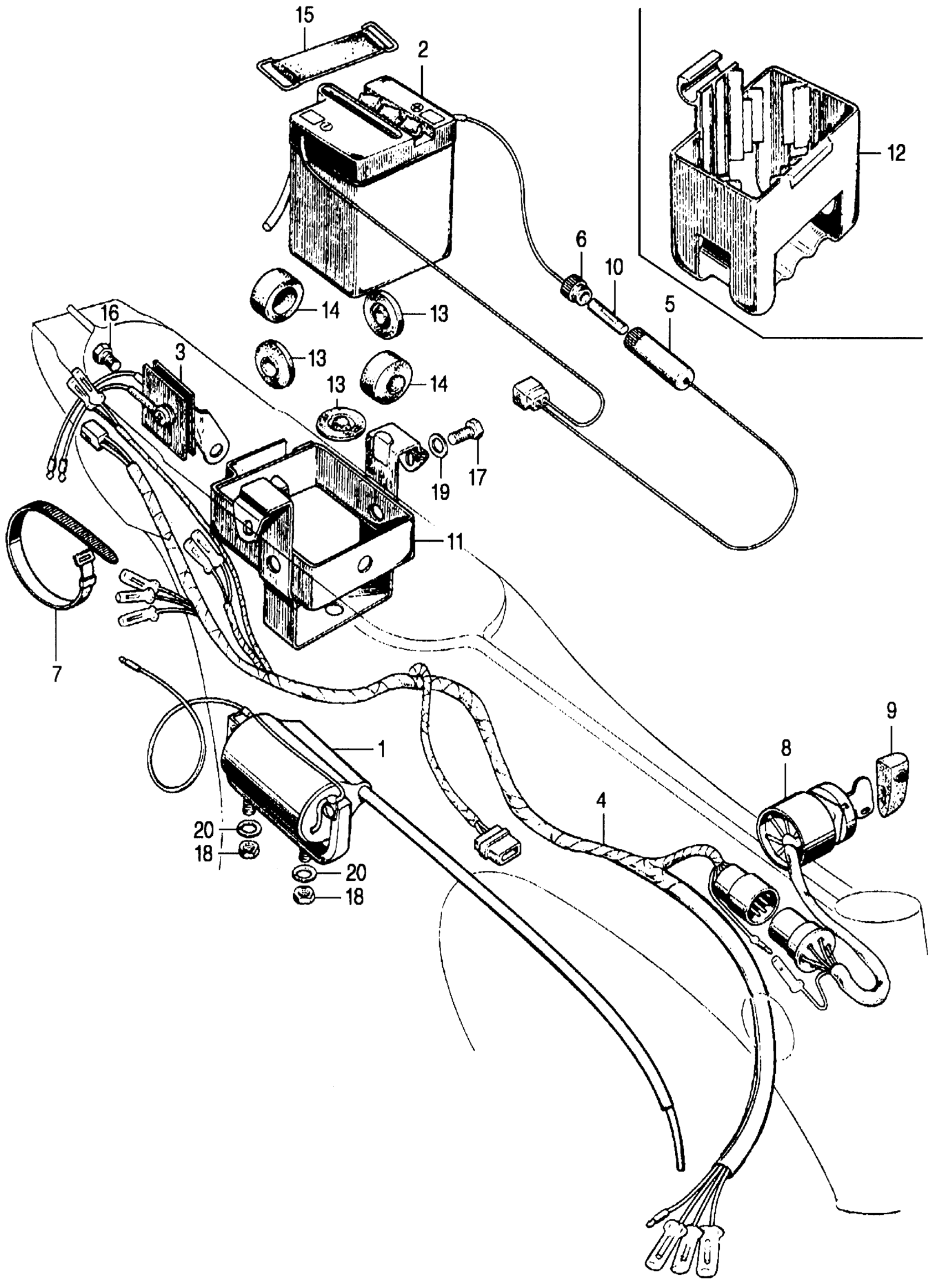

Honda CT70A MOTORCYCLE, JPN, VIN# CT70-100001 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

COIL, IGNITION This part replaces 30500-098-671.

30530-126-921

Unavailable

1

COIL, IGNITION

30530-126-921

Unavailable

2

BATTERY (6V2AH) This part replaces 31500-098-671.

31500-098-505AH

Unavailable

2

BATTERY (6V2AH) This part replaces 31500-098-681.

31500-098-505AH

Unavailable

3

RECTIFIER ASSY. This part replaces 31700-045-671.

31700-098-305

Unavailable

3

RECTIFIER ASSY.

31700-098-305

Unavailable

3

RECTIFIER ASSY. This part replaces 31700-098-921.

31700-098-305

Unavailable

3

RECTIFIER ASSY. This part replaces 31700-098-922.

31700-098-305

Unavailable

3

RECTIFIER ASSY. This part replaces 31700-118-771.

31700-098-305

Unavailable

4

WIRE HARNESS (NOT AVAILABLE)

32100-098-671

Unavailable

5

CONNECTOR A, FUSE (YUASA) This part replaces 32106-041-000.

32106-437-300

Unavailable

5

CONNECTOR A, FUSE (YUASA) This part replaces 32106-041-008.

32106-437-300

Unavailable

5

CONNECTOR A, FUSE (YUASA)

32106-437-300

Unavailable

6

CONNECTOR B, FUSE (YUASA) This part replaces 32112-041-000.

32112-041-008

Unavailable

6

CONNECTOR B, FUSE (YUASA)

32112-041-008

Unavailable

7

BAND B2, CABLE HARNESS This part replaces 32161-286-000.

95014-62200

$2.11

7

BAND B2, CABLE HARNESS

95014-62200

$2.11

8

SWITCH ASSY., COMBINATION

35100-098-672

$86.64

9

CAP, KEY

35112-098-670

Unavailable

10

FUSE A (7A) This part replaces 38201-001-000.

98200-10700

$1.49

10

FUSE A (7A)

98200-10700

$1.49

11

BOX, BATTERY (NOT AVAILABLE) | Use up to Frame SN 233054 This part replaces 50325-098-000.

50325-098-010

Unavailable

11

BOX, BATTERY (NOT AVAILABLE)

50325-098-010

Unavailable

12

RUBBER, BATTERY | Use from Frame SN 233055

50326-098-000

Unavailable

13

RUBBER B, BATTERY | Use up to Frame SN 233054

50327-300-000

$4.58

14

RUBBER A, BATTERY (NOT AVAILABLE) | Use up to Frame SN 233054

50328-098-670

Unavailable

15

BAND A, BATTERY | Use up to Frame SN 233054 This part replaces 50382-045-670.

95012-11001

$2.92

15

BAND, BATTERY | Use from Frame SN 233055

50382-098-000

Unavailable

15

BAND A, BATTERY | Use up to Frame SN 233054 This part replaces 95012-11000.

95012-11001

$2.92

15

BAND A, BATTERY | Use up to Frame SN 233054

95012-11001

$2.92

16

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

16

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

16

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

17

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

17

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, SPRING (6MM)

94111-06000

$1.49
