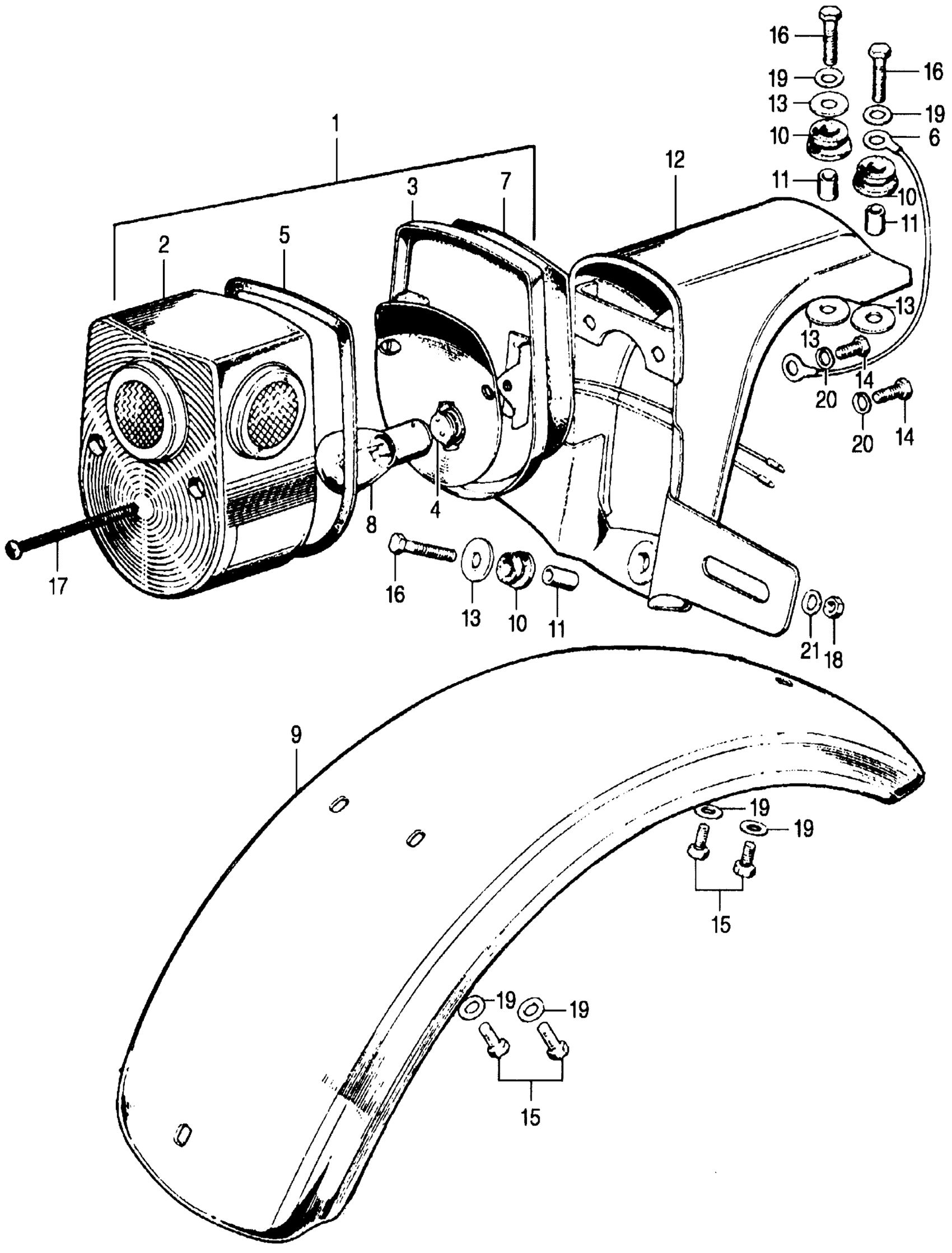

Honda CT70A MOTORCYCLE, JPN, VIN# CT70-100001 TAILLIGHT + REAR FENDER Diagram

#

Description
Price

1

TAILLIGHT ASSY. (NOT AVAILABLE) This part replaces 33701-074-670.

33700-074-671

Unavailable

2

LENS, TAILLIGHT

33702-074-671

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33703-074-671

Unavailable

4

WIRE, TAILLIGHT

33708-077-671

Unavailable

5

GASKET, TAILLIGHT LENS

33709-074-671

$1.90

6

WIRE, TAIL/STOP LIGHT GROUND

33712-098-670

Unavailable

7

GASKET, TAILLIGHT BASE

33719-074-670

Unavailable

8

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-041-671.

34906-202-670

$10.33

8

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY)

34906-202-670

$10.33

8

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-205-222.

34906-202-670

$10.33

8

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34911-001-810.

34906-202-670

$10.33

9

FENDER, RR. *TMFCR2* (CHROMIUM PLATING) This part replaces 80100-098-670XW.

80100-098-670ZB

$109.62

9

FENDER, RR. *TMFCR2* (CHROMIUM PLATING) This part replaces 80100-098-670ZA.

80100-098-670ZB

$109.62

9

FENDER, RR. *TMFCR2* (CHROMIUM PLATING)

80100-098-670ZB

$109.62

10

RUBBER A, RR. FENDER

80105-061-000

$3.73

11

COLLAR A, RR. FENDER

80108-061-010

$3.82

12

BRACKET, NUMBER PLATE *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

84701-098-671XW

Unavailable

13

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$0.71

13

WASHER, PLAIN (6MM)

94103-06800

$0.71

14

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$0.94

14

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$0.94

14

BOLT, HEX. (5X12)

92101-05012-0G

$0.94

15

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.28

15

BOLT, HEX. (6X10)

92101-06010-0A

$1.28

16

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.33

16

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.33

16

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.33

16

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.33

16

BOLT, HEX. (6X16)

92101-06016-0A

$1.33

16

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.33

17

SCREW, PAN (4X50)

93500-04050-0B

$0.99

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

18

NUT, HEX. (6MM)

94001-06200-0S

$1.19

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

19

WASHER, PLAIN (6MM)

94101-06800

Unavailable

20

WASHER, SPRING (5MM)

94111-05000

$1.03

21

WASHER, SPRING (6MM)

94111-06000

$0.86
