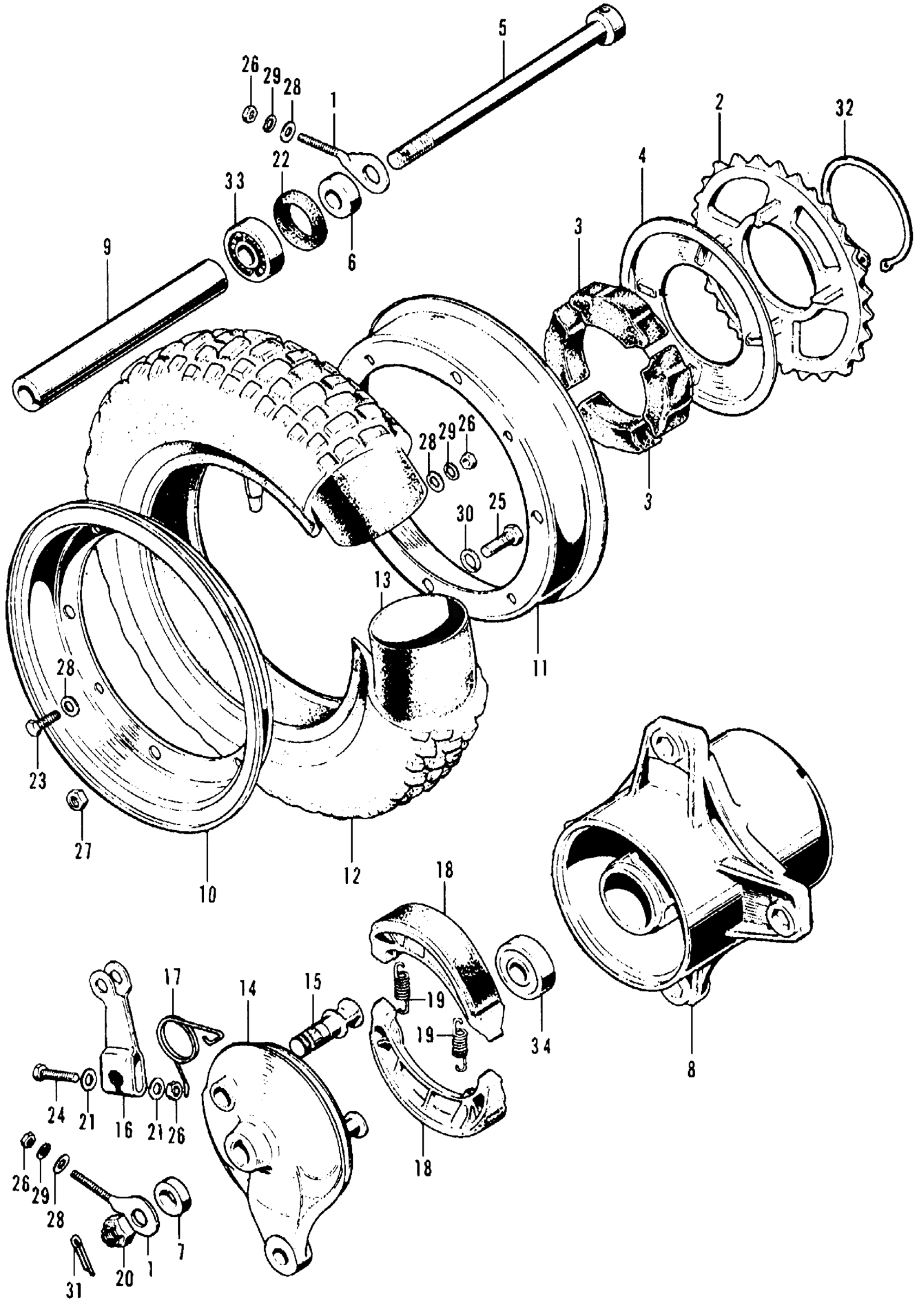

Honda CT70A MOTORCYCLE, JPN, VIN# CT70-100001 REAR WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 06450-001-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 451A0-001-670.

06450-178-932

$24.89

1

ADJUSTER S, R. CHAIN This part replaces 40543-063-000.

95014-10010

$4.53

1

RIM, R. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC)

42701-098-853ZA

Unavailable

1

RIM, R. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC) This part replaces 42701-098-854ZA.

42701-098-853ZA

Unavailable

1

ADJUSTER S, R. CHAIN

95014-10010

$4.53

2

SPROCKET, FINAL DRIVEN (38T)

41201-GB2-000

Unavailable

2

SPROCKET, FINAL DRIVEN (38T) This part replaces 41201-051-690.

41201-GB2-000

Unavailable

2

SPROCKET, FINAL DRIVEN (38T) This part replaces 41201-126-940.

41201-GB2-000

Unavailable

3

DAMPER, RR. WHEEL

41241-051-000

$7.31

4

COVER, RR. WHEEL DAMPER

41245-051-000

$4.79

5

AXLE, FR. WHEEL | Use up to Frame SN 226904 This part replaces 42301-045-010.

44301-074-000

Unavailable

5

AXLE, RR. WHEEL (NOT AVAILABLE) | Use from Frame SN 226905

42301-098-000

Unavailable

5

AXLE, FR. WHEEL | Use up to Frame SN 226904

44301-074-000

Unavailable

6

COLLAR, RR. WHEEL SIDE | Use up to Frame SN 129284 This part replaces 42304-051-000.

42304-098-000

$6.14

6

COLLAR, RR. WHEEL SIDE

42304-098-000

$6.14

7

COLLAR, RR. BRAKE PANEL SIDE

42313-098-000

$6.39

8

HUB, RR. WHEEL *NH35M* (CLOUD SILVER METALLIC) | Use up to Frame SN 247354 This part replaces 42601-098-000AU.

42601-098-010ZB

Unavailable

8

HUB, RR. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42601-098-010AU.

42601-098-010ZB

Unavailable

8

HUB, RR. WHEEL *NH35M* (CLOUD SILVER METALLIC)

42601-098-010ZB

Unavailable

9

COLLAR, RR. AXLE DISTANCE

42620-098-000

Unavailable

10

RIM, R. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC) This part replaces 42701-098-000AU.

42701-098-853ZA

Unavailable

10

RIM, R. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC) This part replaces 42701-098-851ZA.

42701-098-853ZA

Unavailable

10

RIM, R. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC)

42701-098-853ZA

Unavailable

10

RIM, R. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC) This part replaces 42701-098-854ZA.

42701-098-853ZA

Unavailable

11

RIM, L. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC) This part replaces 42702-098-000AU.

42702-098-853ZA

Unavailable

11

RIM, L. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC) This part replaces 42702-098-851ZA.

42702-098-853ZA

Unavailable

11

RIM, L. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC)

42702-098-853ZA

Unavailable

12

TIRE (4.00-10) (BS) (NOT AVAILABLE)

42711-098-671

Unavailable

12

TIRE (4.00-10) (NITTO) This part replaces 42711-098-672.

42711-098-673

$89.11

12

TIRE (4.00-10) (NITTO)

42711-098-673

$89.11

13

TUBE, WHEEL (3.50-10) (BS) This part replaces 42712-098-000.

42712-098-691

Unavailable

13

TUBE, WHEEL (3.50-10) (BS) This part replaces 42712-098-003.

42712-098-691

Unavailable

13

TUBE, WHEEL (3.50-10) (BS)

42712-098-691

Unavailable

14

PANEL, RR. BRAKE This part replaces 43100-028-020.

43100-098-950

Unavailable

14

PANEL, RR. BRAKE

43100-098-950

Unavailable

15

CAM, RR. BRAKE

43141-098-000

Unavailable

16

ARM, RR. BRAKE

43410-098-000

Unavailable

17

SPRING, RR. BRAKE ARM RETURN (NOT AVAILABLE)

43413-098-670

Unavailable

18

SHOE, BRAKE (SEE KIT P/N--END OF BLOCK) (N/A: USE P/N 451A0-001-670)

45120-001-010

Unavailable

19

SPRING, BRAKE SHOE

45133-028-000

$2.03

20

NUT, FR. AXLE | Use from Frame SN 226905

90305-439-930

$5.90

20

NUT, FR. AXLE | Use from Frame SN 226905 This part replaces 90306-098-000.

90305-439-930

$5.90

20

NUT, SELF-LOCK (12MM) | Use up to Frame SN 226904

90353-045-000

$5.99

21

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

22

OIL SEAL (26X37X6) This part replaces 90753-051-000.

90753-051-003

$7.66

22

OIL SEAL (26X37X6)

90753-051-003

$7.66

22

OIL SEAL (26X37X6) This part replaces 90753-051-005.

90753-051-003

$7.66

23

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

24

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

24

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

24

BOLT, HEX. (6X35)

92201-06035-0A

$1.75

25

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

25

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

26

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (8MM)

94001-08000-0S

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

WASHER, SPRING (6MM)

94111-06000

$1.49

30

WASHER, SPRING (8MM)

94111-08000

$1.49

31

PIN, COTTER (3.0X45) | Use from Frame SN 226905 This part replaces 94201-30250.

94201-30450

$1.49

31

PIN, COTTER (3.0X45) | Use from Frame SN 226905 This part replaces 94201-30300.

94201-30450

$1.49

31

PIN, COTTER (3.0X45) | Use from Frame SN 226905 This part replaces 94201-30400.

94201-30450

$1.49

31

PIN, COTTER (3.0X45) | Use from Frame SN 226905

94201-30450

$1.49

32

CIRCLIP (OUTER) (50MM) (NOT AVAILABLE)

94510-50000

Unavailable

33

BEARING, RADIAL BALL (6301U) This part replaces 96100-63010.

96140-63010-10

$14.84

33

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

33

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

34

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

34

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84
