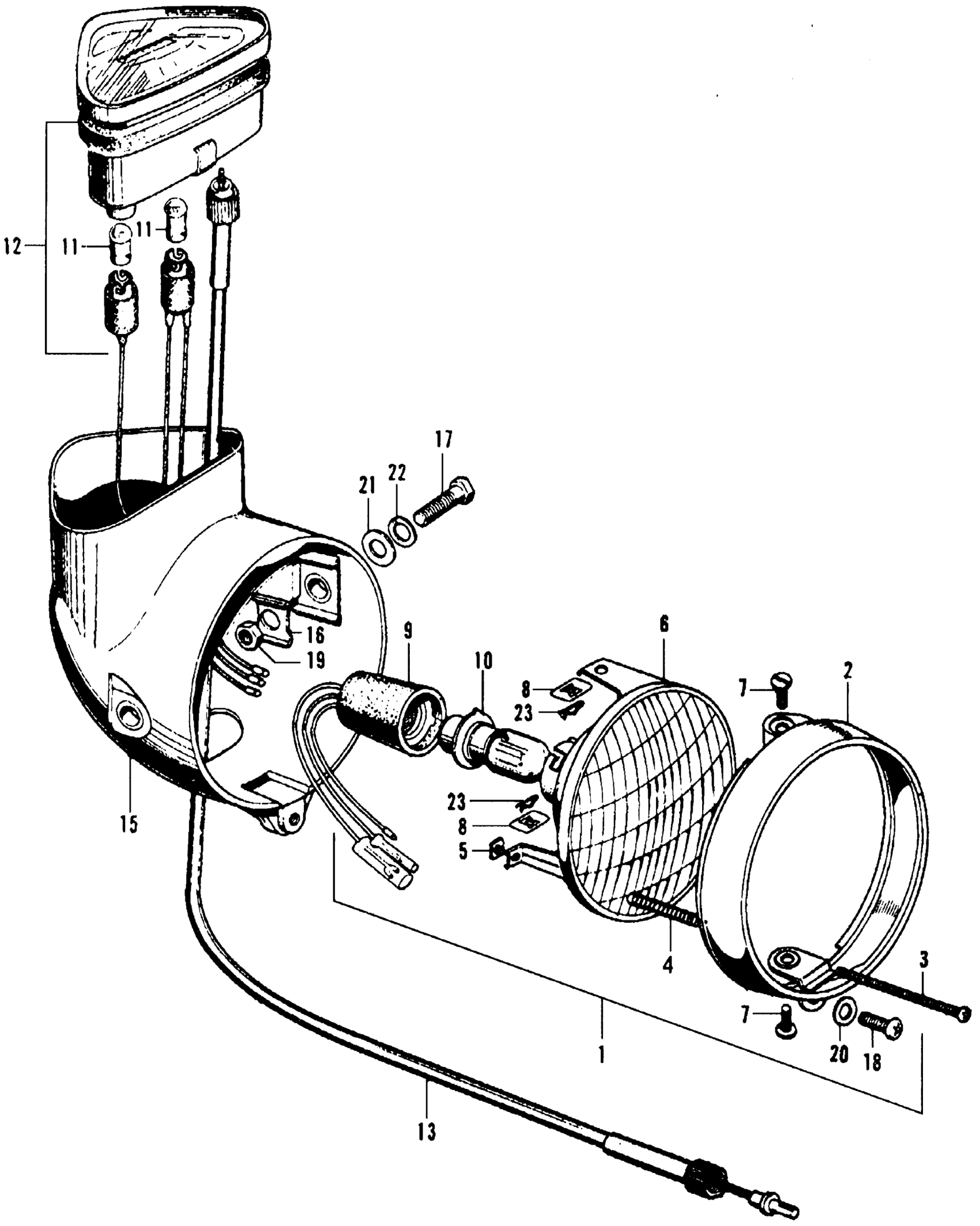

Honda CT70A MOTORCYCLE, JPN, VIN# CT70-100001 HEADLIGHT + SPEEDOMETER Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-089-671

Unavailable

2

RIM, HEADLIGHT (N/A: SEE ASSEMBLY)

33101-028-672

Unavailable

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY)

33102-041-003

$2.04

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) This part replaces 33102-041-670.

33102-041-003

$2.04

4

SPRING, HEADLIGHT SETTING

33107-030-003

$2.32

5

NUT, BEAM ADJ.

33117-041-003

$1.78

6

HEADLIGHT UNIT

33120-089-671

Unavailable

7

SCREW, UNIT HOLDER

33125-292-670

Unavailable

8

NUT, UNIT HOLDER

33128-292-670

$2.80

9

SOCKET ASSY., HEADLIGHT (NOT AVAILABLE)

33130-028-671

Unavailable

10

BULB, HEADLIGHT (6V15/15W) (STANLEY)

34901-001-025

$17.16

10

BULB, HEADLIGHT (6V15/15W) (STANLEY) This part replaces 34901-001-671.

34901-001-025

$17.16

11

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.35

12

SPEEDOMETER ASSY. (MPH) (NOT AVAILABLE)

37200-098-671

Unavailable

13

CABLE, SPEEDOMETER This part replaces 44830-098-000.

44830-126-651

Unavailable

13

CABLE, SPEEDOMETER This part replaces 44830-126-650.

44830-126-651

Unavailable

15

CASE, HEADLIGHT *R4C* (CANDY RUBY RED) This part replaces 61301-056-671CM.

61301-056-672ZA

Unavailable

15

CASE, HEADLIGHT *PB3C* (CANDY SAPPHIRE BLUE) (NOT AVAILABLE) This part replaces 61301-056-671CN.

61301-056-672ZQ

Unavailable

15

CASE, HEADLIGHT *Y2C* (CANDY GOLD) (NOT AVAILABLE) This part replaces 61301-056-671CQ.

61301-056-672ZR

Unavailable

15

CASE, HEADLIGHT *R4C* (CANDY RUBY RED)

61301-056-672ZA

Unavailable

15

CASE, HEADLIGHT *PB3C* (CANDY SAPPHIRE BLUE) (NOT AVAILABLE)

61301-056-672ZQ

Unavailable

15

CASE, HEADLIGHT *Y2C* (CANDY GOLD) (NOT AVAILABLE)

61301-056-672ZR

Unavailable

16

WASHER, HEADLIGHT CASE

61303-229-000

$2.43

17

BOLT, HEX. (8X25) This part replaces 92000-08025-0B.

92101-08025-0B

$1.62

17

BOLT, HEX. (8X25)

92101-08025-0B

$1.62

18

SCREW, PAN (5X12)

93500-05012-0A

$0.83

19

NUT, HEX. (8MM)

94001-08000-0S

$1.19

20

WASHER, PLAIN (5MM)

94101-05000

$0.90

21

WASHER, PLAIN (8MM)

94101-08000

$0.75

22

WASHER, SPRING (8MM)

94111-08000

$0.90

23

PIN, LOCK (5MM)

94251-05000

$0.94
