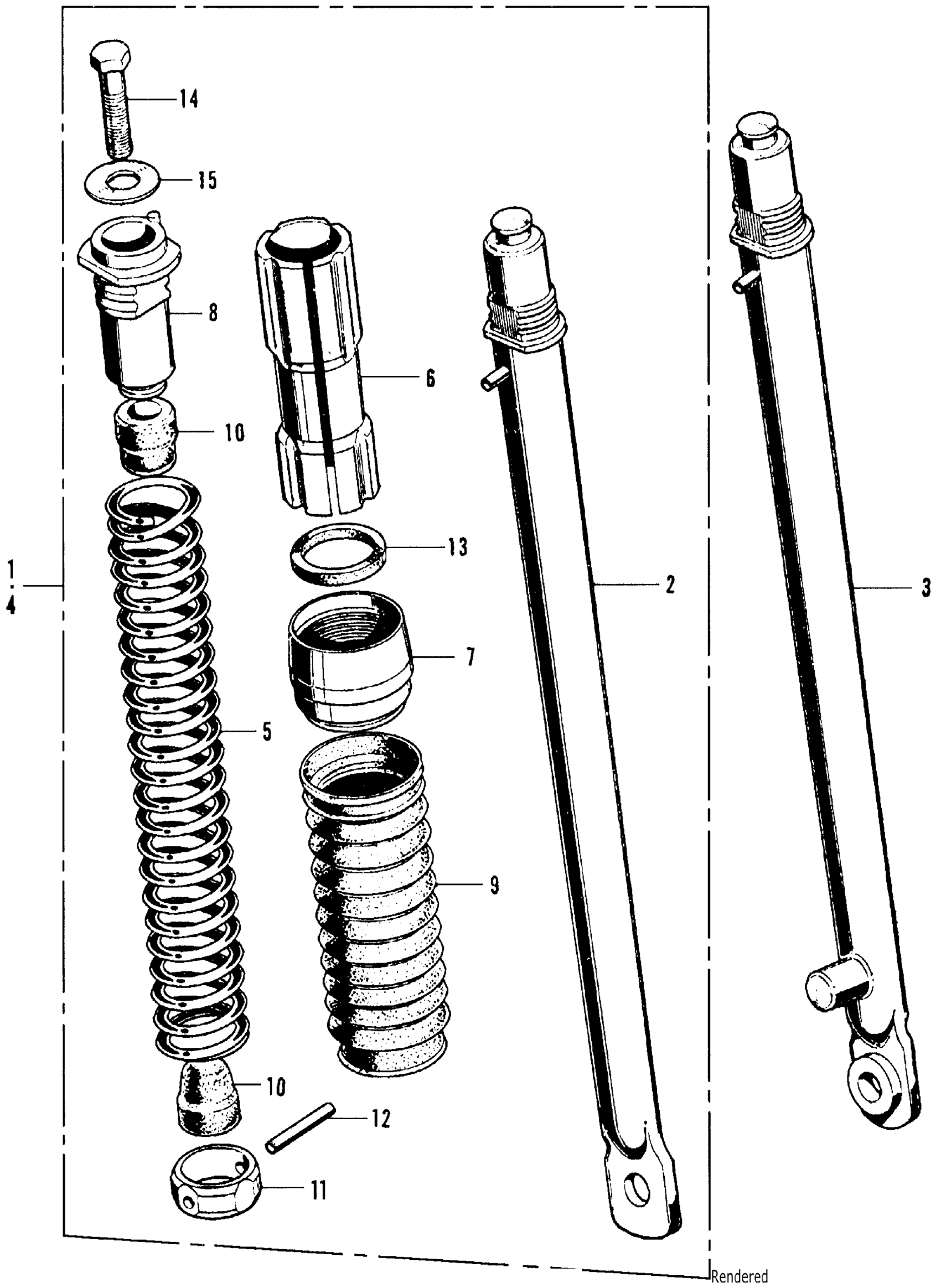

Honda CT70A MOTORCYCLE, JPN, VIN# CT70-100001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-098-671

Unavailable

2

SLIDE HALF PIPE, R. FR. FORK (NOT AVAILABLE)

51450-098-670

Unavailable

3

SLIDE HALF PIPE, L. FR. FORK (NOT AVAILABLE)

51460-098-670

Unavailable

4

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-098-671

Unavailable

5

SPRING, FR. FORK (NOT AVAILABLE)

51501-064-691

Unavailable

6

GUIDE, FR. FORK PIPE

51502-045-670

$16.83

7

CAP, FORK PIPE GUIDE | Use up to Frame SN 100001 This part replaces 51503-064-010.

51503-098-000

Unavailable

7

CAP, FORK PIPE GUIDE | Use up to Frame SN 100001

51503-098-000

Unavailable

7

CAP, FORK PIPE GUIDE | Use from Frame SN 110831

51503-098-000

Unavailable

8

HOLDER, FR. FORK SPRING (UPPER)

51504-098-300

Unavailable

9

BOOT, FR. FORK *NH1* (BLACK)

51505-064-010B

$26.44

10

RUBBER, FR. FORK STOPPER

51506-064-020

$2.92

11

PISTON, SLIDE PIPE

51507-098-000

$11.20

12

PIN, SPRING

51526-098-000

$2.92

13

OIL SEAL (20.7X30X7)

90755-064-013

$6.34

14

BOLT, HEX. (10X40) This part replaces 93000-10040-0B.

93201-10040-0B

$3.21

14

BOLT, HEX. (10X40) This part replaces 93200-10040-0B.

93201-10040-0B

$3.21

14

BOLT, HEX. (10X40)

93201-10040-0B

$3.21

15

WASHER, PLAIN (10MM)

94101-10000

$1.49
