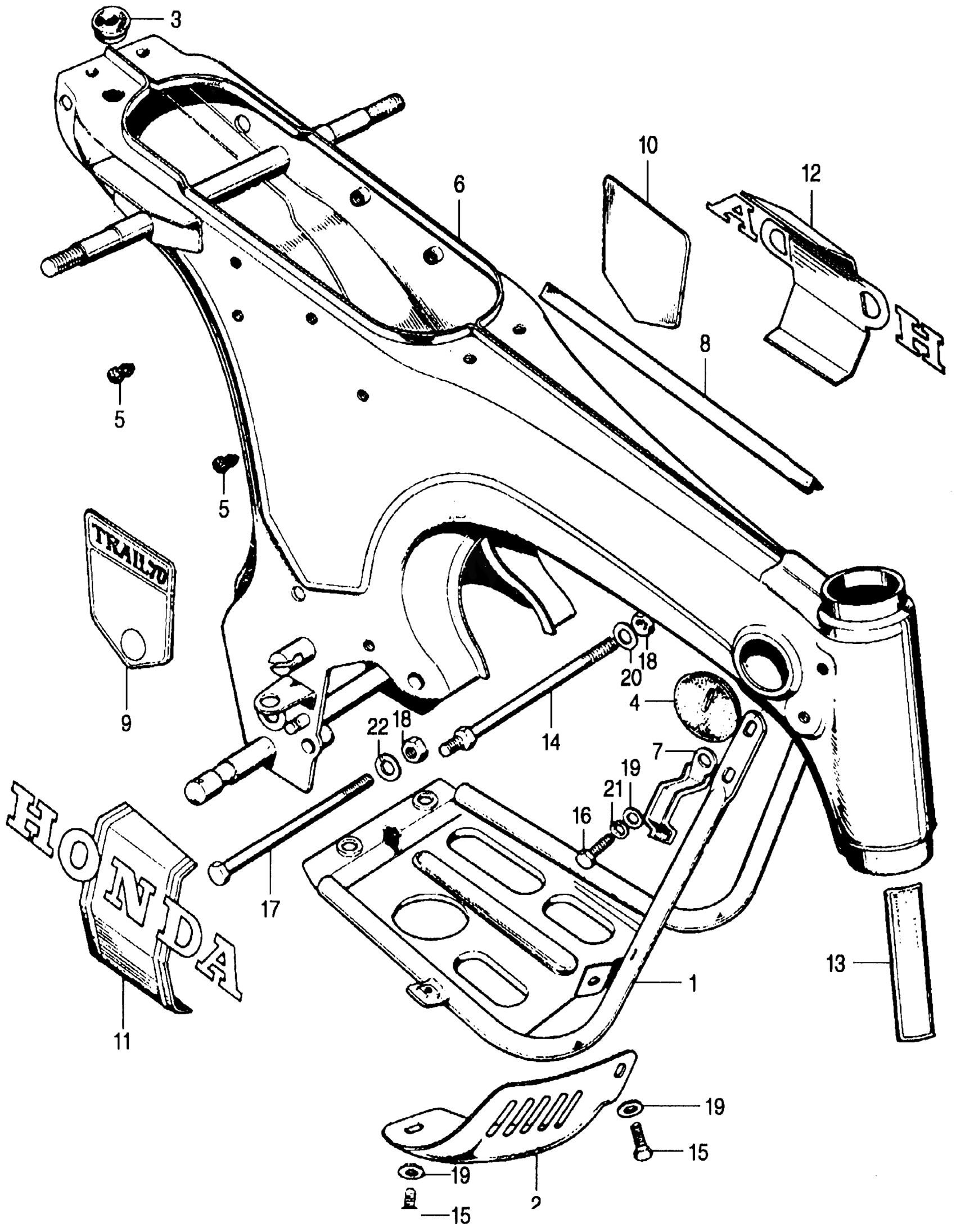

Honda CT70A MOTORCYCLE, JPN, VIN# CT70-100001 FRAME + CRANKCASE PROTECTOR Diagram

#

Description
Price

1

PROTECTOR, CRANKCASE (NOT AVAILABLE)

11911-098-671

Unavailable

2

PROTECTOR, CRANKCASE (NOT AVAILABLE)

11912-098-671

Unavailable

3

GROMMET, WIRE HARNESS

32983-011-000

$3.31

4

GROMMET, WIRE HARNESS

32984-098-000

$5.73

5

PLUG, HEAD PIPE

50049-046-000

$2.03

6

FRAME *R4C* (CANDY RUBY RED) (NOT AVAILABLE) This part replaces 50100-098-672CM.

50100-098-673CM

Unavailable

6

FRAME *PB3C* (CANDY SAPPHIRE BLUE) (NOT AVAILABLE) This part replaces 50100-098-672CN.

50100-098-673CN

Unavailable

6

FRAME *Y2C* (CANDY GOLD) (NOT AVAILABLE) This part replaces 50100-098-672CQ.

50100-098-673CQ

Unavailable

6

FRAME This part replaces 50100-098-672Z.

50100-098-673Z

Unavailable

6

FRAME *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

50100-098-673CM

Unavailable

6

FRAME *PB3C* (CANDY SAPPHIRE BLUE) (NOT AVAILABLE)

50100-098-673CN

Unavailable

6

FRAME *Y2C* (CANDY GOLD) (NOT AVAILABLE)

50100-098-673CQ

Unavailable

6

FRAME

50100-098-673Z

Unavailable

7

CLIP, WIRE HARNESS

50191-098-670

$4.33

8

MOLDING, FRAME

50305-098-000

$15.66

9

EMBLEM, R. FRAME SIDE (NOT AVAILABLE) | Use up to Frame SN 237304 This part replaces 87122-098-671.

87122-098-672

Unavailable

9

EMBLEM, R. FRAME SIDE (NOT AVAILABLE)

87122-098-672

Unavailable

10

EMBLEM, L. SIDE (NOT AVAILABLE)

87123-098-670

Unavailable

11

EMBLEM, R. FR. This part replaces 87124-098-505.

87124-098-670

Unavailable

11

EMBLEM, R. FR.

87124-098-670

Unavailable

12

EMBLEM, L. FR. This part replaces 87125-098-505.

87125-098-670

$44.30

12

EMBLEM, L. FR.

87125-098-670

$44.30

13

LABEL, CAUTION (NOT AVAILABLE)

87131-045-670

Unavailable

14

BOLT A, RR. ENGINE SUPPORT

90112-003-000

$8.18

15

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

15

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

16

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

17

BOLT, HEX. (8X115) (NOT AVAILABLE) This part replaces 90052-723-750.

92200-08115-0A

Unavailable

17

BOLT, HEX. (8X115) (NOT AVAILABLE) This part replaces 92000-08115.

92200-08115-0A

Unavailable

17

BOLT, HEX. (8X115) (NOT AVAILABLE) This part replaces 92000-08115-0A.

92200-08115-0A

Unavailable

17

BOLT, HEX. (8X115) (NOT AVAILABLE)

92200-08115-0A

Unavailable

18

NUT, HEX. (8MM)

94030-08000

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, PLAIN (8MM)

94101-08000

$1.49

21

WASHER, SPRING (6MM)

94111-06000

$1.49

22

WASHER, SPRING (8MM)

94111-08000

$1.49
