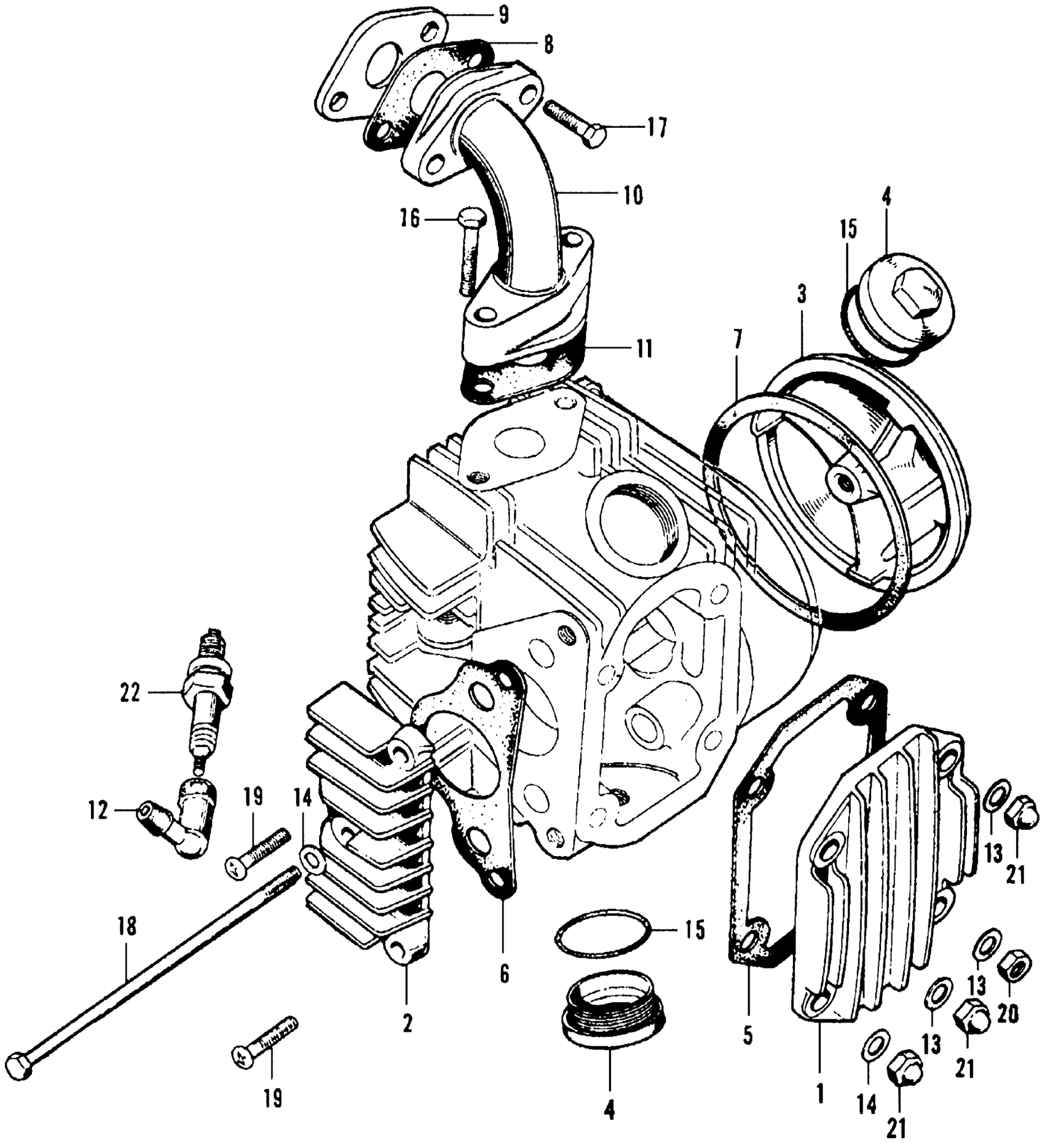

Honda CT70A MOTORCYCLE, JPN, VIN# CT70-100001 CYLINDER HEAD COVER + INLETPIPE Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

12301-035-000

Unavailable

2

COVER, R. CYLINDER HEAD SIDE

12331-035-000

Unavailable

3

COVER, L. CYLINDER HEAD SIDE

12341-035-000

$22.88

4

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

4

CAP, VALVE ADJ.

12361-300-000

Unavailable

4

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-GW8-680.

12391-KVM-C20

$3.86

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-035-000.

12391-KVM-C20

$3.86

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-035-306.

12391-KVM-C20

$3.86

6

GASKET, R. CYLINDER This part replaces 12394-035-000.

12394-035-010

$3.16

6

GASKET, R. CYLINDER

12394-035-010

$3.16

6

GASKET, R. CYLINDER This part replaces 12394-035-306.

12394-035-010

$3.16

7

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-GW8-680.

12395-GW8-682

$4.61

7

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-035-000.

12395-GW8-682

$4.61

7

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-035-306.

12395-GW8-682

$4.61

8

GASKET, INSULATOR This part replaces 16201-098-000.

16201-098-010

$2.87

8

GASKET, INSULATOR

16201-098-010

$2.87

8

GASKET, INSULATOR This part replaces 16201-098-306.

16201-098-010

$2.87

9

INSULATOR, CARBURETOR This part replaces 16211-098-000.

16211-098-306

$4.69

9

INSULATOR, CARBURETOR

16211-098-306

$4.69

10

PIPE, INLET

17111-098-000

Unavailable

11

GASKET, IN. PIPE This part replaces 17119-035-000.

17119-088-832

$4.09

11

GASKET, IN. PIPE This part replaces 17119-035-306.

17119-088-832

$4.09

11

GASKET, IN. PIPE This part replaces 17119-088-830.

17119-088-832

$4.09

12

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$16.05

12

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$16.05

12

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$16.05

12

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$16.05

13

WASHER, SEALING (6MM)

90442-035-000

$2.01

14

WASHER A, SEALING (6MM)

90443-035-000

$3.39

15

O-RING (30.8MM)

91302-001-020

$3.41

16

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$0.94

16

BOLT, HEX. (6X20)

92101-06020-0A

$0.94

17

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.48

17

BOLT, HEX. (6X25)

92101-06025-0A

$1.48

18

BOLT, HEX. (6X112) This part replaces 92000-06112.

92101-06110-0A

Unavailable

18

BOLT, HEX. (6X112)

92101-06110-0A

Unavailable

19

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.04

19

SCREW, PAN (6X18)

93500-06018-0A

$1.04

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

20

NUT, HEX. (6MM)

94001-06200-0S

$1.19

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

21

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.65

21

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.65

21

NUT, CAP (6MM)

94021-06020

$1.65

21

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.65

21

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.65

22

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57710.

98056-57713

$2.10

22

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57711.

98056-57713

$2.10

22

SPARK PLUG (C7HS) (NGK)

98056-57713

$2.10

22

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57717.

98056-57713

$2.10

22

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57722.

98056-57713

$2.10
