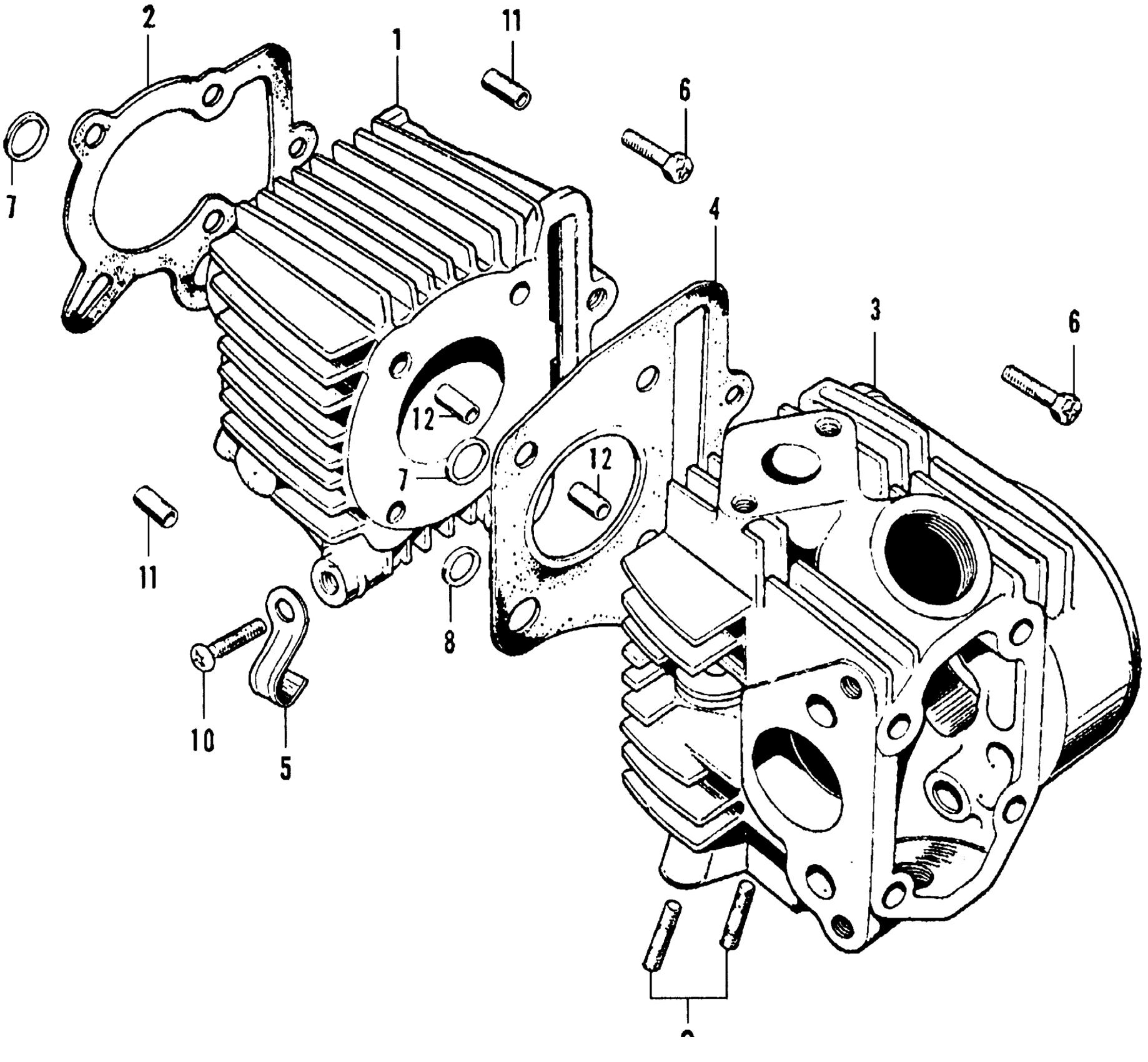

Honda CT70A MOTORCYCLE, JPN, VIN# CT70-100001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER

12101-GB0-910

$212.90

1

CYLINDER | Use up to Engine SN 226904 This part replaces 12101-087-000.

12101-GB0-910

$212.90

1

CYLINDER This part replaces 12101-087-010.

12101-GB0-910

$212.90

1

CYLINDER | Use from Engine SN 226905 This part replaces 12101-098-670.

12101-GB0-910

$212.90

1

CYLINDER | Use from Engine SN 226905 This part replaces 12101-098-671.

12101-GB0-910

$212.90

2

GASKET, CYLINDER This part replaces 12191-GB2-004.

12191-GW8-683

$8.88

2

GASKET, CYLINDER This part replaces 12191-GB2-306.

12191-GW8-683

$8.88

2

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$8.88

2

GASKET, CYLINDER This part replaces 12191-035-020.

12191-GW8-683

$8.88

2

GASKET, CYLINDER This part replaces 12191-118-670.

12191-GW8-683

$8.88

3

CYLINDER HEAD This part replaces 12200-087-000.

12200-087-305

Unavailable

3

CYLINDER HEAD This part replaces 12200-087-010.

12200-087-305

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-087-000.

12251-111-505

Unavailable

4

GASKET, CYLINDER HEAD

12251-111-505

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-111-730.

12251-111-505

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-111-731.

12251-111-505

Unavailable

5

CLIP, IGNITION CABLE

32906-061-000

$4.79

6

BOLT (6MM) This part replaces 90082-035-000.

90082-035-010

$2.39

6

BOLT (6MM)

90082-035-010

$2.39

7

GASKET, RUBBER (16MM)

91303-035-000

$4.87

8

GASKET, RUBBER (9MM) This part replaces 91306-035-000.

91306-141-000

$4.65

8

GASKET, RUBBER (9MM)

91306-141-000

$4.65

9

BOLT, STUD (6X18) This part replaces 92700-06030.

92900-06018-0B

$1.55

9

BOLT, STUD (6X18) This part replaces 92700-06031.

92900-06018-0B

$1.55

9

BOLT, STUD (6X18) This part replaces 92700-06032.

92900-06018-0B

$1.55

9

BOLT, STUD (6X18) This part replaces 92700-06032-30.

92900-06018-0B

$1.55

9

BOLT, STUD (6X18)

92900-06018-0B

$1.55

10

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

10

SCREW, PAN (6X20)

93500-06020-0A

$1.49

11

PIN A, DOWEL (8X12)

94301-08120

$2.19

12

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25
