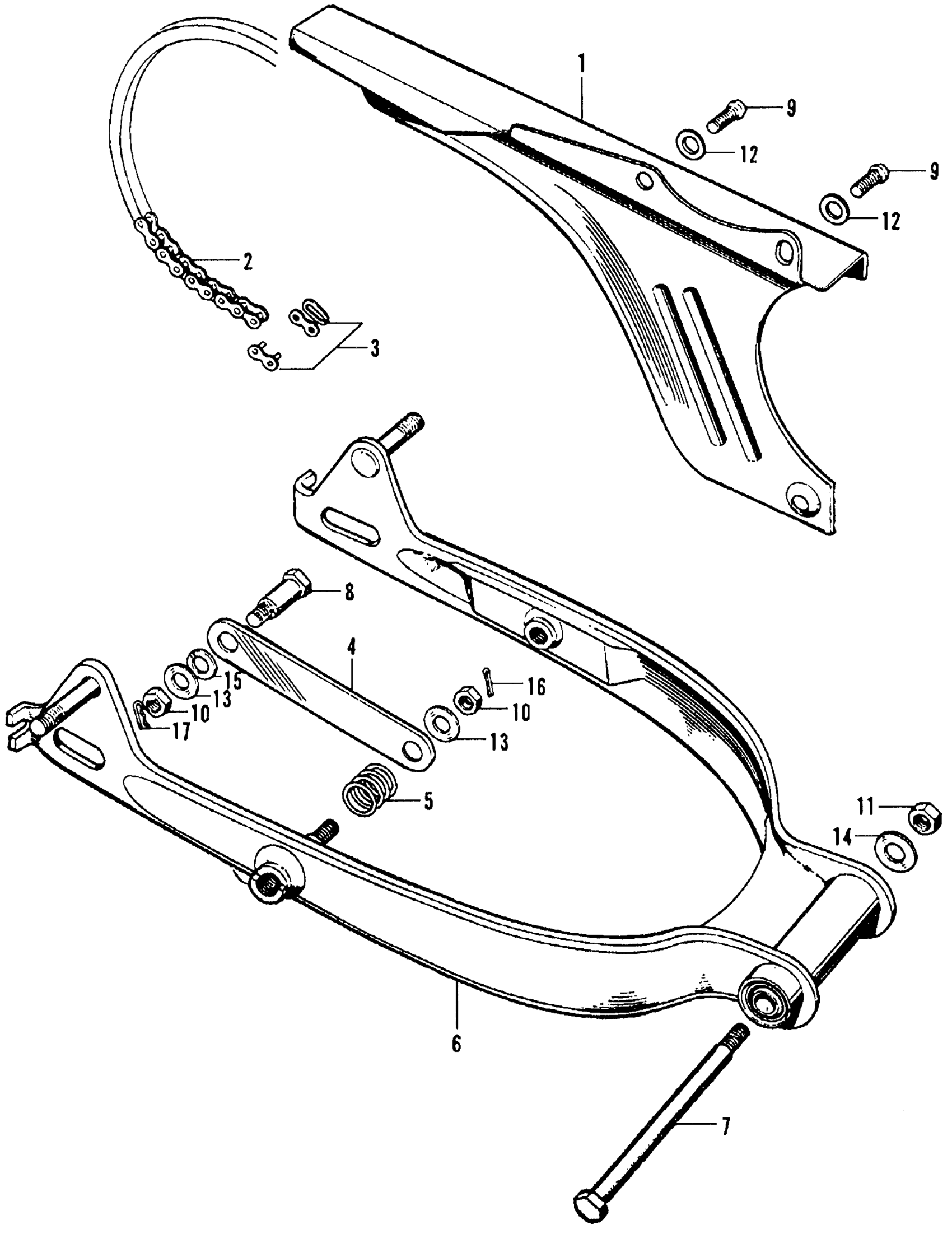

Honda CT70A MOTORCYCLE, JPN, VIN# CT70-100001 CHAIN CASE + SWINGARM Diagram

CASE, DRIVE CHAIN *NH1* (BLACK) This part replaces 40510-098-000Z.

40510-098-000ZC

Unavailable

CASE, DRIVE CHAIN *NH1* (BLACK)

40510-098-000ZC

Unavailable

CHAIN, DRIVE

405W3-GB2-505

Unavailable

CHAIN, DRIVE This part replaces 40530-GB2-721.

405W3-GB2-505

Unavailable

CHAIN, DRIVE This part replaces 40530-GB2-722.

405W3-GB2-505

Unavailable

CHAIN, DRIVE This part replaces 40530-098-003.

405W3-GB2-505

Unavailable

MASTER LINK (DAIDO) This part replaces 40531-035-005.

40531-098-003

$3.74

MASTER LINK (DAIDO)

40531-098-003

$3.74

MASTER LINK (DAIDO) This part replaces 40531-098-005.

40531-098-003

$3.74

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

ARM, RR. BRAKE STOPPER This part replaces 43431-098-000.

43431-124-740

Unavailable

ARM, RR. BRAKE STOPPER

43431-124-740

Unavailable

SPRING, STOPPER ARM

43434-250-000

$2.00

SWINGARM, RR. (NOT AVAILABLE)

52100-098-670Z

Unavailable

BOLT, SWINGARM PIVOT This part replaces 90121-098-010.

90121-098-970

Unavailable

BOLT, SWINGARM PIVOT

90121-098-970

Unavailable

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, HEX. (10MM)

94001-10000-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, PLAIN (10MM)

94101-10000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

PIN, LOCK (8MM)

94251-08000

$1.49
