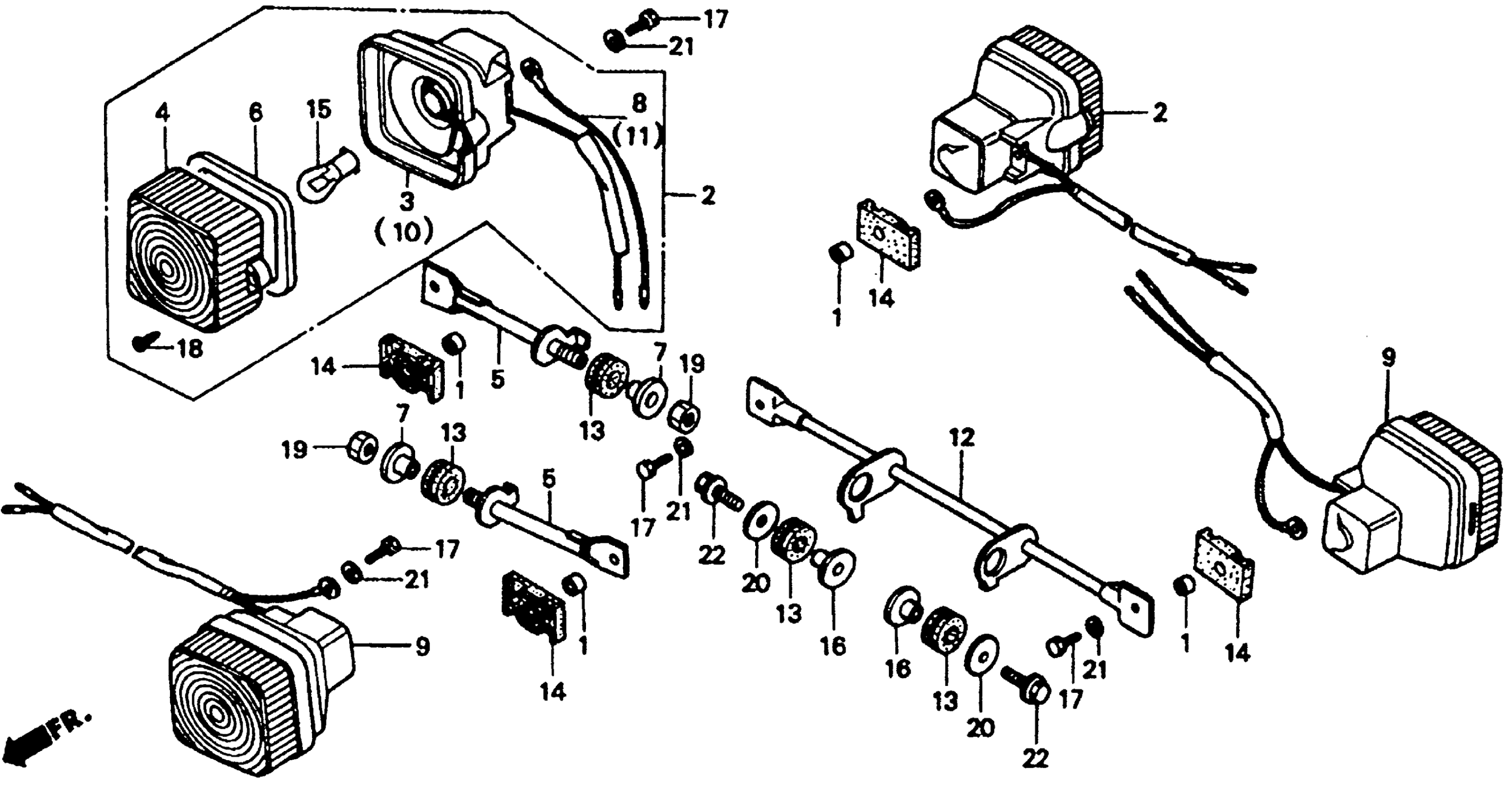

Honda CT70A (94) MOTORCYCLE, JPN, VIN# JH2DB010-RK300001 TURN SIGNAL Diagram

#

Description
Price

1

COLLAR, AIR CLEANER HOUSING

17208-KE5-000

Unavailable

2

TURN SIGNAL, R. FR. This part replaces 33400-GS9-671.

33400-KG1-405

Unavailable

3

BASE, R. TURN SIGNAL This part replaces 33401-GS9-671.

33401-KG1-405

Unavailable

4

LENS, TURN SIGNAL (STANLEY)

33402-195-023

$8.74

5

STAY, FR. TURN SIGNAL

33406-GS9-671

Unavailable

6

GASKET, TURN SIGNAL LENS

33407-166-611

$5.78

7

COLLAR, TURN SIGNAL SETTING

33409-GS9-670

Unavailable

8

WIRE, TURN SIGNAL GROUND

33415-GS9-671

Unavailable

9

WINKER LIGHT ASSY This part replaces 33450-GS9-671.

33400-GK8-406

Unavailable

10

BASE, L. TURN SIGNAL This part replaces 33451-GS9-671.

33401-GK8-405

Unavailable

11

WIRE, TURN SIGNAL GROUND

33465-GS9-671

Unavailable

12

STAY, RR. TURN SIGNAL

33601-GAN-670

Unavailable

13

RUBBER, TURN SIGNAL BOLT SETTING

33606-428-610

Unavailable

14

RUBBER, TURN SIGNAL MOUNTING

33612-459-670

Unavailable

15

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

16

COLLAR (8X15)

80136-HF1-670

Unavailable

17

BOLT, HEX. (5X16)

92101-05016-0G

Unavailable

18

SCREW, TAPPING (4X16)

93901-14480

Unavailable

19

NUT, HEX. (10MM)

94001-10070-0S

Unavailable

20

WASHER, PLAIN (8MM)

94103-08000

$1.49

21

WASHER, SPRING (5MM)

94111-05700

$1.49

22

BOLT, FLANGE (8X30)

95801-08030-00

$1.57
