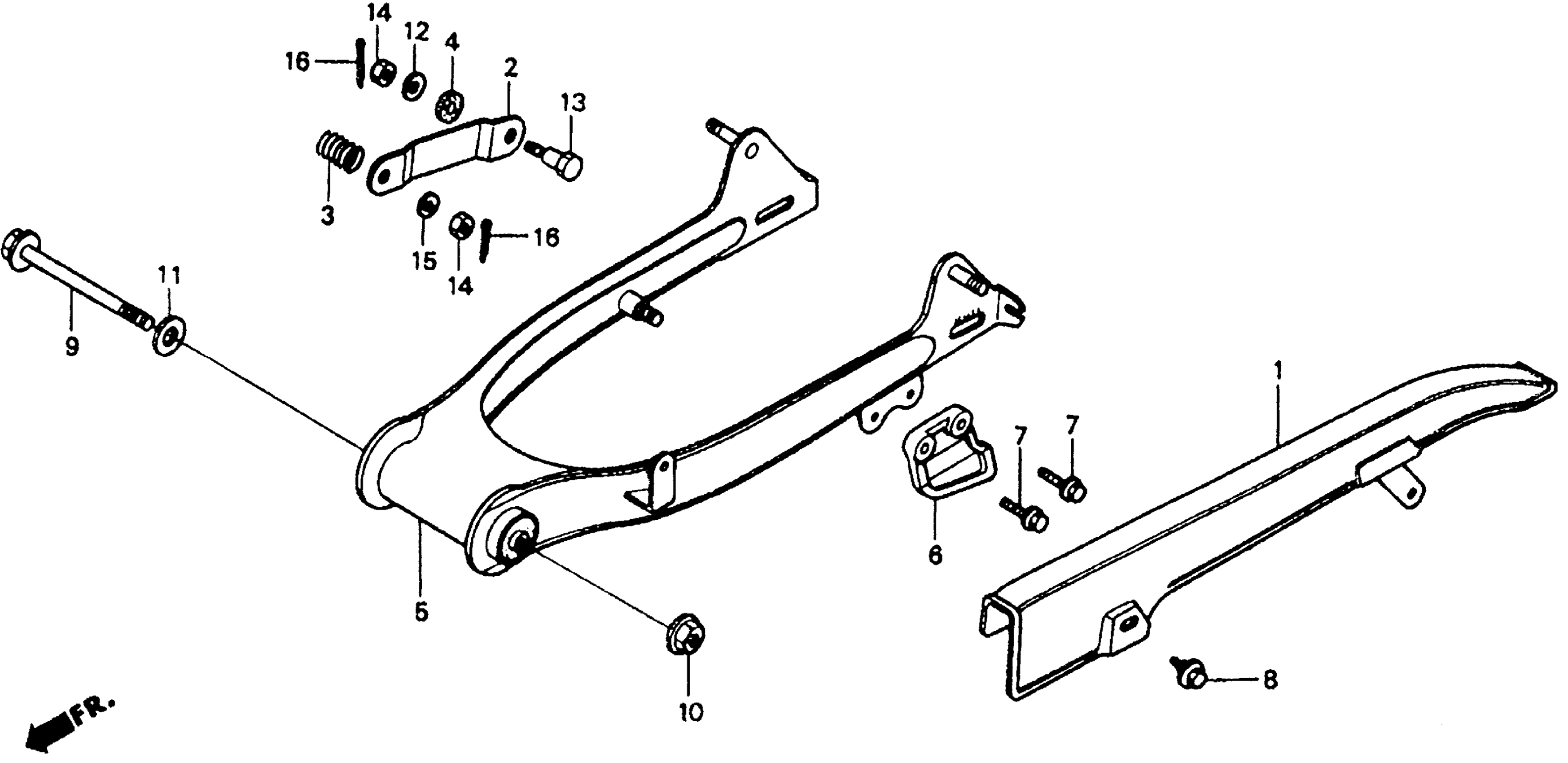

Honda CT70A (94) MOTORCYCLE, JPN, VIN# JH2DB010-RK300001 SWINGARM Diagram

CASE, DRIVE CHAIN

40510-GB2-000

Unavailable

ARM, RR. BRAKE STOPPER

43431-124-740

Unavailable

SPRING, STOPPER ARM

43434-250-000

$2.00

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

SWINGARM ASSY. *R157* (ITALIAN RED) This part replaces 52000-GAN-670ZA.

52000-126-900ZE

Unavailable

SWINGARM ASSY. *R157* (ITALIAN RED)

52000-126-900ZE

Unavailable

GUARD, CHAIN

52156-GAN-670

$42.30

BOLT, FLANGE (6MM)

90110-147-000

$3.83

BOLT, FLANGE (6MM)

90114-126-900

$3.26

BOLT, FLANGE (10X130)

90119-MJ0-000

$10.81

NUT, U (10MM)

90304-GE8-003

$3.67

WASHER (10MM)

90411-706-000

Unavailable

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

BOLT A, BRAKE STOPPER

92811-10000

$2.92

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49
