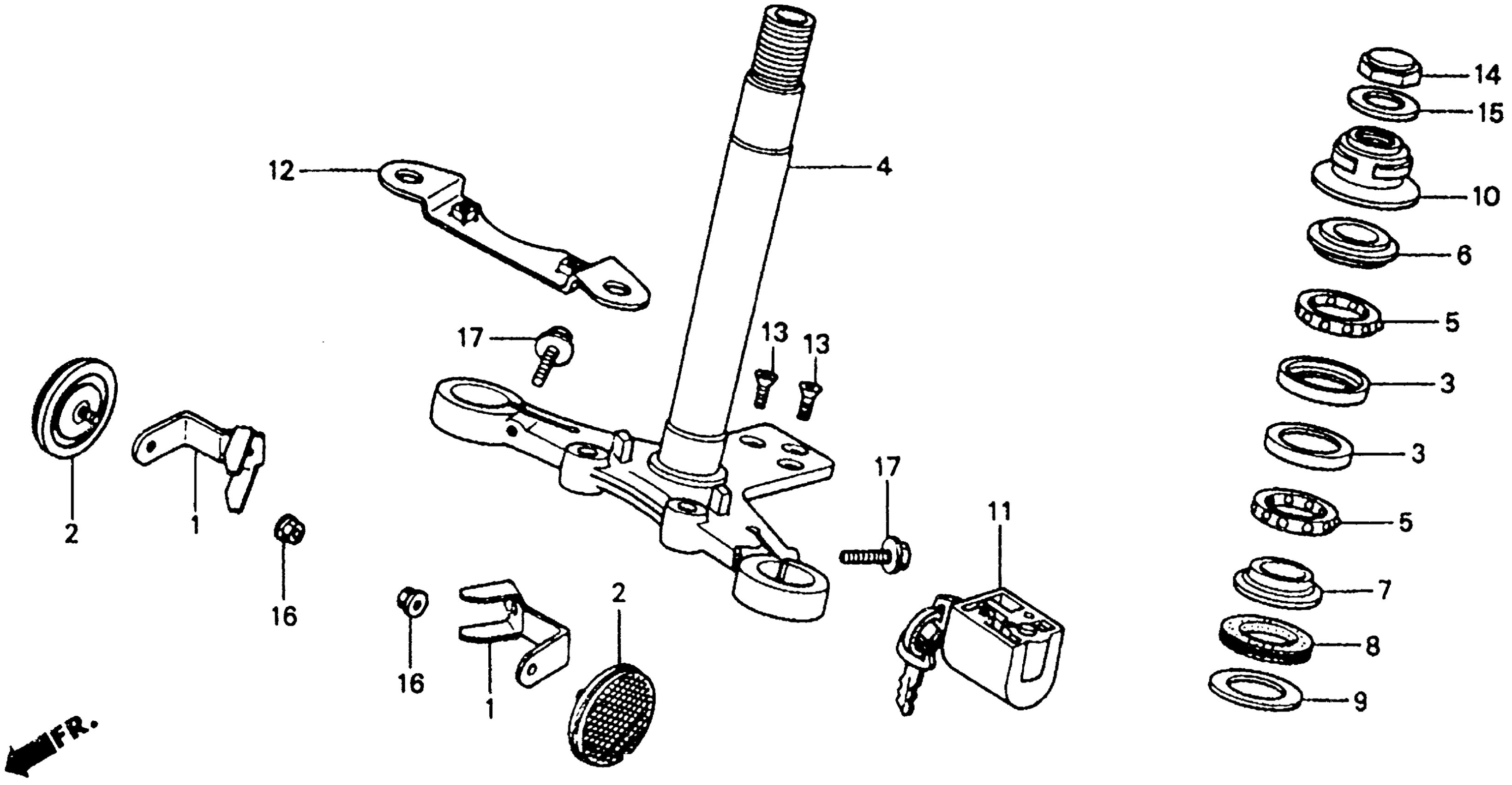

Honda CT70A (94) MOTORCYCLE, JPN, VIN# JH2DB010-RK300001 STEERING STEM Diagram

STAY, FR. REFLEX REFLECTOR

33740-126-770

Unavailable

REFLECTOR, FR. REFLEX

33741-102-870

$32.19

REFLECTOR, FR. REFLEX This part replaces 33741-428-671.

33741-102-870

$32.19

RACE, STEERING BALL

50301-041-010

$11.13

STEM, STEERING

53200-GAN-670

Unavailable

BALL ASSY., STEERING STEEL (KATO HATSUJO)

53210-GS9-003

$17.01

RACE, STEERING TOP CONE

53211-028-010

$9.96

RACE, STEERING CONE (LOWER)

53212-030-010

$9.63

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.36

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$2.74

THREAD, STEERING HEAD TOP

53220-098-670

$15.11

LOCK, HANDLEBAR

53600-086-007

$43.61

PLATE, HEADLIGHT BRACKET SETTING (NOT AVAILABLE)

61110-126-770

Unavailable

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.64

NUT, STEERING STEM

90304-159-000

$6.54

WASHER, STEERING STEM

90503-051-870

$2.58

NUT, FLANGE (6MM)

94050-06000

$0.59

BOLT, FLANGE (8X28)

95701-08028-07

Unavailable
