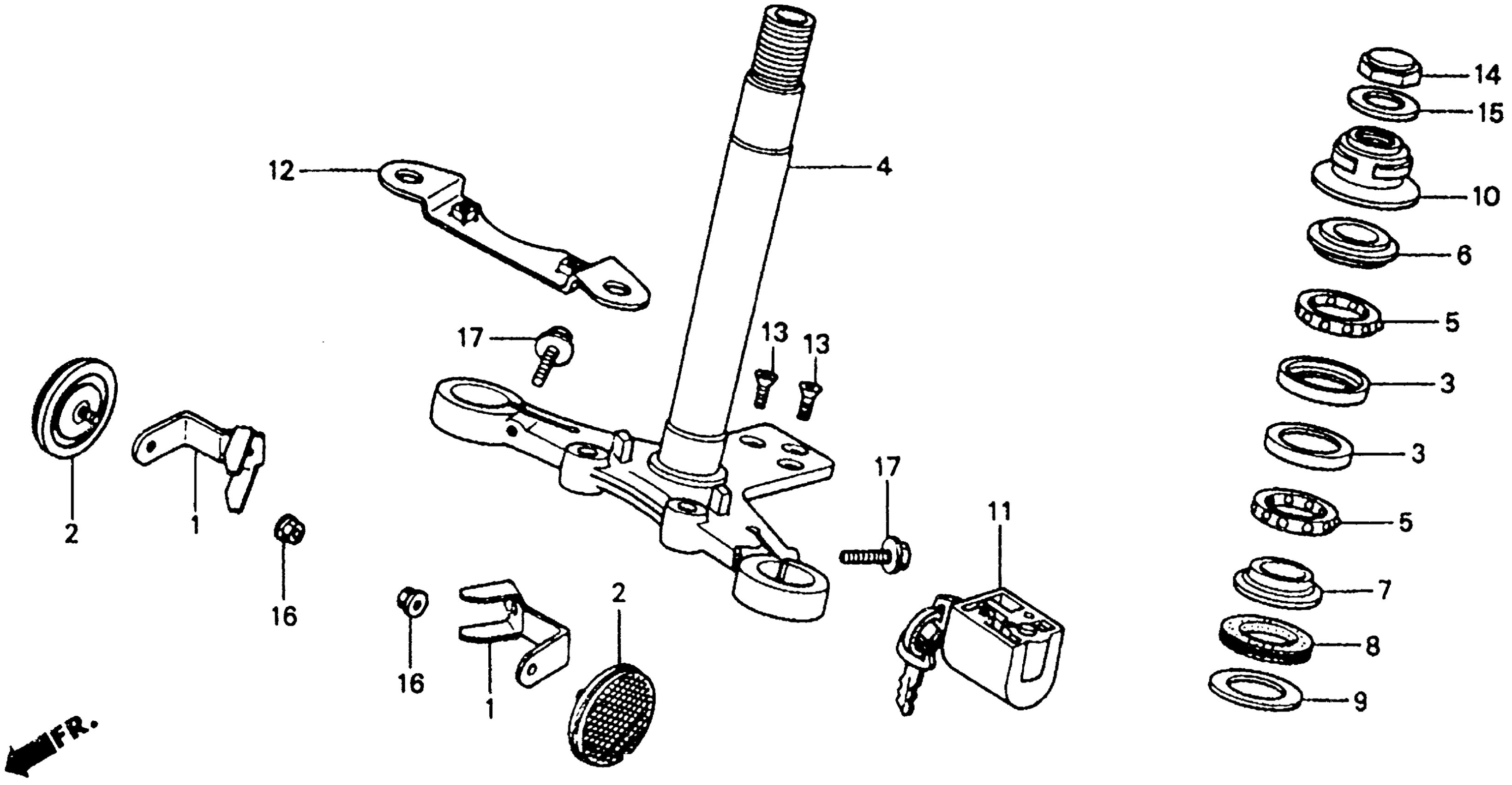

Honda CT70A (94) MOTORCYCLE, JPN, VIN# JH2DB010-RK300001 STEERING STEM Diagram

STAY, FR. REFLEX REFLECTOR

33740-126-770

Unavailable

REFLECTOR, FR. REFLEX

33741-102-870

$35.84

REFLECTOR, FR. REFLEX This part replaces 33741-428-671.

33741-102-870

$35.84

RACE, STEERING BALL

50301-041-010

$12.39

STEM, STEERING

53200-GAN-670

Unavailable

BALL ASSY., STEERING STEEL (KATO HATSUJO)

53210-GS9-003

$18.95

RACE, STEERING TOP CONE

53211-028-010

$11.09

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

THREAD, STEERING HEAD TOP

53220-098-670

$16.83

LOCK, HANDLEBAR

53600-086-007

$47.89

PLATE, HEADLIGHT BRACKET SETTING (NOT AVAILABLE)

61110-126-770

Unavailable

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

NUT, STEERING STEM

90304-159-000

$7.02

WASHER, STEERING STEM

90503-051-870

$2.84

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (8X28)

95701-08028-07

$1.49
