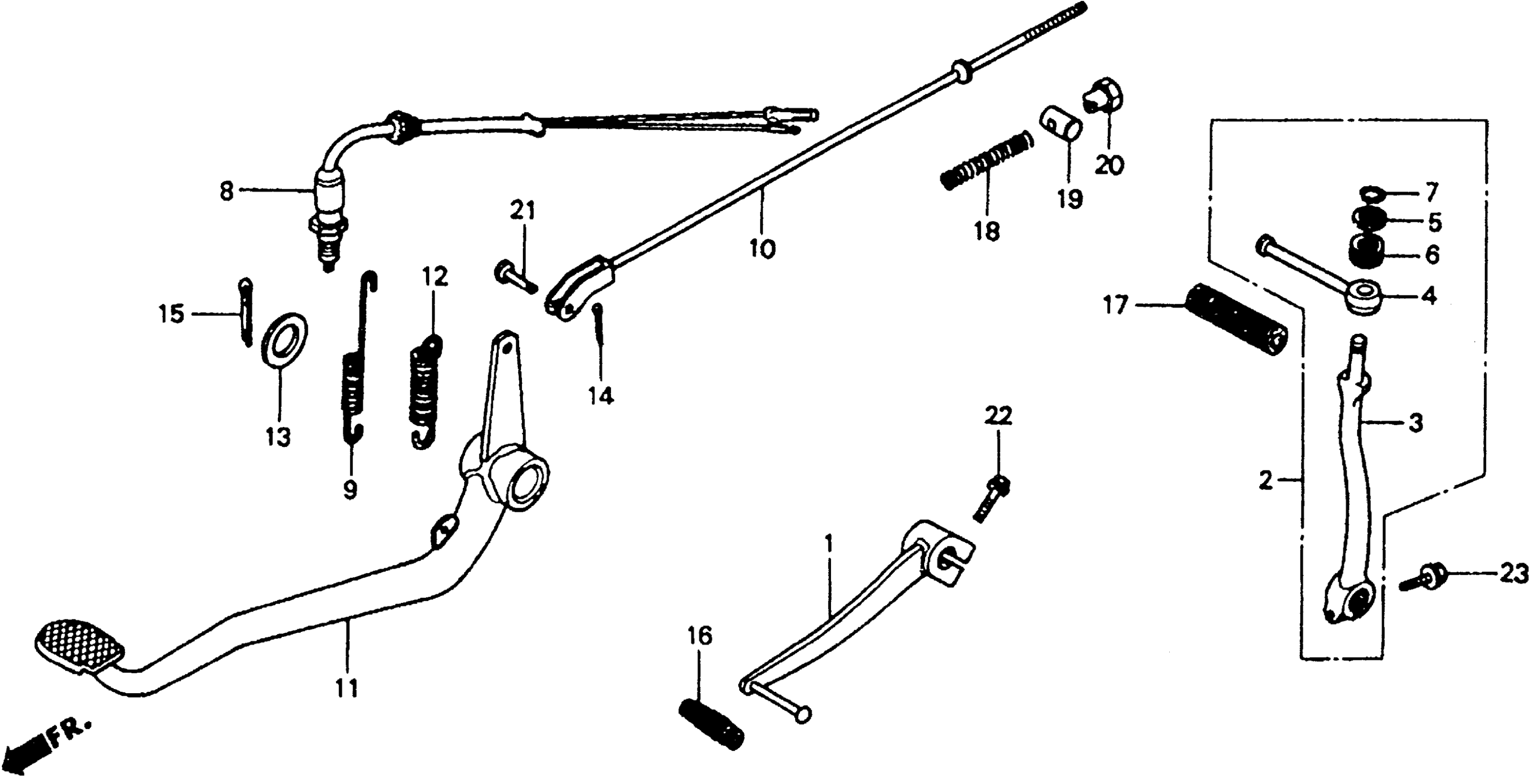

Honda CT70A (94) MOTORCYCLE, JPN, VIN# JH2DB010-RK300001 PEDAL Diagram

PEDAL, GEARSHIFT

24701-GAN-670

Unavailable

ARM ASSY., KICK STARTER

28300-126-770

Unavailable

ARM, KICK STARTER

28301-126-770

Unavailable

PEDAL, KICK STARTER

28302-126-770

Unavailable

SWITCH ASSY., RR. STOP

35350-126-900

Unavailable

SPRING, STOP SWITCH

35357-126-900

Unavailable

ROD, RR. BRAKE

43451-126-900

Unavailable

PEDAL, BRAKE

46500-126-900

Unavailable

SPRING, BRAKE PEDAL

46514-126-900

Unavailable

WASHER (17X22)

90521-028-000

$1.71

PIN, SPLIT (2.0X12)

94201-20120

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

PIN, SPLIT (3.0X45)

94201-30450

$0.94

RUBBER, CHANGE PEDAL

95011-40000

$1.14

RUBBER A, KICK STARTER

95011-51000

$3.44

SPRING A, BRAKE ROD

95014-73100

$1.17

JOINT B, BRAKE ARM

95015-32001

$0.86

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.75

PIN C, JOINT

95015-53000

$2.85

BOLT, FLANGE (6X20)

95701-06020-07

$1.48

BOLT, FLANGE (6X22)

95701-06022-07

$0.86
