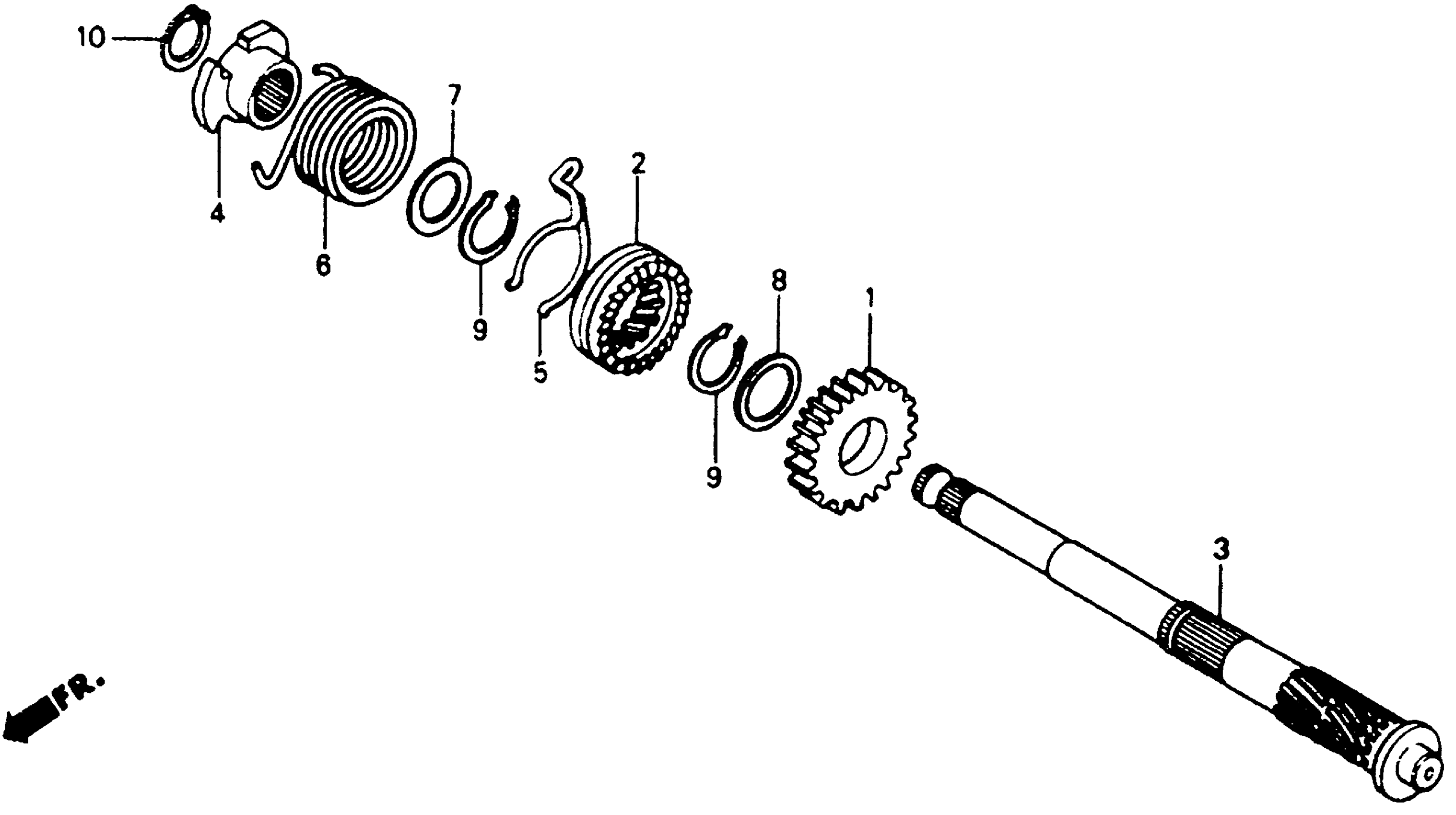

Honda CT70A (94) MOTORCYCLE, JPN, VIN# JH2DB010-RK300001 KICK STARTER SPINDLE Diagram

PINION, KICK STARTER (21T)

28211-086-700

$76.37

RATCHET, STARTER DRIVE

28221-086-700

$52.25

SPINDLE, KICK STARTER

28251-086-701

$87.39

RETAINER, KICK SPRING This part replaces 28262-041-730.

28262-041-731

$16.77

RETAINER, KICK SPRING

28262-041-731

$16.77

SPRING, STARTER PINION FRICTION

28271-121-690

$4.17

SPRING, KICK STARTER (NIPPON HATSUJO)

28281-035-003

$8.38

SPRING, KICK STARTER (CHUO HATSUJO)

28281-035-018

$10.10

WASHER (17MM)

90452-115-000

$2.20

WASHER, THRUST (20MM)

90454-107-000

$1.80

SET-RING (20MM)

90605-200-000

$2.92

CIRCLIP (OUTER) (16MM)

94510-16000

$1.49
