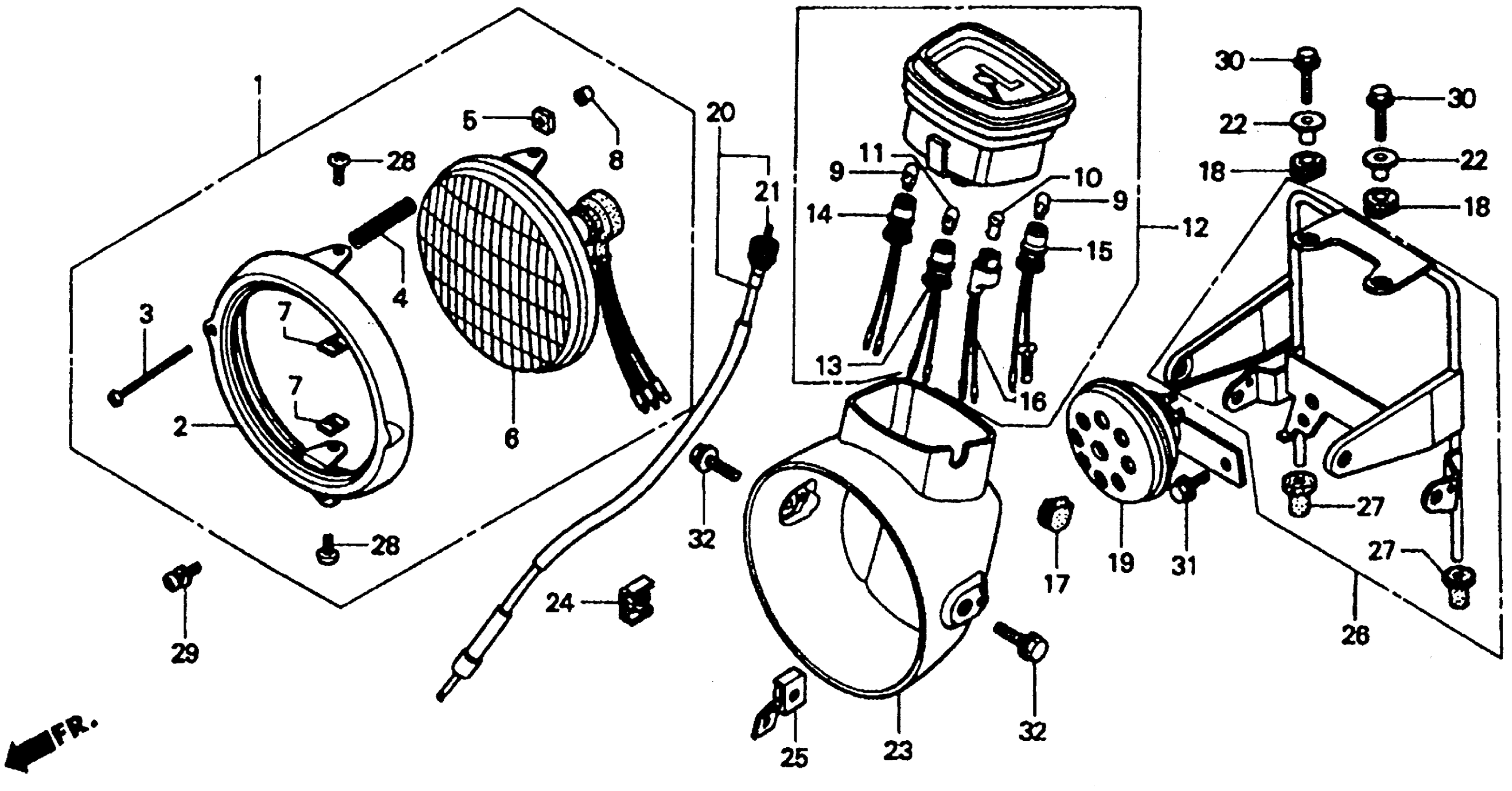

Honda CT70A (94) MOTORCYCLE, JPN, VIN# JH2DB010-RK300001 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V 35/36.5W)

33100-GAN-670

Unavailable

2

RIM, HEADLIGHT

33101-243-670

$33.52

3

SCREW, HEADLIGHT BEAM ADJUSTING

33103-329-003

Unavailable

3

SCREW, HEADLIGHT BEAM ADJUSTING This part replaces 33103-329-671.

33103-329-003

Unavailable

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-200-023

$3.01

5

NUT, HEADLIGHT BEAM ADJ. (NOT AVAILABLE)

33117-200-023

Unavailable

6

HEADLIGHT UNIT

33120-KG1-770

Unavailable

7

NUT, UNIT HOLDER

33128-200-033

Unavailable

8

COVER, SCREW

33136-426-830

$1.89

9

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

9

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

9

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

9

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

10

BULB, WEDGE BASE (12V2W) (TOSHIBA)

34908-GB4-700

Unavailable

11

BULB, WEDGE BASE (12V 1.7W) (STANLEY)

34908-MB9-871

$2.78

12

SPEEDOMETER ASSY. (MPH) (NS)

37200-GAN-671

Unavailable

13

SOCKET, ILLUMINATION

37224-GAN-671

Unavailable

14

SOCKET, TURN SIGNAL PILOT

37225-GAN-671

Unavailable

15

SOCKET, NEUTRAL

37226-GAN-671

Unavailable

16

SOCKET, HIGH BEAM PILOT This part replaces 37227-459-860.

37227-459-861

Unavailable

16

SOCKET, HIGH BEAM PILOT

37227-459-861

Unavailable

17

PLUG, HEADLIGHT CASE (NOT AVAILABLE)

37239-459-670

Unavailable

18

RUBBER, SPEEDOMETER SETTING

37242-429-000

Unavailable

19

HORN This part replaces 38110-KJ2-672.

38110-KJ2-673

Unavailable

20

CABLE ASSY., SPEEDOMETER

44830-126-900

Unavailable

21

CABLE (INNER)

44831-126-900

Unavailable

22

COLLAR (6.3X13)

50324-425-010

$5.05

23

CASE, HEADLIGHT *R157* (ITALIAN RED)

61301-GAN-670ZA

Unavailable

24

WASHER, HEADLIGHT CASE (NOT AVAILABLE)

61303-230-620

Unavailable

25

NUT, HEADLIGHT CASE

61303-459-910

Unavailable

26

BRACKET, HEADLIGHT CASE

61311-GAN-670

Unavailable

27

BOOT, HEADLIGHT BRACKET

61312-149-300

$2.56

28

SCREW, PAN (5X8)

93500-05008-0H

$1.49

29

SCREW-WASHER (5X12)

93891-05012-00

$1.49

29

SCREW-WASHER (5X12) This part replaces 93891-05012-10.

93891-05012-00

$1.49

30

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

31

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

32

BOLT, FLANGE (10X25)

95701-10025-07

$1.49
