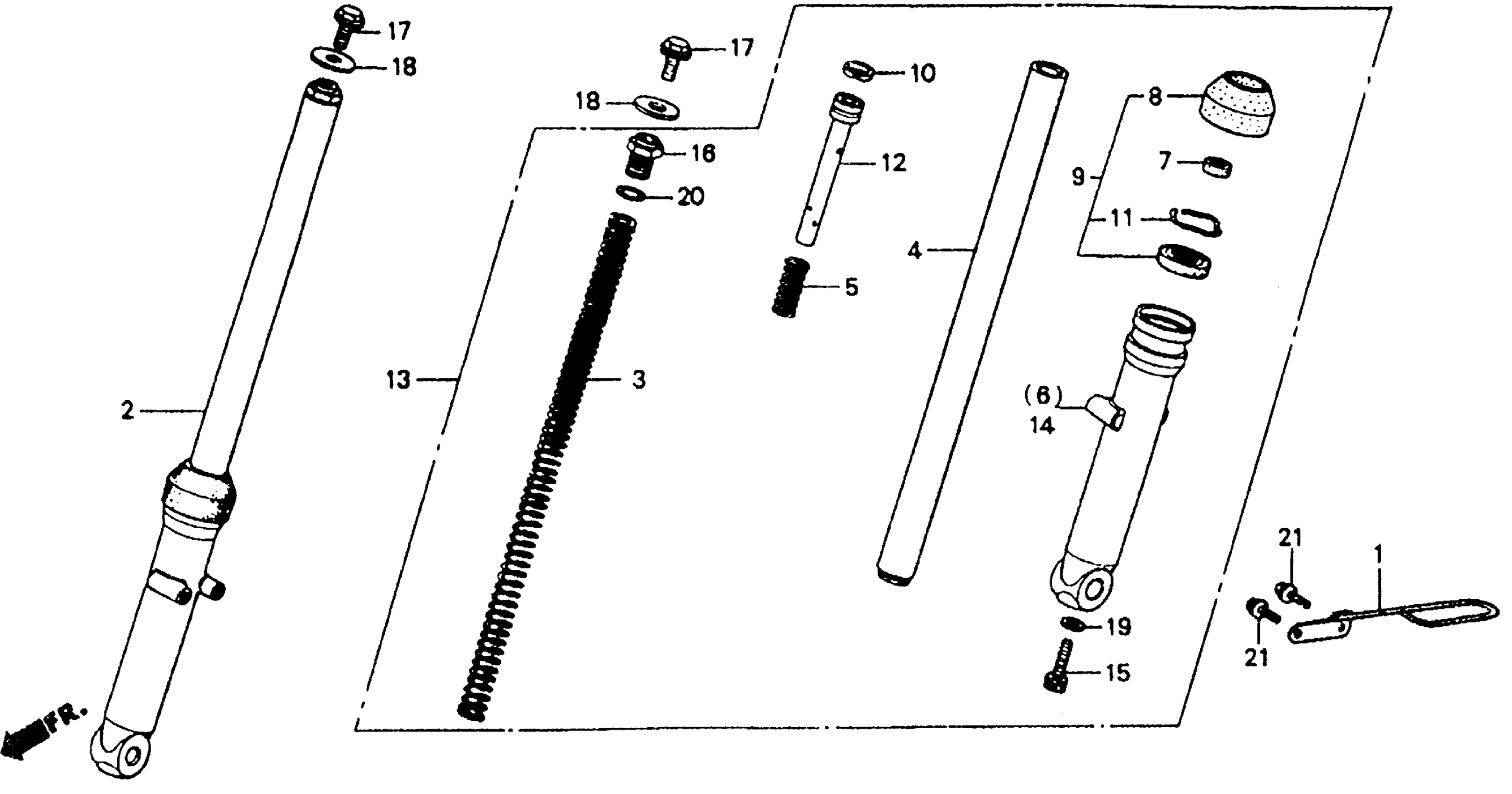

Honda CT70A (94) MOTORCYCLE, JPN, VIN# JH2DB010-RK300001 FRONT FORK Diagram

#

Description
Price

1

GUIDE, BRAKE CABLE

45465-GAN-670

Unavailable

2

FORK ASSY., R. FR. (SHOWA)

51400-126-772

Unavailable

3

SPRING, FR. FORK

51401-126-771

Unavailable

4

PIPE, FR. FORK

51410-126-771

Unavailable

5

SPRING, REBOUND

51412-088-931

Unavailable

6

CASE, R. FR. (LOWER)

51421-126-771

Unavailable

7

SEAT, FR. FORK (LOWER)

51424-065-901

Unavailable

8

DUST SEAL

51425-GM0-003

Unavailable

9

OIL SEAL SET

51433-GM0-305

Unavailable

10

RING, PISTON

51437-065-901

Unavailable

11

RING, OIL SEAL STOPPER

51466-098-901

Unavailable

12

PIPE, SEAT

51470-126-771

Unavailable

13

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-126-772

Unavailable

14

CASE, L. FR. (LOWER)

51521-126-771

Unavailable

15

BOLT, SOCKET (8X27)

90116-383-721

$5.13

16

BOLT, FORK

90123-126-771

Unavailable

17

BOLT, FLANGE (10X20)

90130-126-900

$4.49

18

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

19

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

20

O-RING (14.8X2.4)

91356-065-901

Unavailable

21

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
