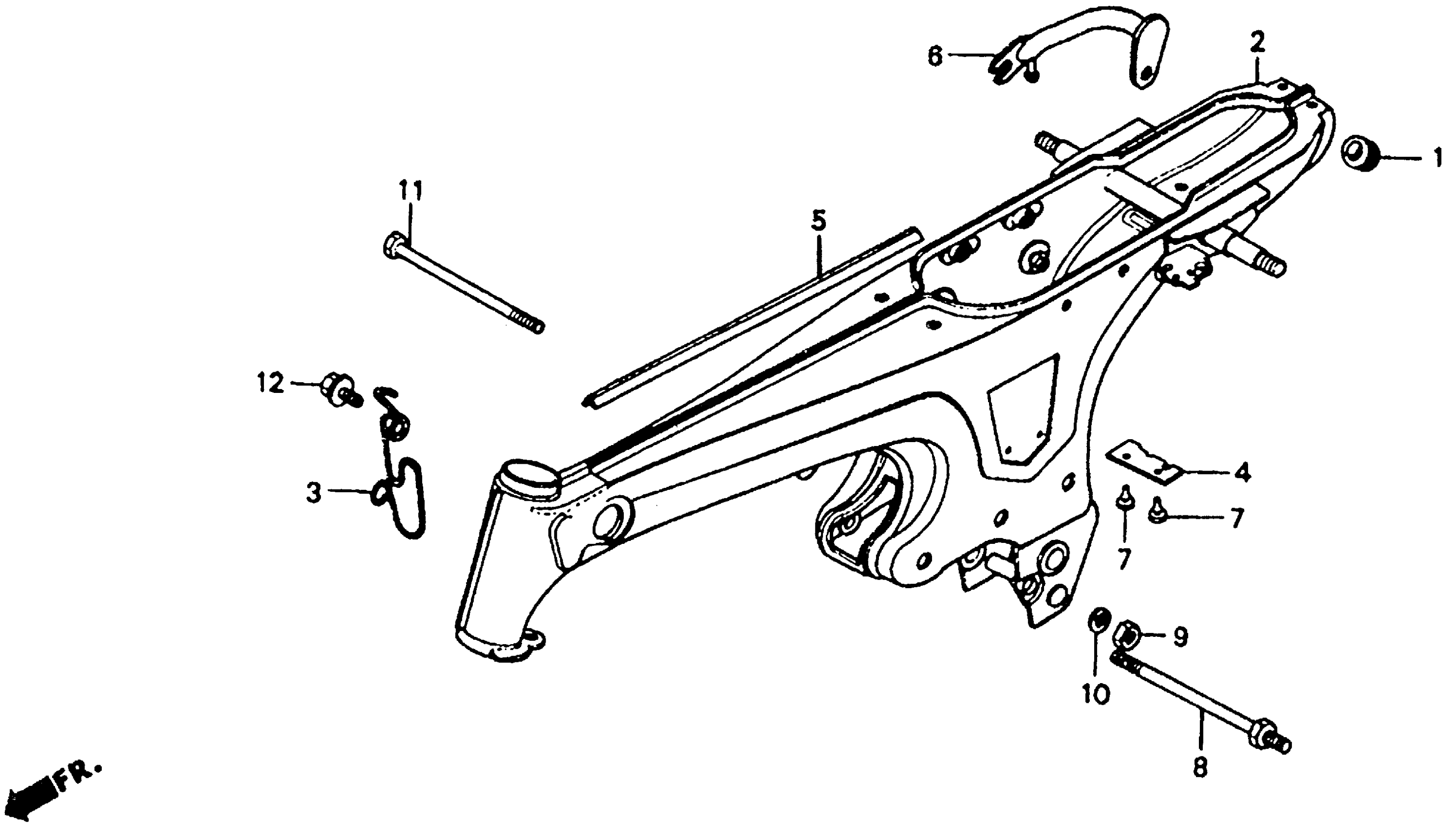

Honda CT70A (94) MOTORCYCLE, JPN, VIN# JH2DB010-RK300001 FRAME Diagram

GROMMET B, TUBE

36038-657-000

Unavailable

FRAME *R157* (WOL) (ITALIAN RED)

50100-GAN-670ZA

Unavailable

CLIP, WIRE HARNESS (NOT AVAILABLE)

50191-125-770

Unavailable

SPLASH GUARD, FRAME

50199-GAN-670

Unavailable

MOLDING, FRAME

50305-098-000

$14.36

GRIP, RR.

50311-GAN-670

Unavailable

GROMMET, PAD SET

64264-438-850

Unavailable

BOLT A, RR. ENGINE SUPPORT

90112-003-000

$7.79

NUT, HEX. (8MM)

94030-08000

Unavailable

WASHER, SPRING (8MM)

94111-08000

$0.91

BOLT, HEX. (8X115)

95301-08115-00

$3.13

BOLT, FLANGE (6X16)

95701-06016-00

$1.50
