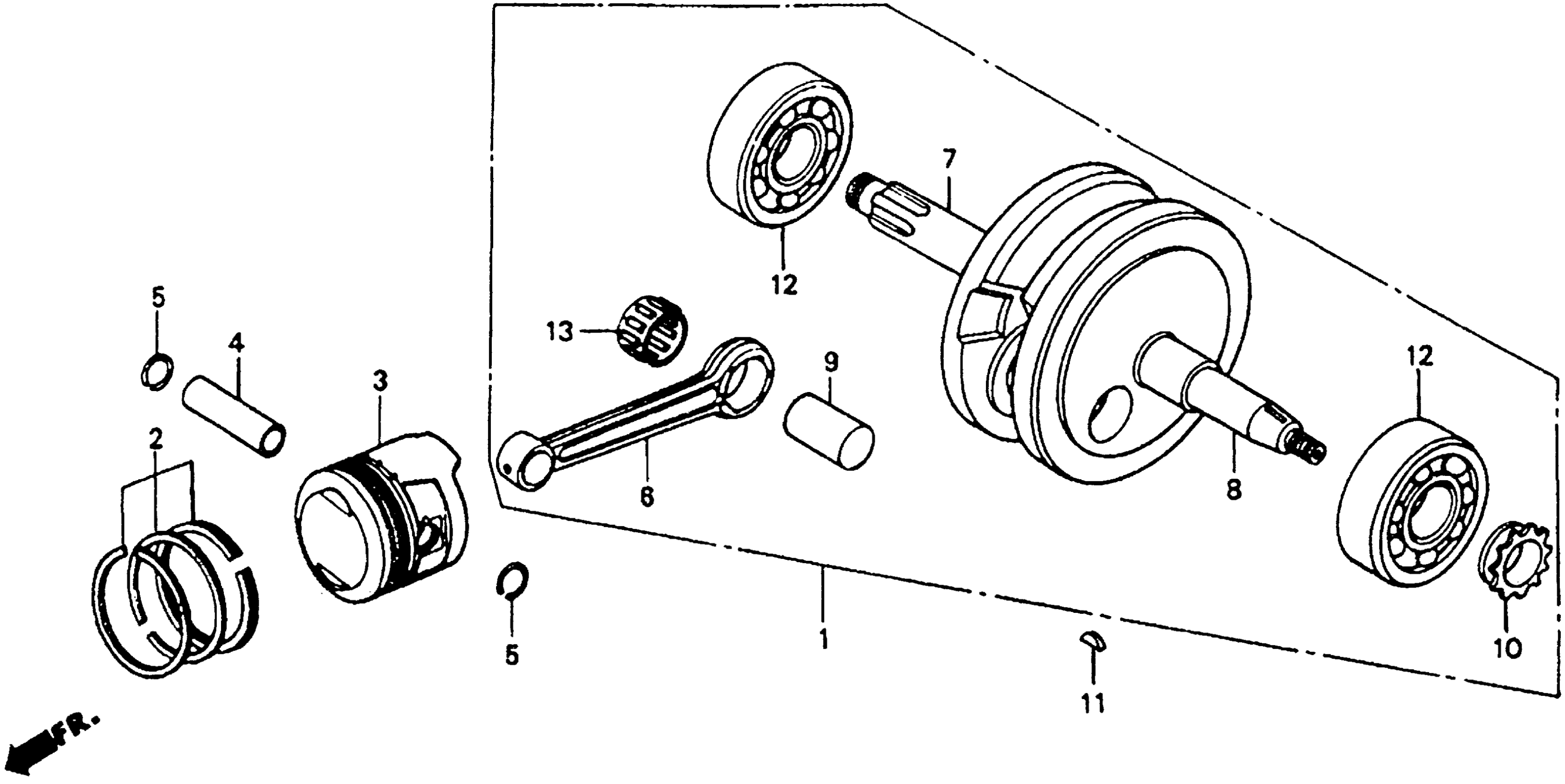

Honda CT70A (94) MOTORCYCLE, JPN, VIN# JH2DB010-RK300001 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

13000-GB5-930

Unavailable

2

RING SET, PISTON (STD) This part replaces 13011-GT0-305.

13011-HF7-305

$31.96

2

RING SET, PISTON (OVER SIZE) (0.25) | (Optional). This part replaces 13012-GT0-305.

13021-HF7-305

$31.96

2

RING SET, PISTON (OVER SIZE) (0.50) | (Optional). This part replaces 13013-GT0-305.

13031-HF7-305

$24.88

2

RING SET, PISTON (OS 0.75) (RIKEN) | (Optional).

13014-GT0-305

Unavailable

2

RING SET, PISTON (1.00) | (Optional). This part replaces 13015-GT0-305.

13051-HF7-305

Unavailable

3

PISTON (STD) (ART) This part replaces 13101-GB5-930.

13101-GCF-A20

$44.37

3

PISTON (OS 0.25) | (Optional).

13102-GB5-306

$35.57

3

PISTON (OS 0.50) | (Optional).

13103-GB5-306

$30.07

3

PISTON (OS 0.75) | (Optional).

13104-GB5-306

Unavailable

3

PISTON (1.00) | (Optional).

13105-GB5-306

Unavailable

4

PIN, PISTON

13111-GB0-910

$10.49

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$0.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$0.49

6

ROD, CONNECTING

13201-GF6-300

$75.74

7

CRANKSHAFT, R.

13311-GB5-930

$122.57

8

CRANKSHAFT, L.

13321-GB5-930

Unavailable

9

PIN, CRANK

13381-GF6-300

$35.06

10

SPROCKET, TIMING (14T)

14311-035-000

$17.30

11

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.52

11

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.52

11

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.52

12

BEARING, RADIAL BALL (6304)

91001-GF6-004

$18.37

12

BEARING, RADIAL BALL (6304) This part replaces 91001-035-008.

91001-GF6-004

$18.37

13

BEARING, CONNECTING ROD (RED)

91101-GF6-003

$21.06

13

BEARING, CONNECTING ROD (BLUE)

91102-GF6-003

$21.06

13

BEARING, CONNECTING ROD (WHITE)

91103-GF6-003

$21.06
