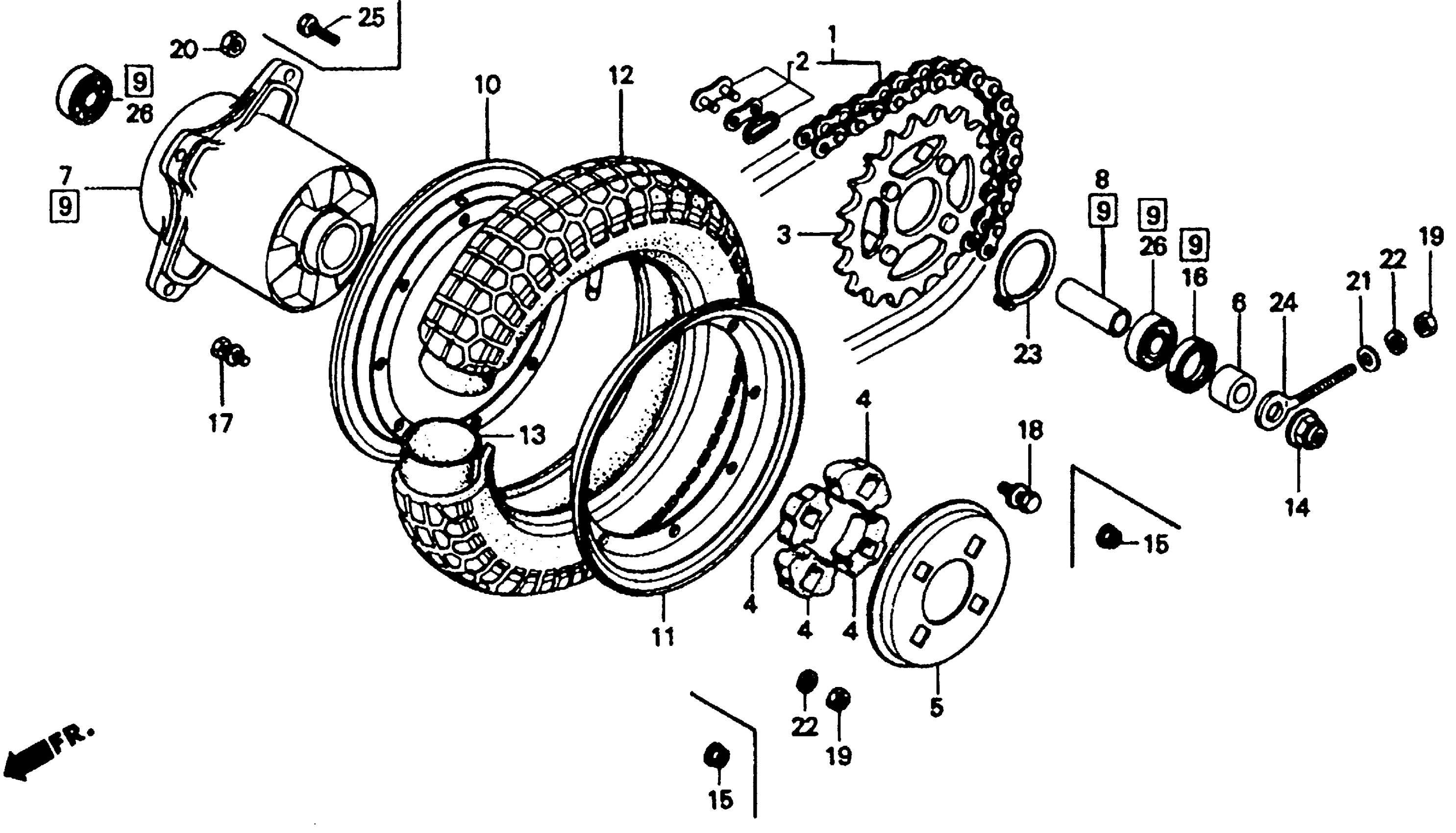

Honda CT70A (93) MOTORCYCLE, JPN, VIN# JH2DB010-PK200001 REAR WHEEL Diagram

CHAIN, DRIVE

405W3-GB2-505

Unavailable

CHAIN, DRIVE This part replaces 40530-GB3-722.

405W3-GB2-505

Unavailable

CHAIN, DRIVE This part replaces 40530-098-971.

405W3-GB2-505

Unavailable

CHAIN, DRIVE This part replaces 40530-098-972.

405W3-GB2-505

Unavailable

CHAIN, DRIVE This part replaces 40530-098-973.

405W3-GB2-505

Unavailable

CHAIN, DRIVE This part replaces 40530-098-974.

405W3-GB2-505

Unavailable

MASTER LINK (DAIDO)

40531-098-003

$3.74

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

SPROCKET, FINAL DRIVEN (35T)

41201-126-920

Unavailable

DAMPER, RR. WHEEL

41241-051-000

$7.31

COVER, RR. WHEEL DAMPER

41245-051-000

$4.79

COLLAR, RR. WHEEL SIDE

42304-098-000

$6.14

HUB, RR. WHEEL *NH196* (ROSS WHITE)

42601-098-010ZC

Unavailable

COLLAR, RR. AXLE DISTANCE

42620-098-000

Unavailable

RIM, R. WHEEL *NH196* (ROSS WHITE)

42701-GAN-771ZA

Unavailable

RIM, L. WHEEL *NH196* (ROSS WHITE)

42702-GAN-771ZA

Unavailable

TIRE, WHEEL (3.50-10) (2PR/41J) (BS)

42711-098-166

Unavailable

TUBE, WHEEL (3.50-10) (BS)

42712-098-691

Unavailable

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

OIL SEAL (26X37X6) (ARAI)

90753-051-003

$7.66

OIL SEAL (26X37X6) This part replaces 90753-051-005.

90753-051-003

$7.66

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

CIRCLIP (OUTER) (50MM)

94511-50000

$2.25

ADJUSTER S, R. CHAIN

95014-10010

$4.53

BOLT, HEX. (8X25)

95201-08025-00

Unavailable

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84
