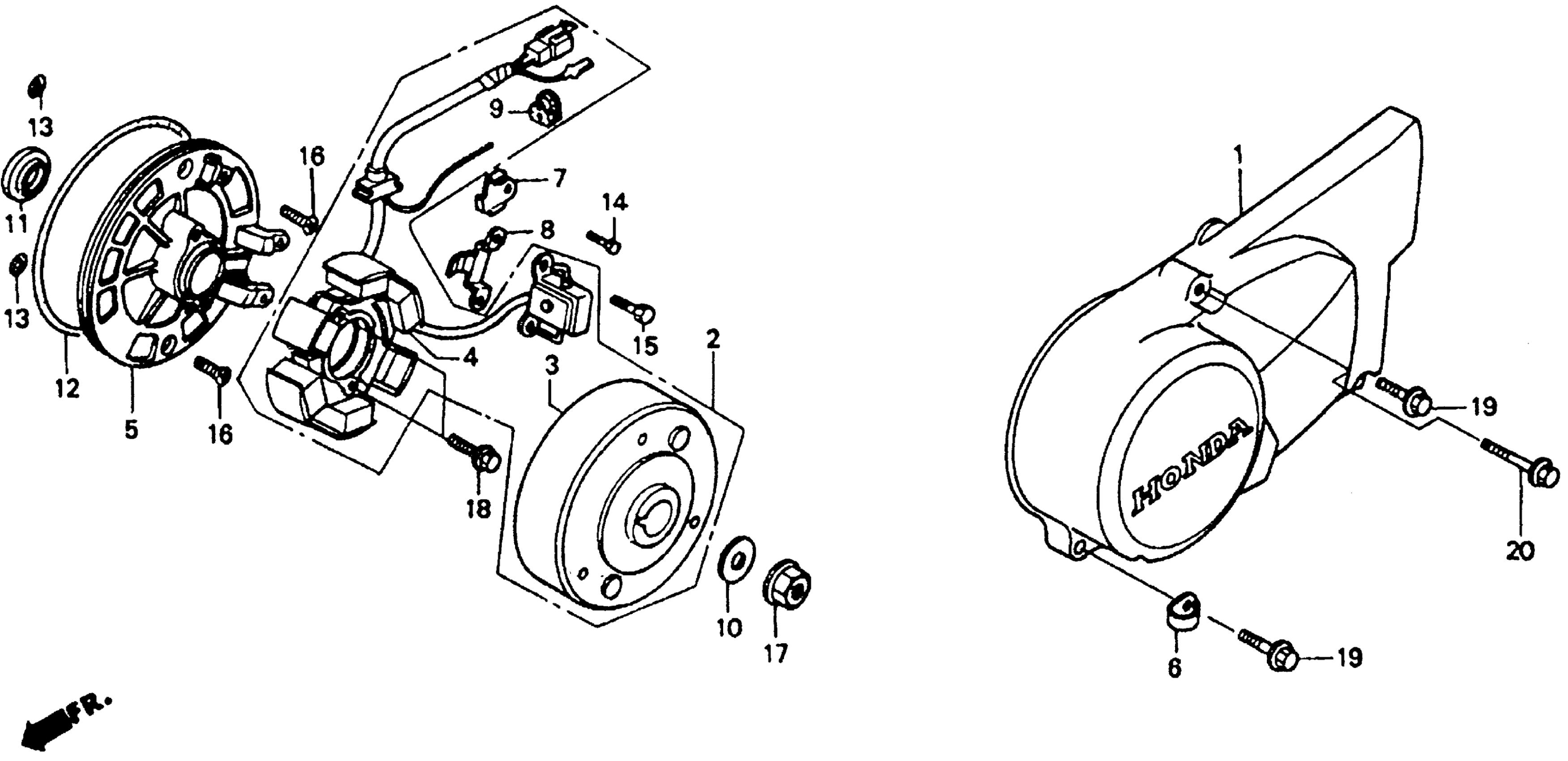

Honda CT70A (93) MOTORCYCLE, JPN, VIN# JH2DB010-PK200001 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11341-GAN-770

Unavailable

FLYWHEEL (MITSUBA)

31110-GAN-671

Unavailable

STATOR (MITSUBA)

31120-GAN-671

Unavailable

BASE, STATOR

31131-GS9-020

$43.64

CLAMP, ALTERNATOR WIRE

32961-GS9-010

$4.05

CLAMP, PULSER WIRE

32962-GS9-000

$4.71

GROMMET, NEUTRAL SWITCH WIRE

32981-GB4-770

Unavailable

WASHER, MAGNET FIXING

90426-035-000

$2.38

OIL SEAL (18.9X30X5) This part replaces 91202-GE0-003.

91202-GK4-722

$5.86

OIL SEAL (18.9X30X5) This part replaces 91202-GE0-015.

91202-GK4-722

$5.86

OIL SEAL (18.9X30X5)

91202-GK4-722

$5.86

O-RING (107X2) (ARAI)

91301-035-003

$6.73

O-RING (6X1.7) (ARAI)

91317-171-003

$2.80

BOLT, HEX. (5X6)

93301-05006-0H

$0.59

BOLT, HEX. (5X10)

93301-05010-0H

$0.59

SCREW, FLAT (6X16)

93600-06016-0A

$0.91

NUT, FLANGE (10MM)

94050-10000

$1.43

BOLT, FLANGE (6X22)

96001-06022-00

$1.15

BOLT, FLANGE (6X28)

96001-06028-00

$2.59

BOLT, FLANGE (6X35)

96001-06035-00

$1.29
