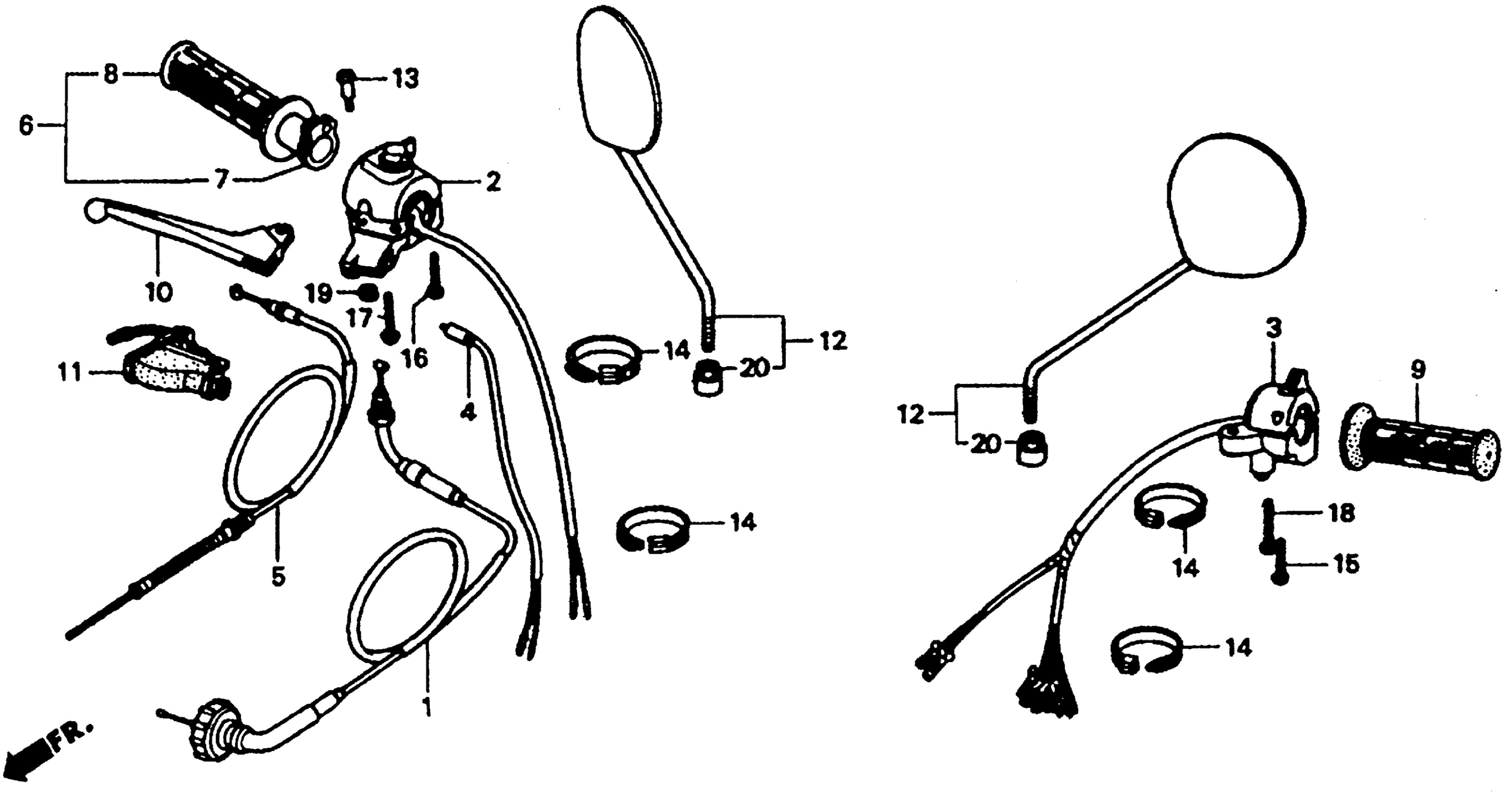

Honda CT70A (93) MOTORCYCLE, JPN, VIN# JH2DB010-PK200001 HANDLE SWITCH + CABLES + MIRRORS Diagram

CABLE SET, THROTTLE

17920-GAN-305

Unavailable

SWITCH ASSY., STOP

35130-GAN-770

Unavailable

SWITCH, TURN SIGNAL

35200-GAN-671

Unavailable

SWITCH ASSY., FR. STOP

35340-GAN-620

$19.20

CABLE, FR. BRAKE

45450-126-900

Unavailable

PIPE, THROTTLE GRIP This part replaces 53141-125-770.

53141-125-771

$15.29

RUBBER, R. GRIP

53165-181-000

$12.36

RUBBER, L. GRIP

53166-181-000

$12.36

LEVER, R. HANDLEBAR

53175-GN2-930

$16.40

COVER, R. HANDLE LEVER (NOT AVAILABLE)

53178-125-770

Unavailable

MIRROR ASSY. This part replaces 88110-GR1-405.

88210-165-506

Unavailable

MIRROR ASSY. This part replaces 88110-GZ5-701.

88210-165-506

Unavailable

MIRROR ASSY. This part replaces 88210-165-505.

88210-165-506

Unavailable

SCREW, HANDLE LEVER PIVOT (5X26)

90115-147-000

$2.72

BAND, WIRE

90650-KV6-003

$3.12

SCREW, PAN (5X25)

93500-05025-0G

$1.49

SCREW, PAN (5X28)

93500-05028-0G

$1.49

SCREW, PAN (5X32)

93500-05032-0G

$1.49

SCREW, PAN (5X40)

93500-05040-0G

$1.49

NUT, HEX. (5MM)

94001-05000-0S

$2.74

NUT, LOCK

90134-GM8-000

$2.33

NUT, LOCK This part replaces 90134-GZ5-000.

90134-GM8-000

$2.33
