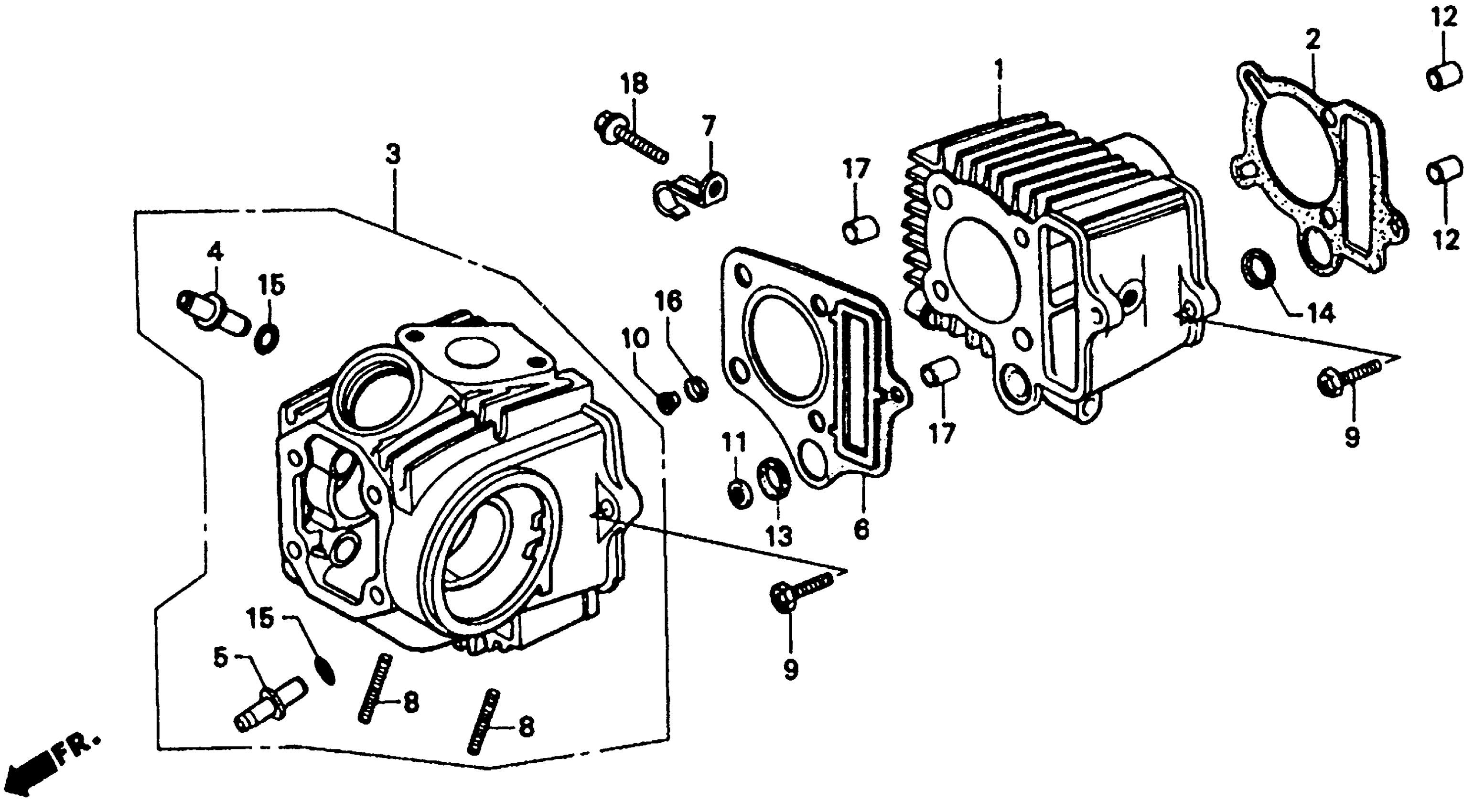

Honda CT70A (93) MOTORCYCLE, JPN, VIN# JH2DB010-PK200001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER

12101-GB0-910

$196.69

2

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$8.17

3

HEAD COMP,CYLINDE This part replaces 12200-GB5-930.

12200-GT0-751

Unavailable

3

HEAD COMP,CYLINDE This part replaces 12200-GB5-931.

12200-GT0-751

Unavailable

4

GUIDE, IN. VALVE (OS)

12237-GB4-305

$13.12

5

GUIDE, EX. VALVE (OS)

12245-GB4-305

$13.12

6

GASKET ASSY., CYLINDER HEAD

12250-GAN-770

Unavailable

7

CLIP, IGNITION WIRE

32906-061-000

$4.44

8

BOLT, STUD (6X32)

90033-041-020

$2.07

9

BOLT (6MM)

90082-035-010

$2.21

10

COLLAR (9.5MM)

90602-GB0-911

Unavailable

11

COLLAR (14.8MM)

90603-GB0-911

$2.95

12

PIN A, DOWEL (8X12) This part replaces 90702-GB6-910.

94301-08120

$2.69

12

PIN A, DOWEL (8X12)

94301-08120

$2.69

13

O-RING (14.5MM) This part replaces 91301-GB0-911.

91301-GF6-003

$6.38

13

O-RING (14.5MM)

91301-GF6-003

$6.38

14

GASKET, RUBBER (16MM)

91303-035-000

$4.66

15

O-RING (9X1.6) (ARAI) This part replaces 91305-028-158.

91305-028-900

Unavailable

15

O-RING (9X1.6) (ARAI)

91305-028-900

Unavailable

16

GASKET, RUBBER (9MM)

91306-141-000

$4.44

17

PIN, DOWEL (8X14)

94301-08140

$2.62

18

BOLT, FLANGE (6X20)

96001-06020-00

$1.15
