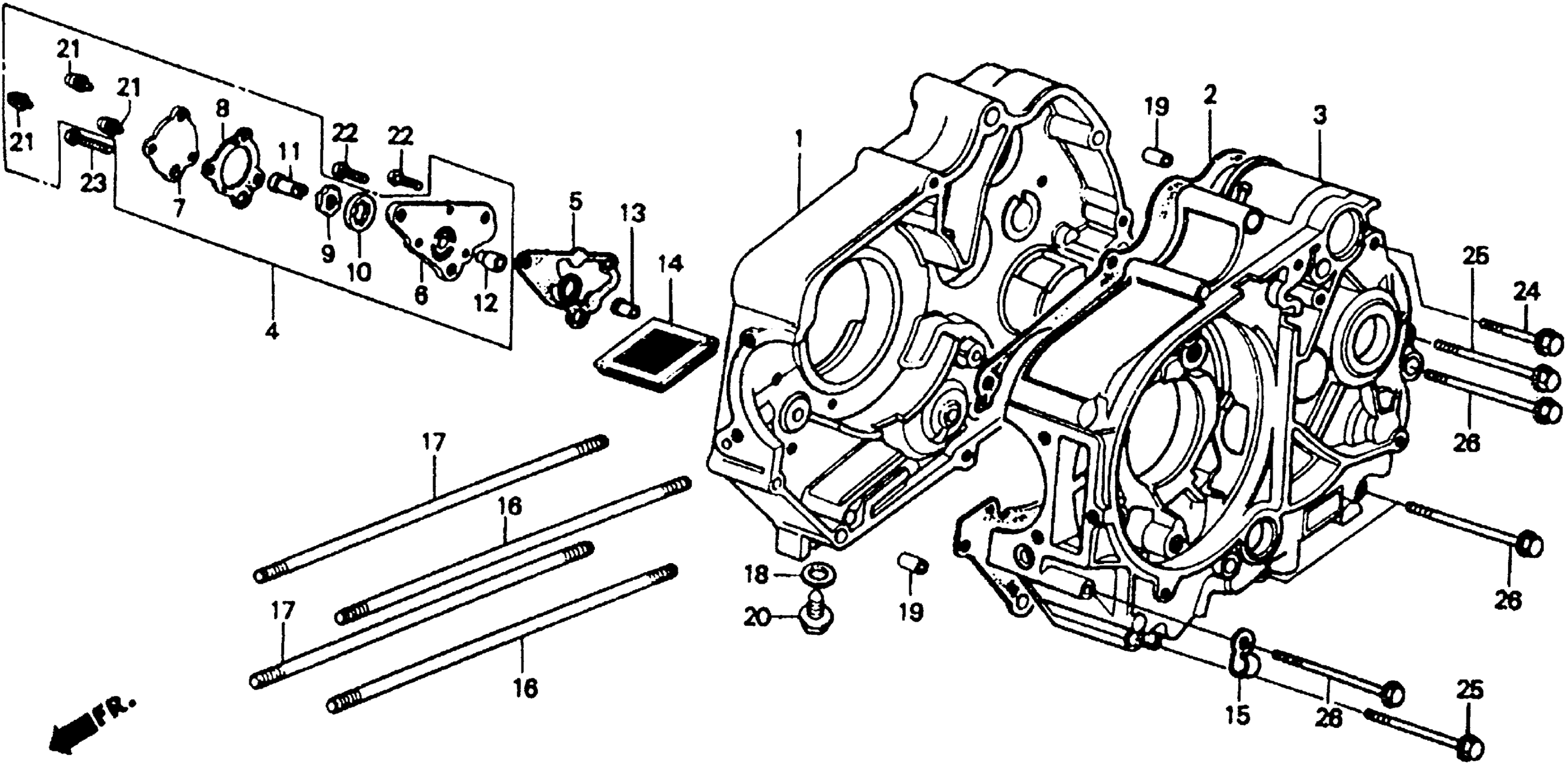

Honda CT70A (93) MOTORCYCLE, JPN, VIN# JH2DB010-PK200001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11100-GB4-010.

11100-GEL-A80

$276.26

2

GASKET, CRANKCASE This part replaces 11191-GW8-680.

11191-GW8-682

$14.29

3

CRANKCASE, L.

11200-GB4-020

Unavailable

4

PUMP SET, OIL

15100-GB4-305

Unavailable

4

PUMP SET, OIL This part replaces 15100-GB4-770.

15100-GB4-305

Unavailable

5

GASKET, OIL PUMP BODY

15119-178-000

$3.85

6

BODY, OIL PUMP

15311-GB4-770

Unavailable

7

COVER, OIL PUMP

15321-GB4-770

Unavailable

8

GASKET, OIL PUMP COVER

15329-035-003

$4.24

9

ROTOR, OIL PUMP (INNER)

15331-436-000

Unavailable

10

ROTOR, OIL PUMP (OUTER)

15332-436-000

Unavailable

11

DRIVESHAFT, OIL PUMP

15382-GB4-770

Unavailable

12

PIN, OIL PUMP KNOCK (NOT AVAILABLE)

15383-178-300

Unavailable

13

PIVOT, OIL PUMP

15384-178-000

$5.77

14

SCREEN, OIL FILTER

15421-035-010

$3.80

15

CLAMP, OVERFLOW PIPE

16236-045-010

$4.49

16

BOLT A, CYLINDER STUD (196MM)

90031-035-010

$5.46

17

BOLT B, CYLINDER STUD (188MM)

90032-035-000

$5.46

18

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.92

19

PIN A, DOWEL (10X14) This part replaces 90704-035-000.

94301-10140

$2.28

19

PIN A, DOWEL (10X14)

94301-10140

$2.28

20

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

21

SCREW, PAN (5X10)

93500-05010-0A

$1.49

22

SCREW, PAN (6X16)

93500-06016-0A

$1.49

23

SCREW, PAN (6X22)

93500-06022-0A

$1.49

24

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

25

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

26

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
