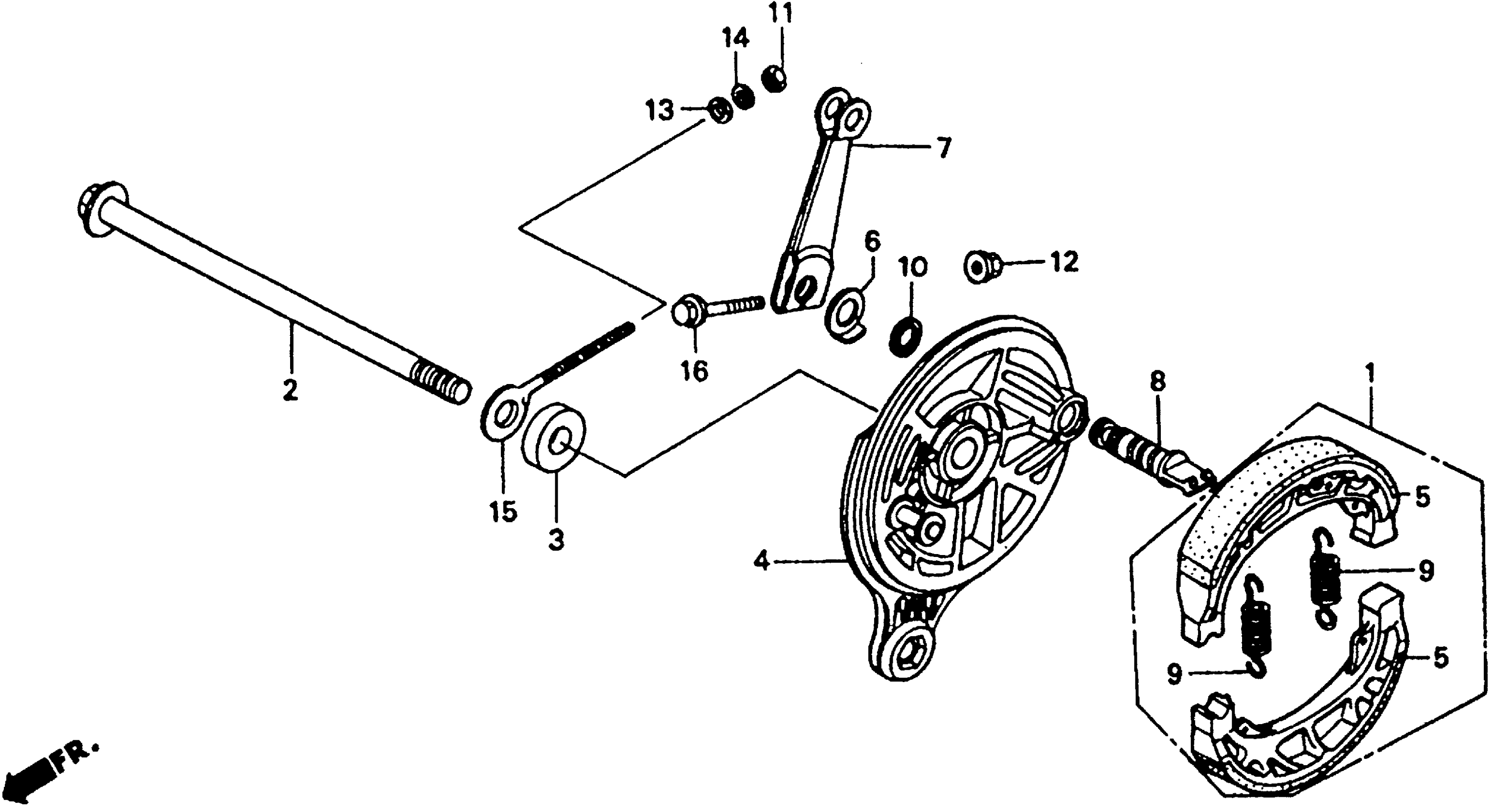

Honda CT70A (92) MOTORCYCLE, JPN, VIN# JH2DB010-NK100001 TO JH2DB010-NK101762 REAR BRAKE PANEL Diagram

SHOE KIT, BRAKE

06430-KS3-921

Unavailable

AXLE, RR. WHEEL

42301-126-850

Unavailable

COLLAR, RR. BRAKE PANEL SIDE

42313-098-000

$6.39

PANEL, RR. BRAKE *NH196* (ROSS WHITE)

43100-126-721ZB

Unavailable

INDICATOR, RR. BRAKE

43145-098-860

Unavailable

ARM, RR. BRAKE

43410-GAN-670

Unavailable

CAM, FR. BRAKE

45131-400-020

Unavailable

SPRING, BRAKE SHOE

45133-028-000

$2.03

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

ADJUSTER S, R. CHAIN

95014-10010

$4.53

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
