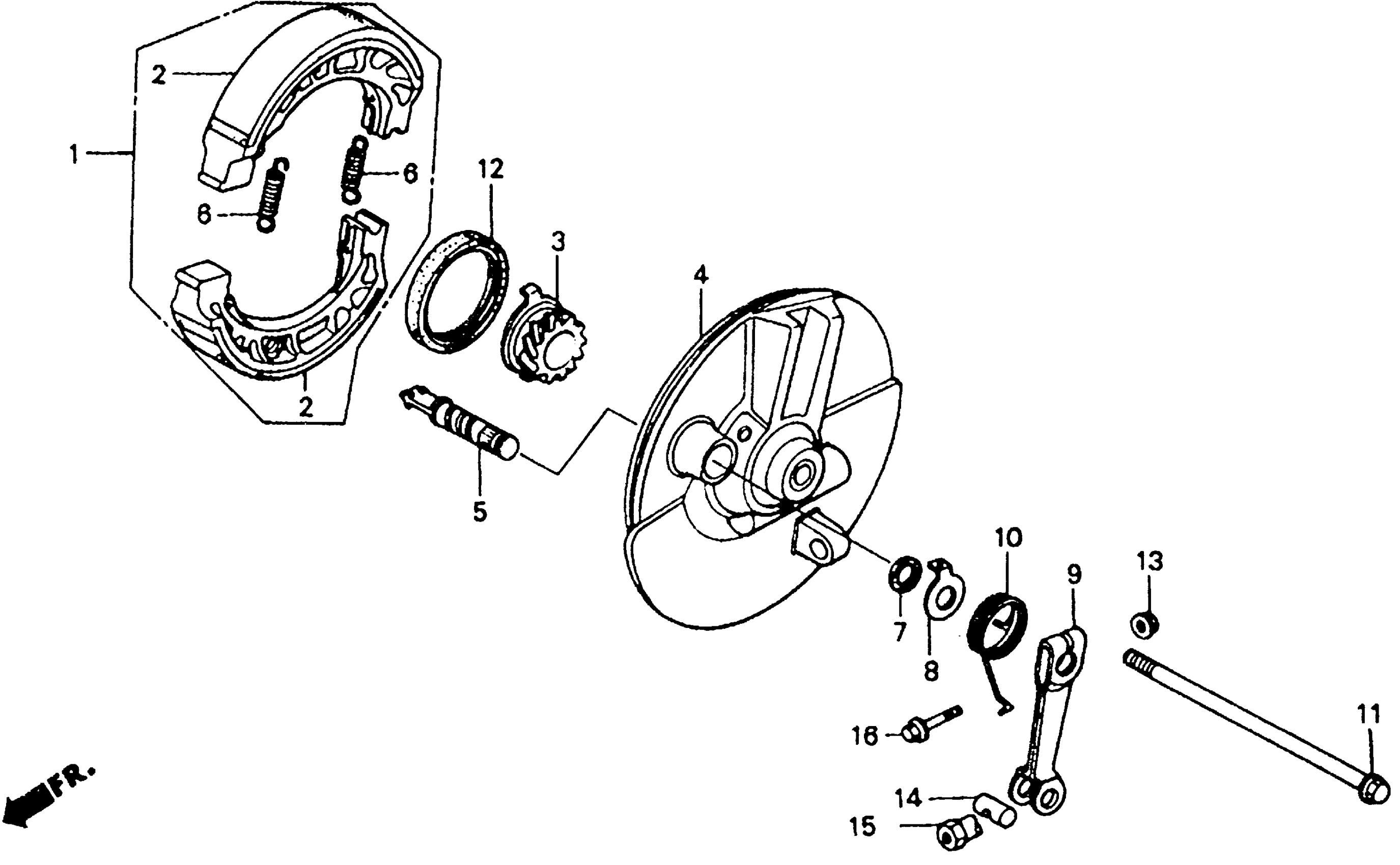

Honda CT70A (91) MOTORCYCLE, JPN, VIN# JH2DB010-MS000005 TO JH2DB010-MS002310 FRONT BRAKE PANEL Diagram

SHOE KIT, BRAKE

06430-KS3-921

Unavailable

SHOE KIT, BRAKE

06430-KS3-921

Unavailable

SHOE KIT, BRAKE This part replaces 43120-KS3-922.

06430-KS3-921

Unavailable

GEAR, SPEEDOMETER

44804-098-950

Unavailable

SUB-PANEL, FR. *NH196* (ROSS WHITE) (NOT AVAILABLE)

45010-GAN-305ZA

Unavailable

CAM, FR. BRAKE

45131-400-020

Unavailable

SPRING, BRAKE SHOE

45133-028-000

$2.03

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

INDICATOR, FR. BRAKE

45145-126-900

Unavailable

ARM, FR. BRAKE

45410-GAN-670

Unavailable

SPRING, BRAKE ARM RETURN

45435-GB2-720

Unavailable

BOLT, SWINGARM PIVOT

90121-GS3-000

Unavailable

DUST SEAL (47X57X7) (ARAI) This part replaces 91251-GN5-902.

91251-GN5-901

Unavailable

DUST SEAL (47X57X7) (ARAI)

91251-GN5-901

Unavailable

NUT, FLANGE (6MM)

94050-06000

$1.49

JOINT B, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
