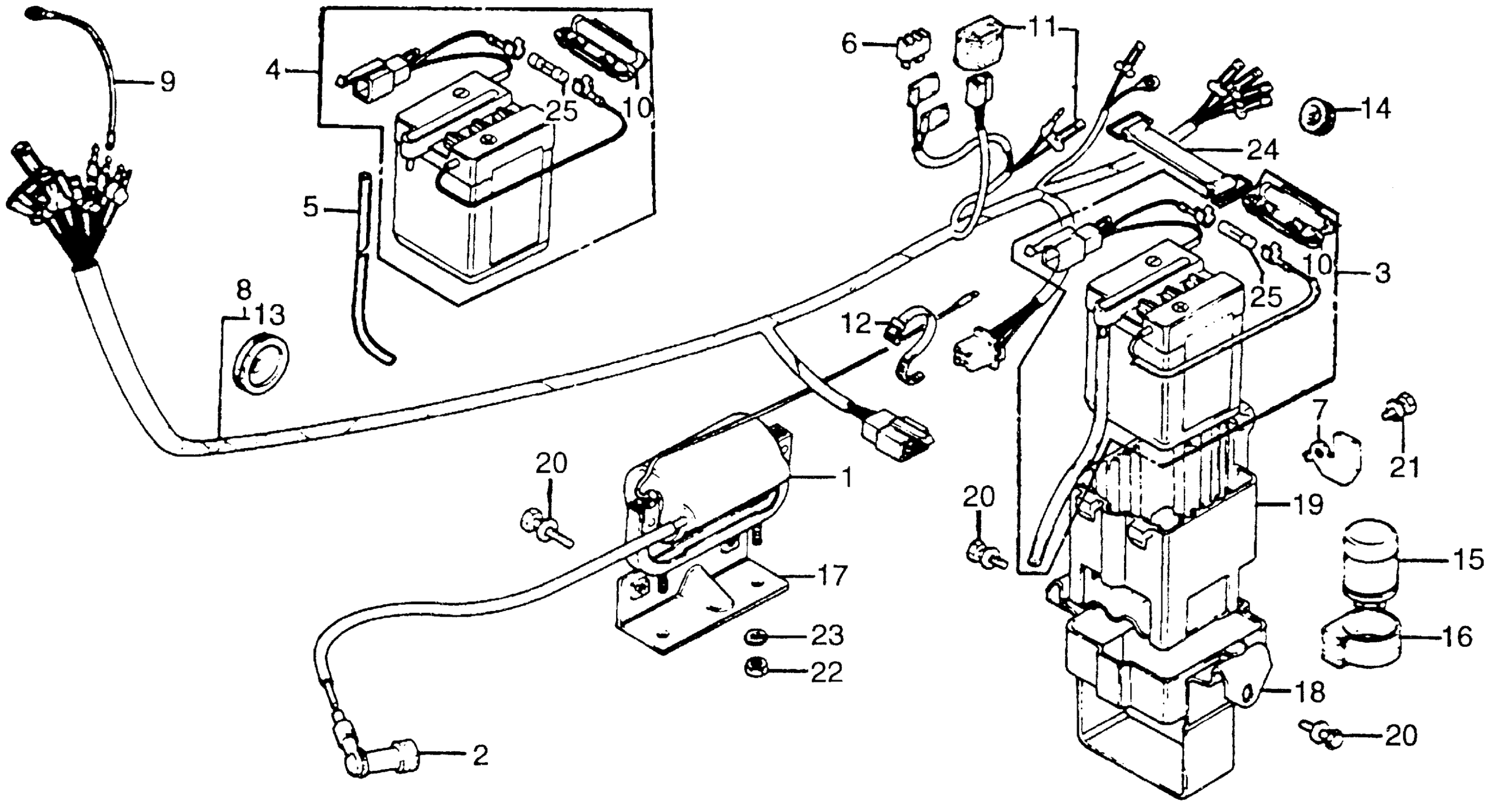

Honda CT70A (82) TRAIL 70, JPN, VIN# JH2DD010-CS300007 TO JH2DD010-CS300007 WIRE HARNESS + IGNITION COIL + BATTERY Diagram

#

Description
Price

1

COIL, IGNITION

30530-126-921

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

4

BATTERY (6N4-2A-6) This part replaces 31500-126-771.

31500-126-771AH

Unavailable

4

BATTERY (6N4-2A-6) This part replaces 31500-126-777.

31500-126-771AH

Unavailable

4

BATTERY (6N4-2A-6) This part replaces 31500-147-971.

31500-126-771AH

Unavailable

5

TUBE, BATTERY BREATHER (NOT AVAILABLE)

31502-126-870

Unavailable

6

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

6

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

7

STAY, RECTIFIER (NOT AVAILABLE)

31705-098-950

Unavailable

8

WIRE HARNESS (NOT AVAILABLE)

32100-126-770

Unavailable

9

WIRE, GROUND (NOT AVAILABLE)

32105-149-000

Unavailable

10

CASE, FUSE CONNECTOR

32111-230-000

$4.28

11

HOLDER, CONNECTOR (NOT AVAILABLE)

32135-124-300

Unavailable

12

BAND B1, CABLE

32161-404-000

$2.23

13

GROMMET, WIRE HARNESS

32984-098-000

$5.73

14

GROMMET B, TUBE

36038-657-000

Unavailable

15

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-004.

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

16

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

17

BRACKET, IGNITION COIL (NOT AVAILABLE)

50197-126-720

Unavailable

18

BOX, BATTERY (NOT AVAILABLE)

50325-126-870

Unavailable

19

RUBBER, BATTERY (NOT AVAILABLE)

50326-126-870

Unavailable

20

BOLT-WASHER (6X12)

93401-06012-00

$1.55

20

BOLT-WASHER (6X12) This part replaces 93491-06012-00.

93401-06012-00

$1.55

21

BOLT-WASHER (6X10)

93402-06010-00

$1.67

21

BOLT-WASHER (6X10) This part replaces 93412-06010-00.

93402-06010-00

$1.67

21

BOLT-WASHER (6X10) This part replaces 93492-06010-00.

93402-06010-00

$1.67

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

WASHER, SPRING (6MM)

94111-06000

$1.49

24

BAND B1, BATTERY This part replaces 95012-12000.

95012-12001

$5.90

24

BAND B1, BATTERY

95012-12001

$5.90

25

FUSE A (10A)

98200-11000

$1.80
