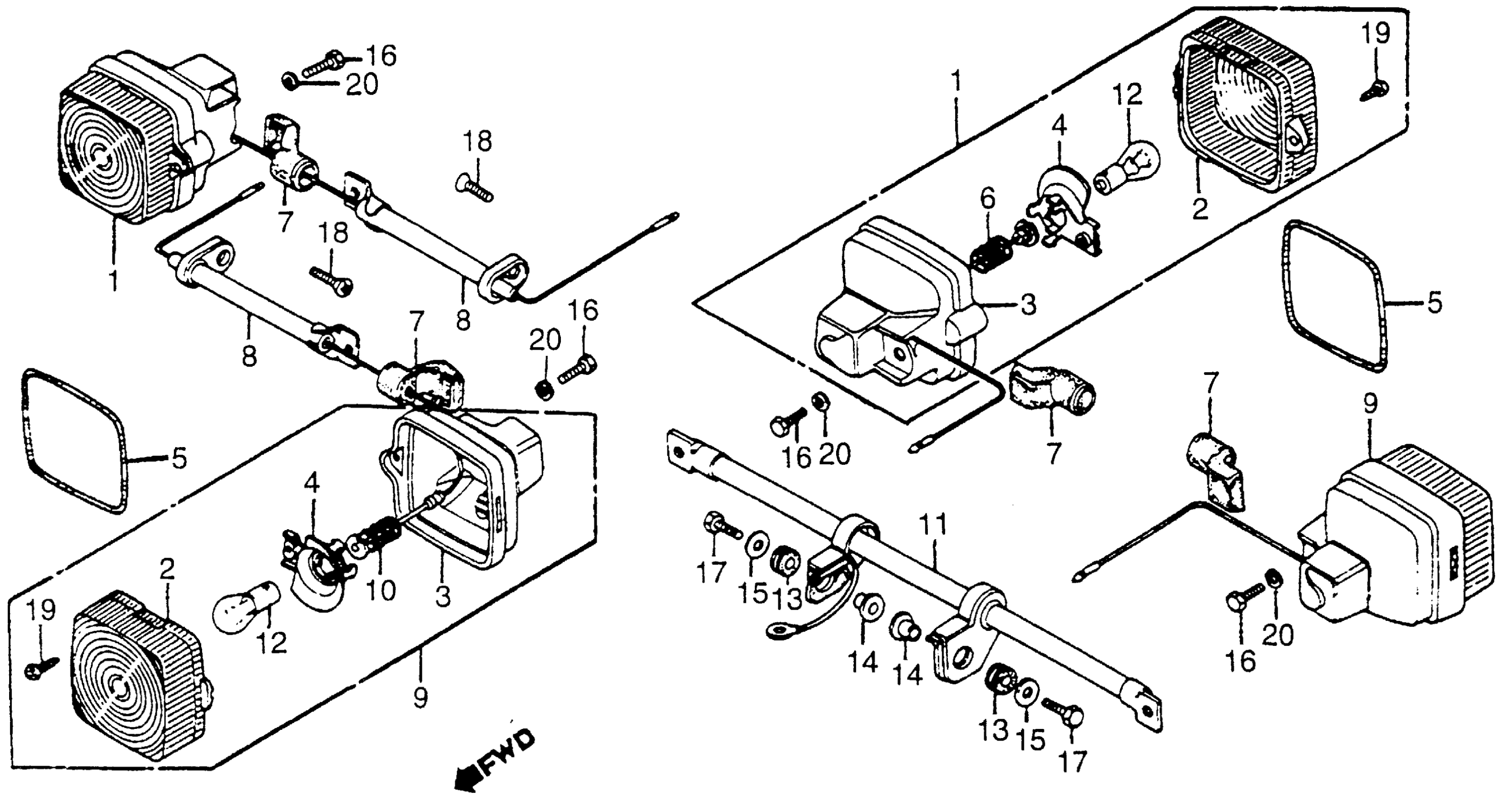

Honda CT70A (82) TRAIL 70, JPN, VIN# JH2DD010-CS300007 TO JH2DD010-CS300007 TURN SIGNAL 81-82 Diagram

TURN SIGNAL ASSY., R. FR.

33400-174-406

Unavailable

TURN SIGNAL ASSY., R. FR. This part replaces 33400-174-771.

33400-174-406

Unavailable

TURN SIGNAL ASSY., R. FR. This part replaces 33400-174-772.

33400-174-406

Unavailable

LENS, TURN SIGNAL This part replaces 33402-195-013.

33402-195-023

$8.74

LENS, TURN SIGNAL

33402-195-023

$8.74

BASE, TURN SIGNAL This part replaces 33403-195-003.

33403-195-013

Unavailable

BASE, TURN SIGNAL

33403-195-013

Unavailable

REFLECTOR, TURN SIGNAL (NOT AVAILABLE)

33404-174-771

Unavailable

GASKET, TURN SIGNAL LENS | (Optional).

33407-166-611

$5.78

WIRE, R. TURN SIGNAL (STANLEY) (NOT AVAILABLE)

33410-166-013

Unavailable

COVER, TURN SIGNAL STAY

33425-174-770

$5.23

STAY, FR. TURN SIGNAL (NOT AVAILABLE)

33441-126-870

Unavailable

TURN SIGNAL ASSY., L. FR.

33400-174-406

Unavailable

TURN SIGNAL ASSY., R. FR. This part replaces 33450-174-771.

33400-174-406

Unavailable

TURN SIGNAL ASSY., R. FR. This part replaces 33450-174-772.

33400-174-406

Unavailable

WIRE, L. TURN SIGNAL (STANLEY) (NOT AVAILABLE)

33460-166-013

Unavailable

STAY, RR. TURN SIGNAL (NOT AVAILABLE)

33601-126-870

Unavailable

BULB, TURN SIGNAL (6V17W) (STANLEY)

34905-358-003

$5.42

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

WASHER, FR. COVER SETTING

90501-124-000

$3.74

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

SCREW, OVAL (6X16)

93700-06016-0A

$1.49

SCREW, TAPPING (4X16)

93901-14480

Unavailable

WASHER, SPRING (5MM)

94111-05000

$1.49
