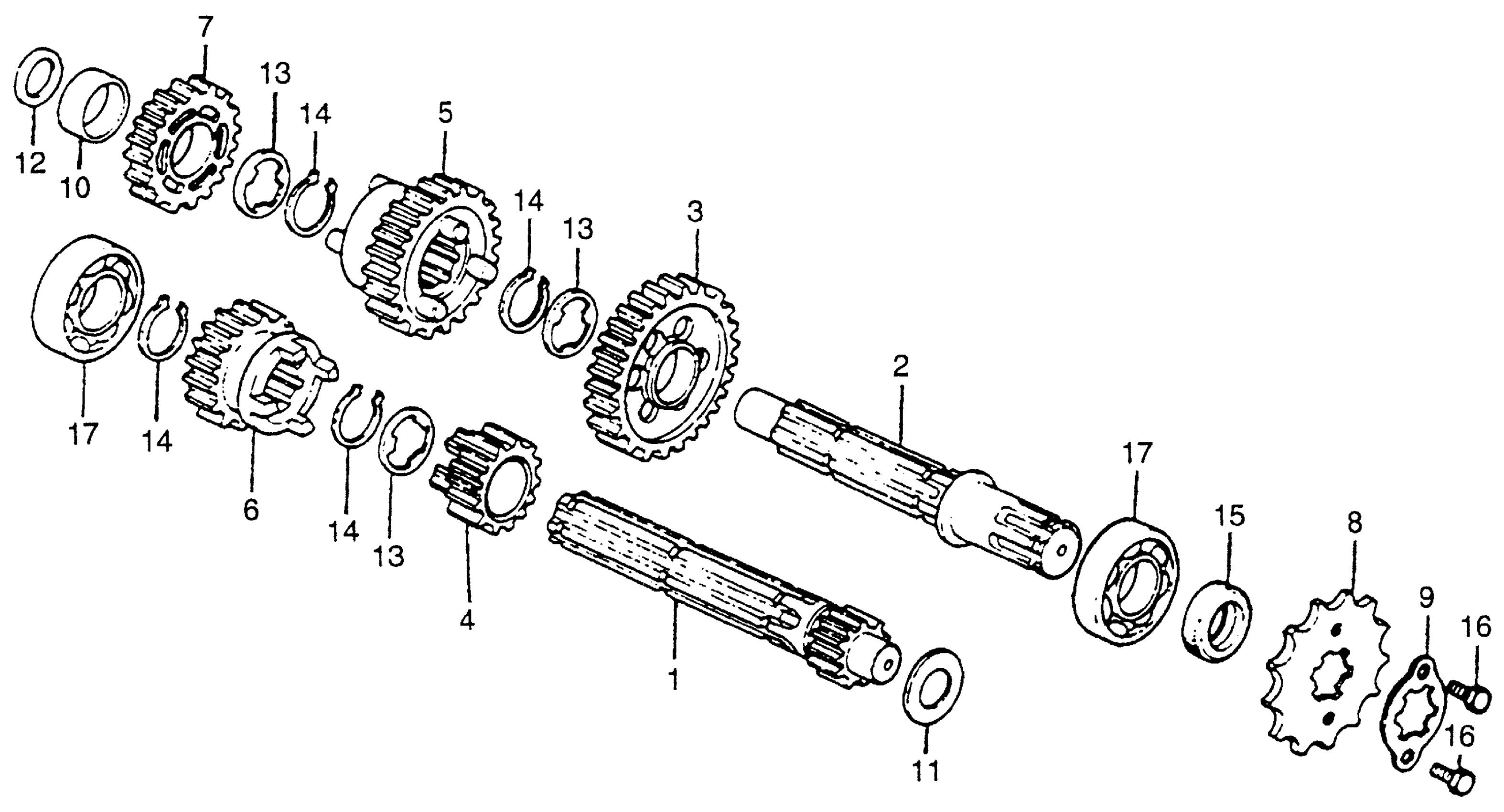

Honda CT70A (82) TRAIL 70, JPN, VIN# JH2DD010-CS300007 TO JH2DD010-CS300007 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION (11T)

23211-041-020

Unavailable

COUNTERSHAFT, TRANSMISSION This part replaces 23221-041-040.

23221-041-050

Unavailable

COUNTERSHAFT, TRANSMISSION

23221-041-050

Unavailable

GEAR, COUNTERSHAFT LOW (36T) (NOT AVAILABLE)

23421-086-010

Unavailable

GEAR, MAINSHAFT SECOND (18T)

23431-040-070

Unavailable

GEAR, COUNTERSHAFT SECOND (31T)

23441-086-010

Unavailable

GEAR, MAINSHAFT THIRD (21T)

23471-041-050

Unavailable

GEAR, COUNTERSHAFT THIRD (25T)

23481-086-010

Unavailable

SPROCKET, DRIVE (15T)

23800-098-000

$19.05

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.64

COLLAR, GEAR

23911-041-020

Unavailable

WASHER, THRUST (14MM)

90451-121-000

$1.87

WASHER, THRUST (13.5MM)

90451-141-000

$12.84

WASHER, SPLINE (17MM)

90461-035-000

$2.57

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

OIL SEAL (17X29X5) (NOK)

91203-035-005

$8.91

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
