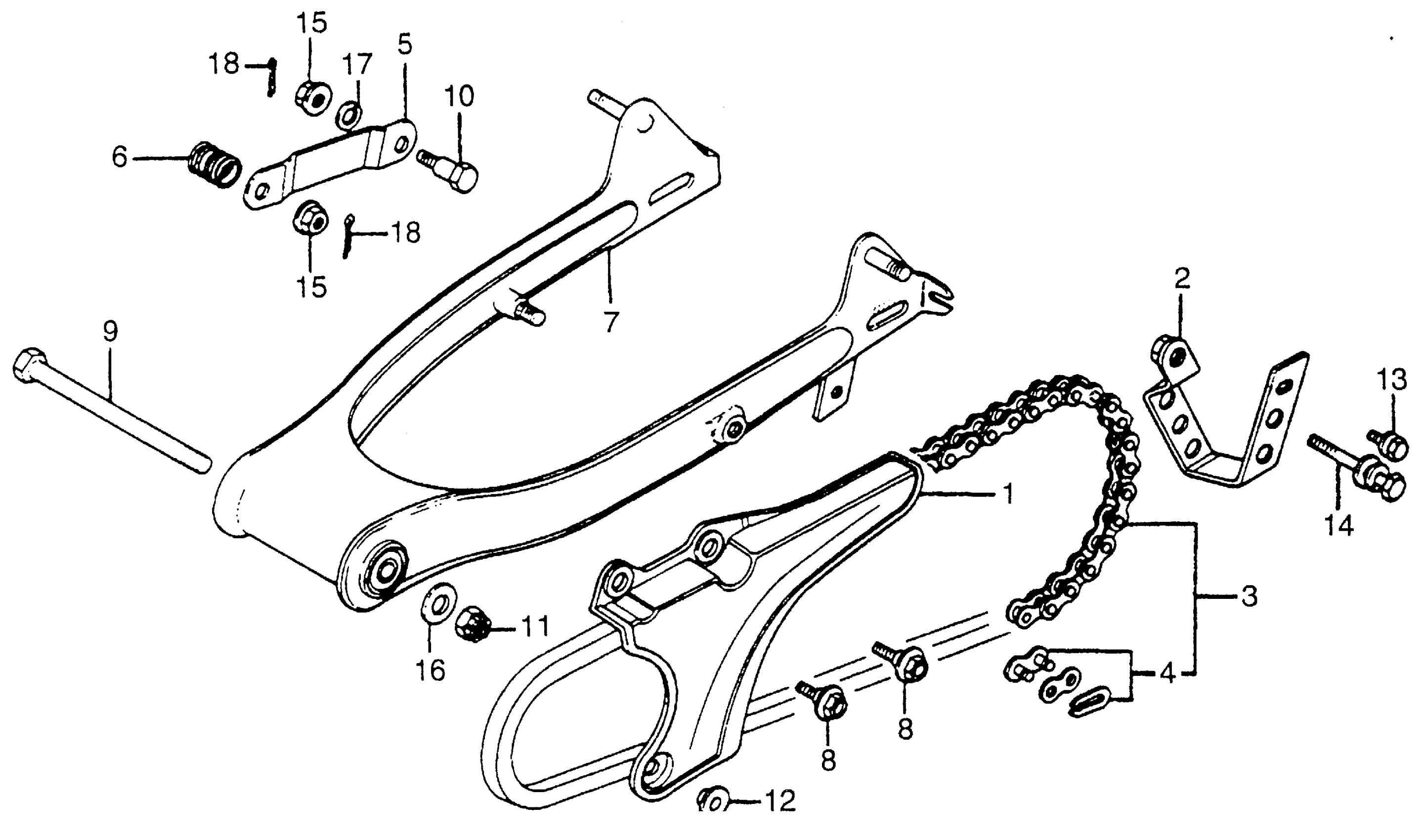

Honda CT70A (82) TRAIL 70, JPN, VIN# JH2DD010-CS300007 TO JH2DD010-CS300007 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *R23* (TAHITIAN RED) (NOT AVAILABLE)

40510-125-770ZC

Unavailable

2

GUIDE, CHAIN (NOT AVAILABLE)

40520-126-770

Unavailable

3

CHAIN, DRIVE

405W3-GB2-505

Unavailable

3

CHAIN, DRIVE This part replaces 40530-GB3-722.

405W3-GB2-505

Unavailable

3

CHAIN, DRIVE This part replaces 40530-098-971.

405W3-GB2-505

Unavailable

3

CHAIN, DRIVE This part replaces 40530-098-972.

405W3-GB2-505

Unavailable

3

CHAIN, DRIVE This part replaces 40530-098-973.

405W3-GB2-505

Unavailable

3

CHAIN, DRIVE This part replaces 40530-098-974.

405W3-GB2-505

Unavailable

4

MASTER LINK (DAIDO)

40531-098-003

$3.74

4

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

5

ARM, RR. BRAKE STOPPER

43431-124-740

Unavailable

6

SPRING, STOPPER ARM

43434-250-000

$2.00

7

SWINGARM ASSY. *R110* (MONZA RED) This part replaces 52000-126-770ZA.

52000-126-770ZB

Unavailable

7

SWINGARM ASSY. *R110* (MONZA RED)

52000-126-770ZB

Unavailable

8

BOLT, FLANGE (6MM)

90111-162-000

$2.89

9

BOLT, SWINGARM PIVOT

90121-098-970

Unavailable

10

BOLT A, BRAKE STOPPER

92811-10000

$2.92

11

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

12

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

13

BOLT-WASHER (6X12)

93401-06012-00

$1.55

13

BOLT-WASHER (6X12) This part replaces 93491-06012-00.

93401-06012-00

$1.55

14

BOLT-WASHER (8X40) (NOT AVAILABLE) This part replaces 93493-08040-00.

93483-08040-00

Unavailable

15

NUT, FLANGE (8MM)

94050-08000

$1.49

16

WASHER, PLAIN (10MM)

94101-10000

$1.49

17

WASHER, SPRING (8MM)

94111-10000

$1.49

18

PIN, COTTER (2.0X15)

94201-20150

$1.49
