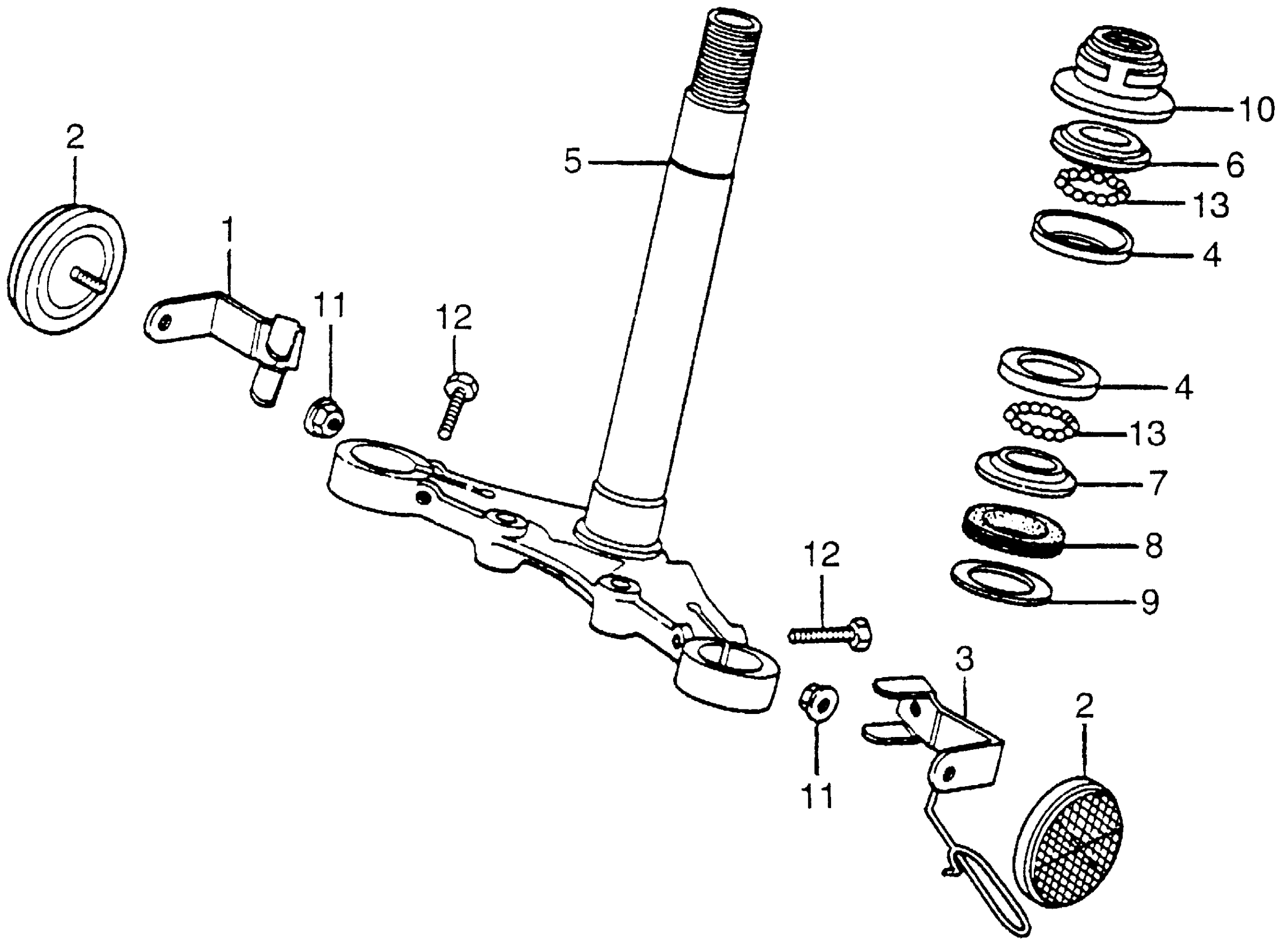

Honda CT70A (82) TRAIL 70, JPN, VIN# JH2DD010-CS300007 TO JH2DD010-CS300007 STEERING STEM Diagram

STAY, FR. REFLEX REFLECTOR

33740-126-770

Unavailable

REFLECTOR, FR. REFLEX

33741-102-870

$35.84

REFLECTOR, FR. REFLEX This part replaces 33741-428-671.

33741-102-870

$35.84

STAY, L. FR. REFLEX REFLECTOR (NOT AVAILABLE)

33750-126-770

Unavailable

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

RACE, STEERING TOP BALL

50301-041-010

$12.39

STEM, STEERING *NH1* (BLACK)

53200-126-930ZF

Unavailable

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

THREAD, STEERING HEAD TOP

53220-098-670

$16.83

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, HEX. (8X28) (SOURCE: VINTAGE PARTS INC.)

95400-08028-00

Unavailable

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
