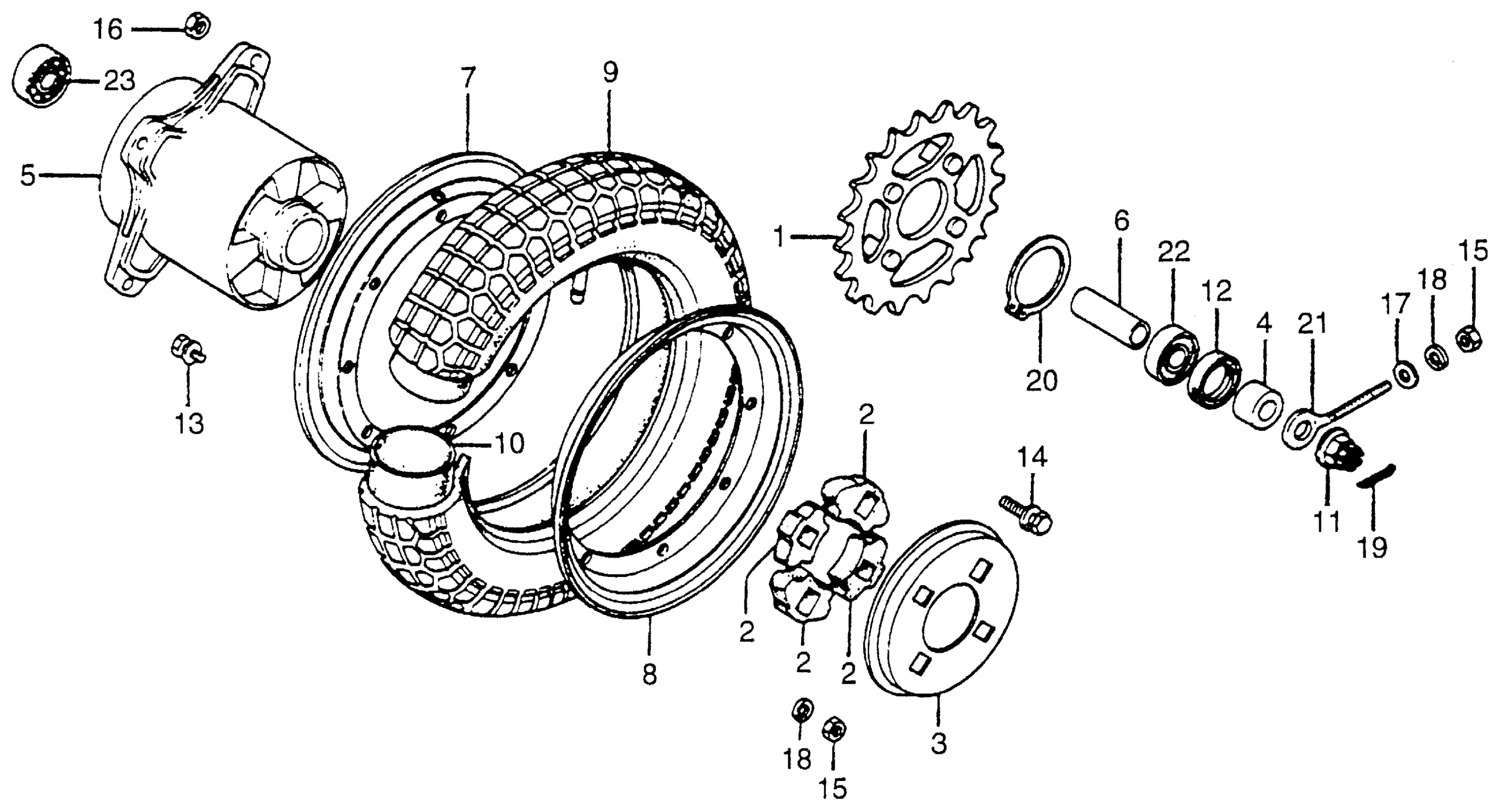

Honda CT70A (82) TRAIL 70, JPN, VIN# JH2DD010-CS300007 TO JH2DD010-CS300007 REAR WHEEL Diagram

SPROCKET, FINAL DRIVEN (35T)

41201-126-920

Unavailable

DAMPER, RR. WHEEL

41241-051-000

$7.31

COVER, RR. WHEEL DAMPER

41245-051-000

$4.79

COLLAR, RR. WHEEL SIDE

42304-098-000

$6.14

HUB, RR. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42601-098-010AU.

42601-098-010ZB

Unavailable

HUB, RR. WHEEL *NH35M* (CLOUD SILVER METALLIC)

42601-098-010ZB

Unavailable

COLLAR, RR. AXLE DISTANCE

42620-098-000

Unavailable

RIM, R. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC)

42701-098-853ZA

Unavailable

RIM, R. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC) This part replaces 42701-098-854ZA.

42701-098-853ZA

Unavailable

RIM, L. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC)

42702-098-853ZA

Unavailable

RIM, L. WHEEL *NH35M* (YUNO) (CLOUD SILVER METALLIC) This part replaces 42702-098-854ZA.

42702-098-853ZA

Unavailable

TIRE, RR. (4.00-10) (BS) (NOT AVAILABLE)

42711-098-951

Unavailable

TIRE, RR. (4.00-10) (NITTO)

42711-098-952

Unavailable

TUBE, WHEEL (3.50-10) (BS) This part replaces 08400-09800.

42712-098-691

Unavailable

TUBE, TIRE (3.50-10) (INOUE) This part replaces 42712-GC8-003.

42712-GC8-005

Unavailable

TUBE, TIRE (3.50-10) (INOUE) This part replaces 42712-GC8-004.

42712-GC8-005

Unavailable

TUBE, TIRE (3.50-10) (INOUE)

42712-GC8-005

Unavailable

TUBE, TIRE (3.50-10) (INOUE) This part replaces 42712-GV4-904.

42712-GC8-005

Unavailable

TUBE, WHEEL (3.50-10) (BS) This part replaces 42712-098-000.

42712-098-691

Unavailable

TUBE, WHEEL (3.50-10) (BS) This part replaces 42712-098-003.

42712-098-691

Unavailable

TUBE, WHEEL (3.50-10) (BS) This part replaces 42712-098-006.

42712-098-691

Unavailable

TUBE, WHEEL (3.50-10) (BS)

42712-098-691

Unavailable

NUT, AXLE (12MM)

90305-169-000

$6.28

OIL SEAL (26X37X6)

90753-051-003

$7.66

OIL SEAL (26X37X6) This part replaces 90753-051-005.

90753-051-003

$7.66

BOLT-WASHER (6X12)

93401-06012-00

$1.55

BOLT-WASHER (6X12) This part replaces 93491-06012-00.

93401-06012-00

$1.55

BOLT-WASHER (8X25) (SOURCE: VINTAGE PARTS INC.)

93402-08025-00

Unavailable

BOLT-WASHER (8X25) (SOURCE: VINTAGE PARTS INC.) This part replaces 93492-08025-00.

93402-08025-00

Unavailable

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, COTTER (3.0X45)

94201-30450

$1.49

CIRCLIP (OUTER) (50MM)

94511-50000

$2.25

ADJUSTER S, R. CHAIN

95014-10010

$4.53

BEARING, RADIAL BALL (6301U) This part replaces 96100-63010.

96140-63010-10

$14.84

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84
