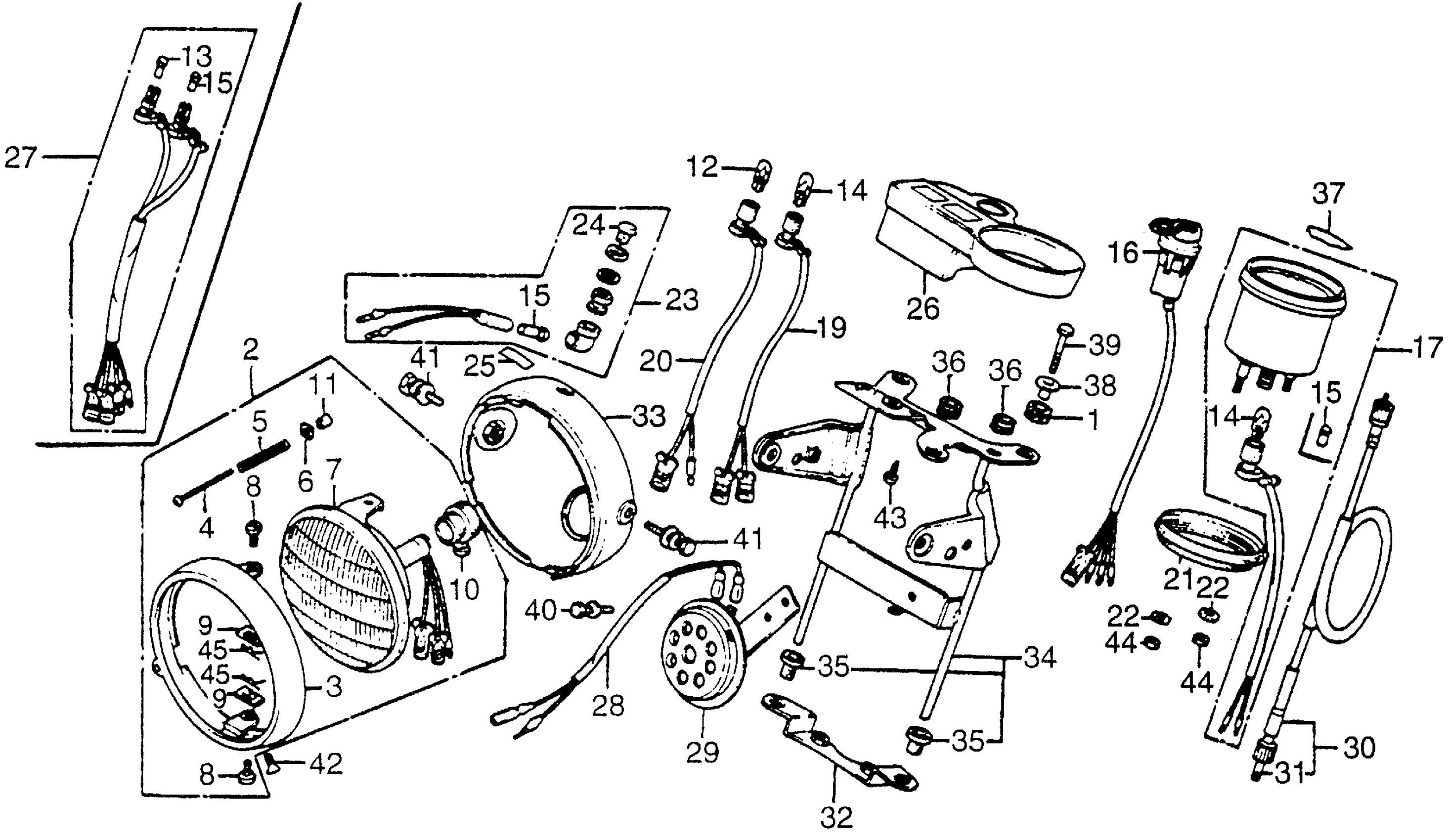

Honda CT70A (82) TRAIL 70, JPN, VIN# JH2DD010-CS300007 TO JH2DD010-CS300007 HEADLIGHT + SPEEDOMETER + HORN Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

HEADLIGHT ASSY. (6V15/15W)

33100-111-671

Unavailable

3

RIM, HEADLIGHT (NOT AVAILABLE)

33101-111-671

Unavailable

4

SCREW, HEADLIGHT BEAM ADJ. (STANLEY)

33102-041-003

$2.25

4

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) This part replaces 33102-041-670.

33102-041-003

$2.25

5

SPRING, HEADLIGHT SETTING

33107-030-003

$2.54

6

NUT, BEAM ADJ.

33117-041-003

$1.95

7

HEADLIGHT UNIT

33120-111-671

Unavailable

8

SCREW, UNIT HOLDER

33125-292-670

Unavailable

9

NUT, UNIT HOLDER

33128-292-670

$2.94

10

COVER, RUBBER

33130-111-671

Unavailable

11

COVER, ADJUSTING SCREW

33136-111-671

$1.93

12

BULB, WEDGE BASE (6V3W) (STANLEY)

34902-GA7-008

$4.08

14

BULB, WEDGE BASE (6V1.7W) (STANLEY)

34908-GA7-008

$4.08

15

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

16

LOCK SET (NA USE ALT:35100-125-773)

35010-126-770

Unavailable

17

SPEEDOMETER ASSY. (MPH) (NOT AVAILABLE)

37200-126-960

Unavailable

18

SOCKET, ILLUMINATION

37224-126-771

Unavailable

19

SOCKET, TURN SIGNAL (NOT AVAILABLE)

37225-126-960

Unavailable

20

SOCKET, NEUTRAL (NOT AVAILABLE)

37226-126-960

Unavailable

21

RUBBER, METER RING

37305-149-000

Unavailable

22

WASHER, PLAIN (5.5MM)

37314-061-810

Unavailable

23

LAMP ASSY., BEAM PILOT (NOT AVAILABLE)

37550-329-680

Unavailable

24

LENS, BEAM PILOT (NOT AVAILABLE)

37551-329-680

Unavailable

25

LABEL, BEAM PILOT LAMP

37555-370-740

Unavailable

26

COVER, PILOT This part replaces 37601-165-008.

37601-165-018

Unavailable

26

COVER, PILOT

37601-165-018

Unavailable

28

SUB-WIRE, HORN (NOT AVAILABLE)

38105-115-000

Unavailable

29

HORN ASSY. (HIGH)

38110-GS3-013

Unavailable

29

HORN ASSY. (HIGH) This part replaces 38110-147-004.

38110-GS3-013

Unavailable

30

CABLE ASSY., SPEEDOMETER

44830-126-930

Unavailable

31

CABLE, SPEEDOMETER (INNER) (NOT AVAILABLE)

44831-126-930

Unavailable

32

PLATE, HEADLIGHT BRACKET SETTING (NOT AVAILABLE)

61110-126-770

Unavailable

33

CASE, HEADLIGHT *NH1* (BLACK) (NOT AVAILABLE)

61301-126-771ZA

Unavailable

34

BRACKET, HEADLIGHT CASE *NH1* (BLACK) (NOT AVAILABLE)

61311-126-770ZA

Unavailable

35

BOOT, HEADLIGHT BRACKET

61312-149-300

$2.56

36

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

37

LABEL, BREAK IN CAUTION

87523-413-710

Unavailable

38

COLLAR (6.2X12)

90501-425-000

$4.69

39

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

39

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

40

BOLT-WASHER (6X12)

93402-06012-00

$1.69

40

BOLT-WASHER (6X12) This part replaces 93492-06012-00.

93402-06012-00

$1.69

41

BOLT-WASHER (8X25)

93403-08025-00

Unavailable

41

BOLT-WASHER (8X25) This part replaces 93493-08025-00.

93403-08025-00

Unavailable

42

SCREW, OVAL (5X8) (SOURCE: VINTAGE PARTS INC.)

93700-05008-0B

Unavailable

42

SCREW, OVAL (5X8) (SOURCE: VINTAGE PARTS INC.) This part replaces 93700-05008-1B.

93700-05008-0B

Unavailable

43

SCREW, TAPPING (4X12)

93901-24380

$1.49

44

NUT, HEX. (5MM)

94001-05000-0S

$2.74

45

PIN, LOCK (5MM)

94251-05000

$1.49
