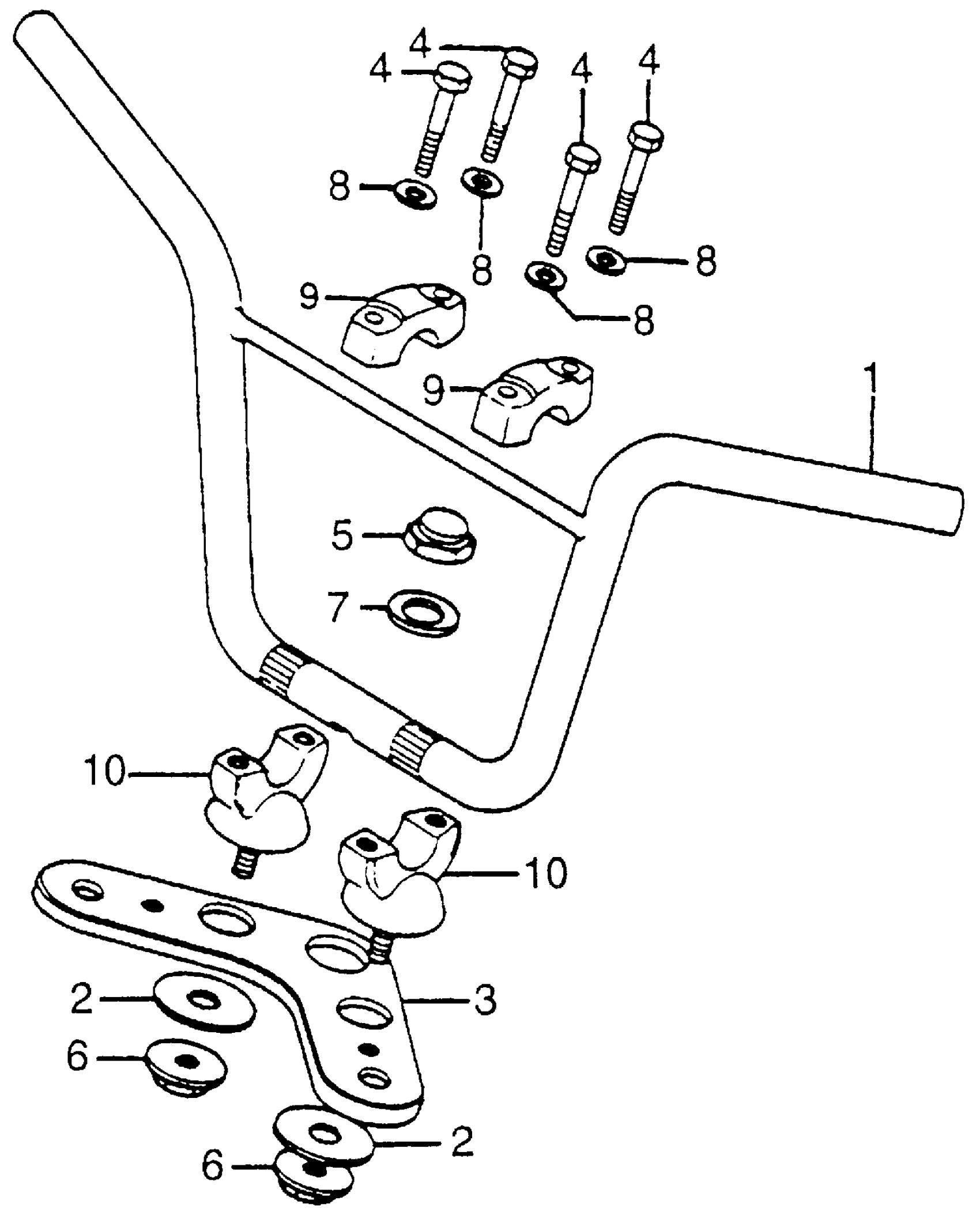

Honda CT70A (82) TRAIL 70, JPN, VIN# JH2DD010-CS300007 TO JH2DD010-CS300007 HANDLEBAR + TOP BRIDGE Diagram

HANDLEBAR (NOT AVAILABLE)

53100-126-770

Unavailable

SEAT, HANDLE RUBBER (NOT AVAILABLE)

53135-028-000

Unavailable

BRIDGE, FORK TOP *NH105* (MAT BLACK)

53231-126-770ZA

Unavailable

BOLT, HEX. (6X28)

90117-065-000

$2.43

NUT, STEERING STEM

90304-159-000

$6.71

NUT, HEX. (10MM)

90354-115-000

$3.52

WASHER, STEERING STEM

90503-051-870

$2.62

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM)

94101-06800

Unavailable

HOLDER A1, HANDLEBAR (UPPER) This part replaces 95014-21100.

95014-21101

$6.02

HOLDER A1, HANDLEBAR (UPPER)

95014-21101

$6.02

HOLDER B1, HANDLEBAR

95014-32100

$12.01
