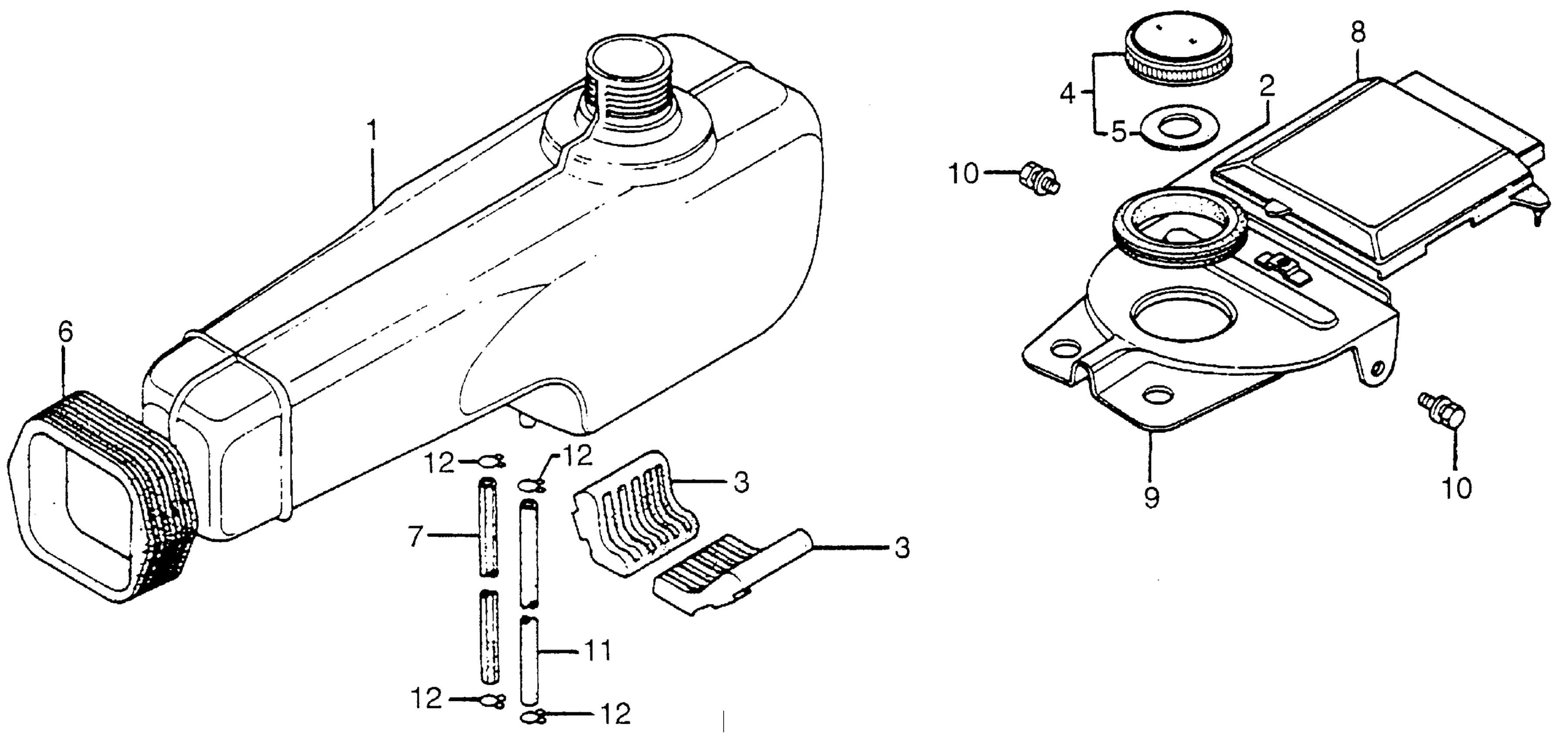

Honda CT70A (82) TRAIL 70, JPN, VIN# JH2DD010-CS300007 TO JH2DD010-CS300007 FUEL TANK Diagram

TANK, FUEL This part replaces 17500-098-020B.

17500-098-030

Unavailable

TANK, FUEL

17500-098-030

Unavailable

GASKET, FUEL FILLER NECK

17512-086-010

$7.05

PAD, FUEL TANK

17611-098-310

$6.36

CAP, FUEL FILLER This part replaces 17620-096-702.

17620-171-020

Unavailable

CAP, FUEL FILLER This part replaces 17620-171-000.

17620-171-020

Unavailable

CAP, FUEL FILLER This part replaces 17620-171-010.

17620-171-020

Unavailable

GASKET This part replaces 17631-096-700.

17631-096-702

$2.47

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

BAND, FUEL TANK SETTING

17670-098-010

Unavailable

TUBE, RESERVE (NOT AVAILABLE)

17681-126-760

Unavailable

LID, FRAME *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE) This part replaces 50661-098-940B.

50661-098-940ZA

Unavailable

LID, FRAME *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

50661-098-940ZA

Unavailable

LID, FUEL TANK

50665-098-030

Unavailable

LID, FUEL TANK This part replaces 50665-098-030B.

50665-098-030

Unavailable

LID, FUEL TANK This part replaces 50665-098-030ZA.

50665-098-030

Unavailable

BOLT-WASHER (6X12)

93401-06012-00

$1.55

BOLT-WASHER (6X12) This part replaces 93491-06012-00.

93401-06012-00

$1.55

BULK HOSE, FUEL (5.5X3000) (5.5X250)

95001-55003-60M

$47.32

CLIP, TUBE (B10)

95002-02100

$1.90
