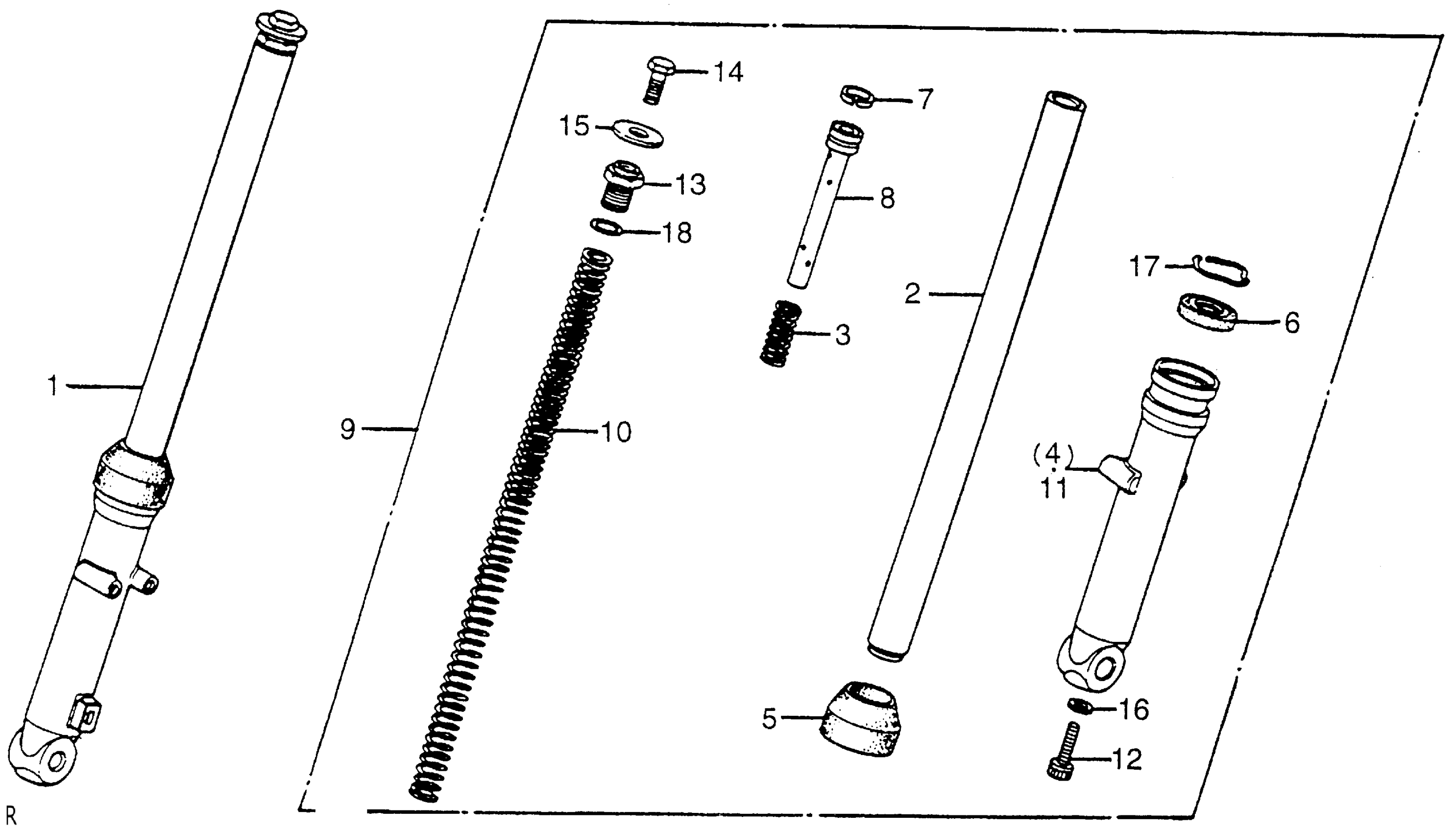

Honda CT70A (82) TRAIL 70, JPN, VIN# JH2DD010-CS300007 TO JH2DD010-CS300007 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-126-772

Unavailable

2

PIPE, FR. (NOT AVAILABLE)

51410-126-772

Unavailable

3

SPRING, REBOUND (NOT AVAILABLE)

51412-126-772

Unavailable

4

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51421-126-772

Unavailable

5

DUST SEAL, FR. FORK

51425-126-772

Unavailable

6

OIL SEAL, FR. FORK

51432-051-000

$13.38

7

RING, PISTON (NOT AVAILABLE)

51437-126-772

Unavailable

8

PIPE, SEAT (NOT AVAILABLE)

51470-126-772

Unavailable

9

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-126-772

Unavailable

10

SPRING, FR. FORK (NOT AVAILABLE)

51501-126-772

Unavailable

11

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE)

51521-126-772

Unavailable

12

BOLT, SOCKET (8MM)

90116-125-782

Unavailable

13

BOLT, FR. FORK (NOT AVAILABLE)

90123-126-772

Unavailable

14

BOLT, FLANGE (10X20) This part replaces 90151-449-000.

90130-126-900

$4.49

15

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

16

GASKET (SHOWA) This part replaces 90544-125-782.

90544-439-930

$2.13

16

GASKET

90544-439-930

$2.13

17

RING, OIL SEAL (NOT AVAILABLE)

90601-126-770

Unavailable

18

O-RING (13.8X2.4) This part replaces 91304-PL9-005.

91304-P69-000

$5.85

18

O-RING (13.8X2.4)

91304-P69-000

$5.85

18

O-RING (13.8X2.4) This part replaces 91356-126-772.

91304-P69-000

$5.85
