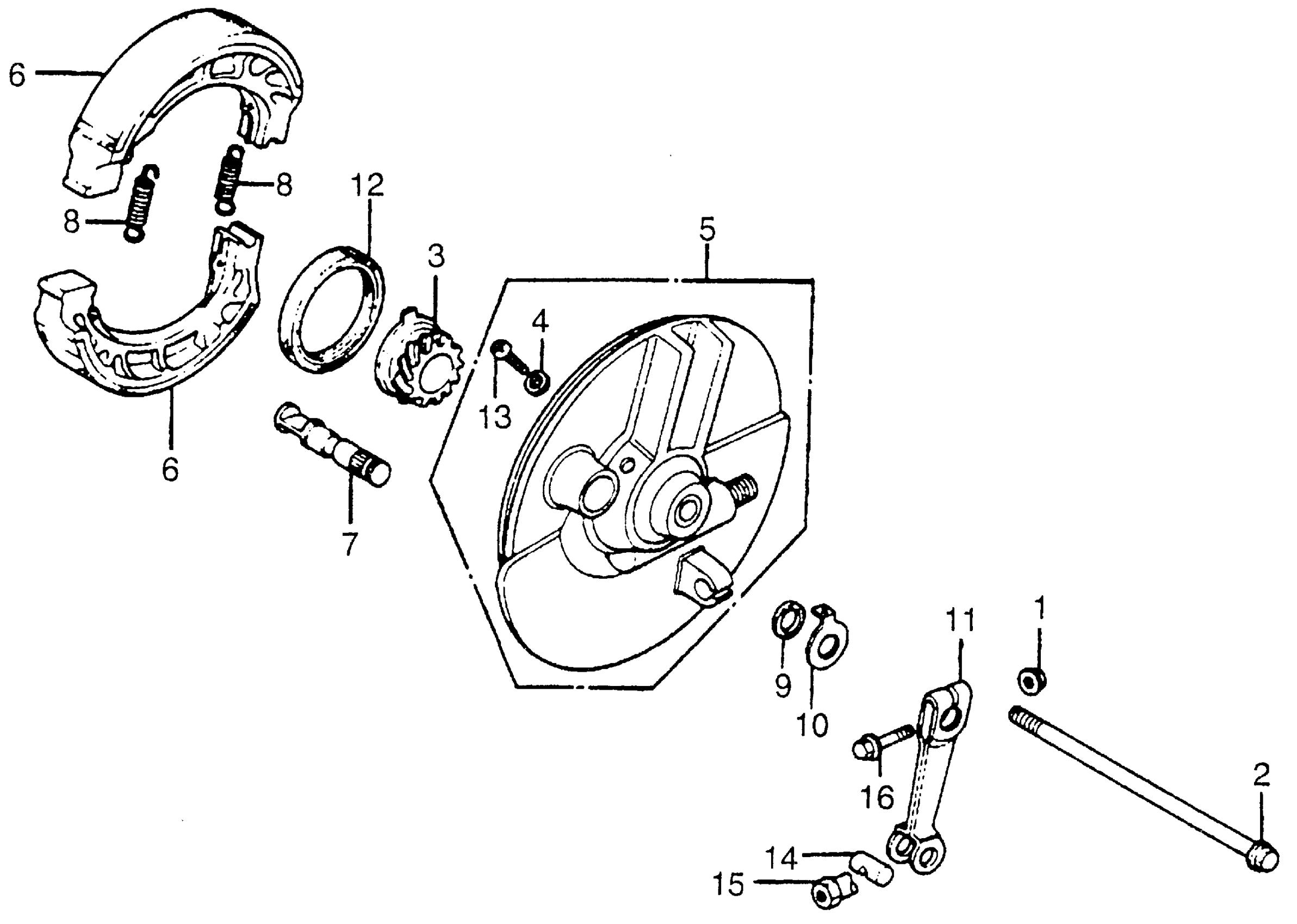

Honda CT70A (82) TRAIL 70, JPN, VIN# JH2DD010-CS300007 TO JH2DD010-CS300007 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 06450-096-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 451A2-096-305.

06450-178-932

$24.89

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

AXLE, RR. WHEEL This part replaces 42301-102-010.

42301-102-020

Unavailable

2

AXLE, RR. WHEEL

42301-102-020

Unavailable

3

GEAR, SPEEDOMETER

44804-098-950

Unavailable

5

PANEL, FR. BRAKE *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

45010-126-720ZA

Unavailable

6

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

6

SHOE SET, BRAKE (JB) This part replaces 45120-GAG-003.

06450-178-932

$24.89

6

SHOE SET, BRAKE (JB) This part replaces 45120-096-651.

06450-178-932

$24.89

6

SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NA USE ALT:451A2-096-305)

45120-096-652

Unavailable

7

CAM, FR. BRAKE

45131-400-020

Unavailable

8

SPRING, BRAKE SHOE

45133-028-000

$2.03

9

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

10

INDICATOR, FR. BRAKE (NOT AVAILABLE)

45145-098-860

Unavailable

11

ARM, FR. BRAKE (NOT AVAILABLE)

45410-098-860

Unavailable

12

OIL SEAL (47X58X7)

91251-030-003

Unavailable

12

OIL SEAL (47X58X7) This part replaces 91251-030-005.

91251-030-003

Unavailable

14

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

14

JOINT, BRAKE ARM

95015-32001

$1.49

15

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

16

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

16

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
