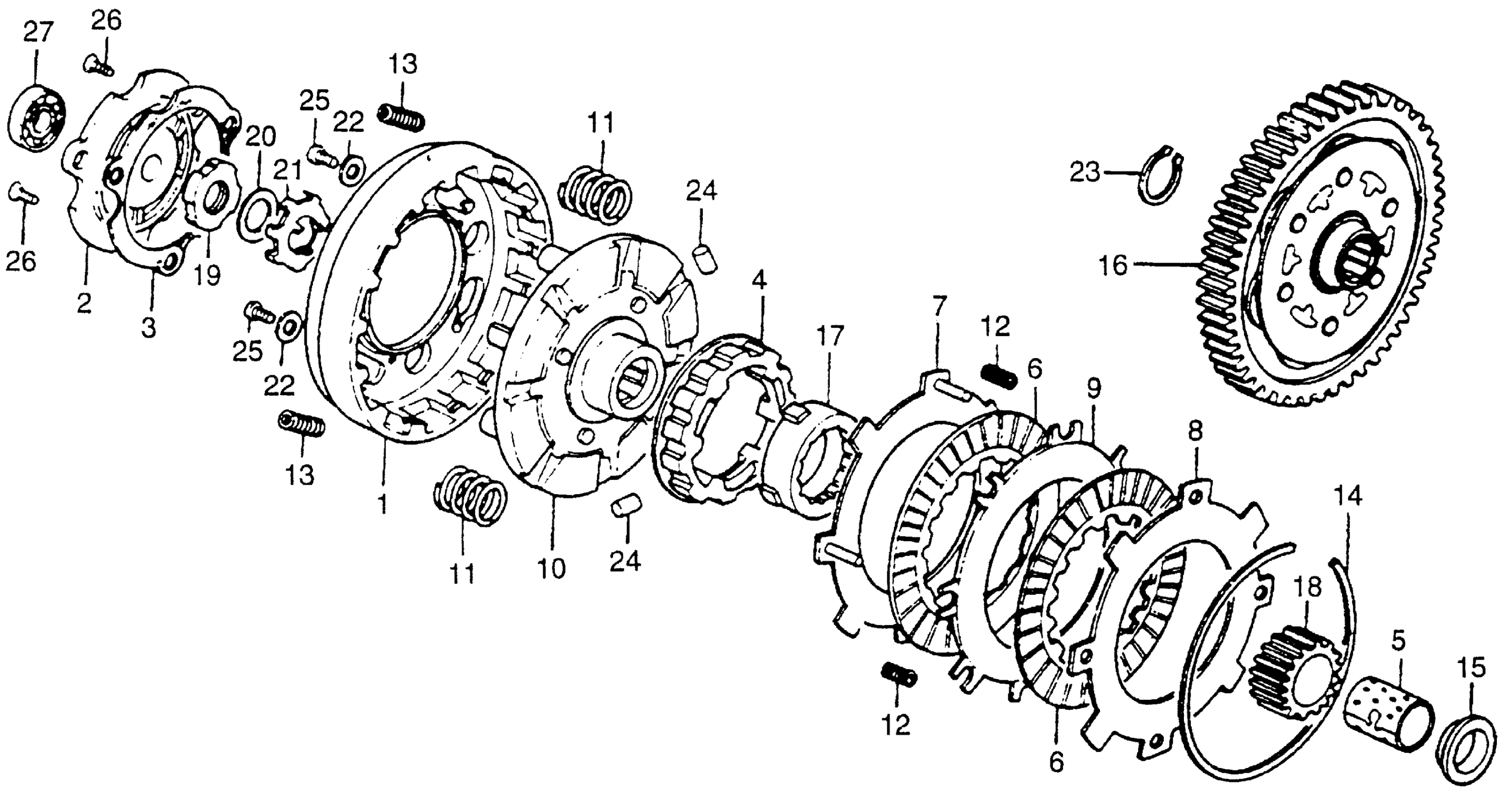

Honda CT70A (82) TRAIL 70, JPN, VIN# JH2DD010-CS300007 TO JH2DD010-CS300007 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22101-040-030

Unavailable

2

COVER, CLUTCH (OUTER)

22111-040-000

Unavailable

3

GASKET, CLUTCH COVER (OUTER) This part replaces 22119-040-000.

22119-040-010

$3.40

3

GASKET, CLUTCH COVER (OUTER)

22119-040-010

$3.40

4

CENTER, CLUTCH (17T)

22120-040-030

$72.13

5

GUIDE, CLUTCH CENTER

22131-035-030

$20.39

6

DISK A, CLUTCH FRICTION

22201-GW8-681

$10.04

6

DISK A, CLUTCH FRICTION This part replaces 22201-086-010.

22201-GW8-681

$10.04

6

DISK A, CLUTCH FRICTION This part replaces 22201-092-000.

22201-GW8-681

$10.04

6

DISK A, CLUTCH FRICTION This part replaces 22201-092-306.

22201-GW8-681

$10.04

7

PLATE A, CLUTCH

22310-GB0-910

$14.59

8

PLATE B, CLUTCH This part replaces 22321-041-000.

22321-046-020

$9.83

8

PLATE B, CLUTCH

22321-046-020

$9.83

9

DISK B, CLUTCH FRICTION

22331-GW8-681

$10.04

9

DISK B, CLUTCH FRICTION This part replaces 22331-086-000.

22331-GW8-681

$10.04

9

DISK B, CLUTCH FRICTION This part replaces 22331-126-900.

22331-GW8-681

$10.04

10

PLATE, DRIVE

22351-086-020

Unavailable

11

SPRING, CLUTCH

22401-092-010

$3.77

12

SPRING, CLUTCH FREE

22411-092-010

$2.25

13

SPRING, CLUTCH DAMPER

22421-040-000

$2.03

14

SET-RING (101.5MM)

22901-001-000

$4.02

15

COLLAR (17MM)

22911-GB4-680

$6.74

15

COLLAR (17MM) This part replaces 22911-035-010.

22911-GB4-680

$6.74

16

GEAR, PRIMARY DRIVEN (69T) This part replaces 23110-086-020.

23110-086-030

$133.18

16

GEAR, PRIMARY DRIVEN (69T)

23110-086-030

$133.18

17

OUTER, DRIVE GEAR (17T)

23112-086-020

Unavailable

18

GEAR, PRIMARY DRIVE (17T)

23120-086-020

$48.48

19

NUT, LOCK (14MM) This part replaces 90231-087-000.

90231-087-010

$3.80

19

NUT, LOCK (14MM)

90231-087-010

$3.80

20

WASHER, LOCK (14MM)

90431-086-000

$3.03

21

WASHER B, LOCK

90432-086-000

$4.44

22

WASHER, STOPPER This part replaces 90483-040-000.

90483-041-000

$1.92

23

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

24

ROLLER (8X10)

91101-039-000

Unavailable

25

SCREW, PAN (5X10)

93500-05010-0A

$1.49

26

SCREW, FLAT (5X10)

93600-05010-0A

$1.49

27

BEARING, RADIAL BALL (6000) This part replaces 96100-60000.

96100-60000-00

$8.13

27

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
